Using Dbvisit Standby with Oracle Clusterware

Follow

Oracle Clusterware

There is a number of Linux operating systems that support the Oracle Database, and they are all excellent in their own right.  I have always favored using Oracle Linux and over the years it has become easier and easier to install and configure complex database configurations on Oracle Linux with minimum effort.  With Oracle Linux, you can get different levels of support and with these levels you get a number of extra options available to you at no additional cost (for these options), meaning if you, for example, pay for Oracle Linux basic or premier support you get Oracle Clusterware!  This is amazing software for you to use just because you have Oracle Linux paid support agreement (Basic or Premier), nice!
Now taking this into account, let's start thinking a little outside the box and getting a little more out of your investment.  There is a lot you can do here.  Many companies nowadays are looking at more highly available solutions, and with Oracle Linux and Oracle Clusterware, you have something extra now in your arsenal that you can use to help you achieve this. Using these two components to create a cluster configuration where shared storage is used to help you create an Active / Passive cluster for your application to run on… but why not use this for your Oracle Standard Edition 2 (SE2) database as well?  This is what I would like to explore more in this blog series.  How you can configure an Oracle Linux 7 cluster consisting out of two nodes using shared storage and Oracle Clusterware, then install the SE2 database software and create an Active / Passive cluster configuration where the database instance will only run on one node at a time.
It is, however, important to note that I am not talking about Oracle RAC or Oracle RAC One Node here - These are amazing technologies that will require Oracle Enterprise Edition in 19c onwards as Oracle RAC is no longer available as an option for the SE2 software set. In this blog series, I am specifically going to show you how you can enable a two-node cluster running for your SE2 database in an Active / Passive configuration.
Without getting into the details of the licensing, when you run Oracle SE2 you are allowed a maximum of two CPU sockets per server, and in this scenario we will use two servers each with two CPU sockets, but remember the database instance will only run on one of the servers in the cluster at any given point in time (in an “active/passive” configuration) - and based on licensing of data recovery environments as discussed in this document - http://www.oracle.com/us/corporate/pricing/data-recovery-licensing-070587.pdf, you are able to run the database instance on the second node in the cluster for a maximum of 10 days per year.  As always, please check your licensing with your Oracle account manager.
Now to add a little extra to the configuration - as I think everyone should always make sure they protect their databases against disaster; I will also in the last part of the series show you how you can configure Dbvisit Standby in this configuration - running as cluster resource, to help protect your primary database in case of disaster strikes.
In the examples I will make use of Oracle Clusterware 19c and Oracle 19c SE2 Database and configure it in an Active / Passive cluster where the single instance SE2 database is running on primary node 1, but in case of failure on that node the database will be failed over “as a cluster resource” to the second node in the cluster - this can be summarised in the following high-level diagram:

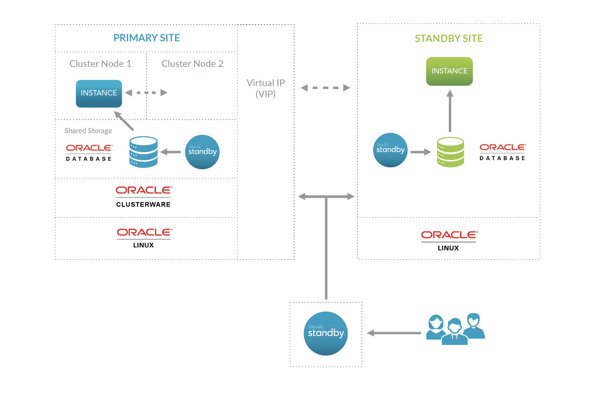

The blog series will cover the following topics:
  1. Configuration the Oracle Linux nodes using Oracle Linux 7
  2. Installing and configuration of the Oracle Clusterware - version 19c
  3. Configuration of Oracle ACFS (cluster filesystem)
  4. Installing the Oracle Database software - 19c SE2
  5. Creating a single instance database and adding it as a cluster resource
  6. Creating a Virtual IP that will be running on the “Active” node
  7. Installing Dbvisit Standby and adding it as cluster resources
  8. Creating a Standby Database on a 3rd server running Oracle Linux 7 with Oracle SE2 Database software installed


No before I get into the details - there are a few key requirements for this type of configuration I do need to mention:
  • Two Oracle Linux 7 (7.6) servers with latest updates applied
    • I will be using two Virtual Machines running VirtualBox
  • Shared Storage that is presented to both nodes
    • In VirtualBox you can add a disk to node 1, then make it “sharable” and add the same disk to node 2.  This works really well for small testing configurations and is not recommended for production.
  • Two network interfaces in each node:
    • Interface 1 - used for public
    • Interface 2 - used for private interconnect traffic as well as ASM
  • A DNS server
    • You ideally want to use a DNS server to add all the various IP addresses that are used by the cluster.
    • In my case, I just created a small BIND DNS server
  • In my test configuration, I will use the following IP ranges and these values are in my DNS server, but I also added them to my local /etc/hosts file.


10.0.2.21    oel7clus1.oraclekiwi.co.nz oel7clus1 #Primary Node 1
10.0.2.22    oel7clus2.oraclekiwi.co.nz oel7clus2 #Primary Node 2
10.0.2.23    oel7clus1-vip.oraclekiwi.co.nz oel7clus1-vip
10.0.2.24    oel7clus2-vip.oraclekiwi.co.nz oel7clus2-vip
# 10.0.2.25  oel7clus-scan.oraclekiwi.co.nz oel7clus-scan ## The SCAN details in DNS
# 10.0.2.26  oel7clus-scan.oraclekiwi.co.nz oel7clus-scan
# 10.0.2.27  oel7clus-scan.oraclekiwi.co.nz oel7clus-scan
10.0.2.28    oel7clus-dbvip.oraclekiwi.co.nz oel7clus-dbvip # Cluster IP for Dbvisit
10.0.2.29    oel7fs1.oraclekiwi.co.nz oel7fs1 # Standby Server


Step 1: Oracle Linux preparation

Now in my configuration, I used Oracle Linux 7 update 6.  I will not get into the details of installing Linux, but it really is easy and in most cases, you can just accept the defaults.
I do want to highlight that I used a 60GB disk and allocated 40G of the disk for /u01 filesystem, mainly as I use the /u01 filesystem a lot for various things and this is where I will configure Oracle Clusterware to run from.
I also make sure I assign enough memory and CPU to Virtual Machines.  In VirtualBox management settings I added 8GB of memory.
You can play with the CPU settings, but this varies depending on your CPU options, example if you have 1 CPU with 4 cored and hyper threading enabled you will get more available (8 virtual CPUs).
I would recommend for testing you set the value to at least 2 on each Virtual Machine.  For reference my disk layout after installation looked like the following:
root@oel7clus1 ~ : df -h
Filesystem             Size  Used Avail Use% Mounted on
devtmpfs               3.8G     0  3.8G   0% /dev
tmpfs                  3.8G     0  3.8G   0% /dev/shm
tmpfs                  3.8G   89M  3.7G   3% /run
tmpfs                  3.8G     0  3.8G   0% /sys/fs/cgroup
/dev/sda3              6.3G  3.6G  2.4G  61% /
tmpfs                  4.0G  4.0K  4.0G   1% /tmp
/dev/sda1              488M  279M  174M  62% /boot
/dev/mapper/oravg-u01   40G   49M   38G   1% /u01
tmpfs                  771M     0  771M   0% /run/user/0
tmpfs                  771M     0  771M   0% /run/user/1000
I always prefer to use role separation when installing Oracle Clusterware and Database software, so I will directly after installing my Virtual Machines, add the “oracle” and “grid” users.  This can easily be done by the following commands:
groupadd -g 501 oinstall
groupadd -g 502 dba
groupadd -g 503 oper
groupadd -g 504 asmadmin
groupadd -g 505 asmdba
groupadd -g 506 asmoper
groupadd -g 507 bkpdba
groupadd -g 508 dgdba
groupadd -g 509 kmdba
groupadd -g 510 racdba
useradd -m -g oinstall -G oinstall,dba,oper,asmadmin,asmdba,bkpdba,dgdba,kmdba -u 501 oracle
useradd -m -g oinstall -G oinstall,dba,asmadmin,asmdba,asmoper -u 502 grid
There are a few more configuration options required, but first, let's update all required software on the cluster nodes.
You should follow the recommendation of the Oracle Clusterware and Oracle Database installation documentation to make sure you have all the required operating system packages installed.
In this case, I took the easier way and based on past experience and installed the following via the yum package installer.
Please note that in this list I am actually installing a little bit extra, mainly as I tend to use some of these extra tools and why not just do it all at the same time and keep it simple.
So here is my list of options:
yum -y --enablerepo=ol7_latest,ol7_optional_latest,ol7_developer_EPEL install dkms ocfs2-tools-devel ocfs2-tools reflink btrfs-progs btrfs-progs-devel oracleasm-support kmod-oracleasm git rpmbuild patch bc binutils bzip2 bzip2-devel dos2unix gcc gcc-c++ glibc-static gzip libaio libaio-devel libgcc libstdc++ libstdc++-devel lsof make man man-pages net-tools nss-devel perl strace subversion sudo sysstat tar tree unix2dos unzip wget which zip zlib zlib-devel zlib-static gettext tcl tcl-devel openssh openssh-server xclock xhost psmisc xorg-x11-fonts* xorg-x11-server-Xvfb.x86_64 xterm libvncserver xorg-x11-server-devel avahi-libs tk libXtst gtk3 mesa-dri-drivers xorg-x11-utils screen bind-libs bind-utils compat-libcap1 compat-libstdc++-33 e2fsprogs-libs ethtool gssproxy keyutils ksh libaio-devel libbasicobjects libcollection libevent libini_config libnfsidmap libpath_utils libref_array libtirpc libverto-libevent mailx nfs-utils quota quota-nls rpcbind smartmontools tcp_wrappers gdb patch libnfs-utils nfs-utils dejavu*


Now that I have the above installed on each node, I make sure all is up to date by running “yum update” and then perform a reboot on each system.
The next steps I perform are the following and to make it easier the list is done below so that you can just copy and paste it - but please NOTE, test this first and do not just run this on production without making sure you understand what it does.
As I am just creating a TEST configuration, I will assign a basic password to the oracle and grid user as well as add “sudo” permission without requiring a password.
Also please note some of these values will need review for production environments and they are discussed in more detail in the online Oracle Database and Grid Infrastructure installation guides for Linux, so please make sure you review these prior to any production configurations.
cat >> /etc/pam.d/login <<EOF
session required pam_limits.so
EOF

echo 'oracle:Kiwi123' | chpasswd
echo 'grid:Kiwi123' | chpasswd
echo "oracle ALL=(ALL) NOPASSWD: ALL" >> /etc/sudoers.d/oracle
echo "grid ALL=(ALL) NOPASSWD: ALL" >> /etc/sudoers.d/grid
sed -i "s/^.*requiretty/#Defaults requiretty/" /etc/sudoers
cat >> /etc/sysctl.conf <<EOF
fs.aio-max-nr = 3145728
fs.file-max = 6815744
kernel.shmall = 1073741824
kernel.shmmax = 4398046511104
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
kernel.msgmax = 8192
kernel.msgmnb = 65536
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default=262144
net.core.rmem_max=4194304
net.core.wmem_default=262144
net.core.wmem_max=1048586
EOF

cat >> /etc/security/limits.conf <<EOF
grid soft nproc 2047
grid hard nproc 16384
grid soft nofile 4096
grid hard nofile 65536
oracle soft nofile 131072
oracle hard nofile 131072
oracle soft nproc 131072
oracle hard nproc 131072
oracle soft core unlimited
oracle hard core unlimited
oracle soft memlock 50000000
oracle hard memlock 50000000
EOF

cat >> /etc/profile <<EOF
if [ \$USER = "oracle" ] || [ \$USER = "grid" ]; then
if [ $SHELL = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
ulimit -s 10240
else
ulimit -u 16384 -n 65536 -s 10240
fi
umask 022
fi

EDITOR=vi;
export EDITOR

PS1="\u@\h\w$";
PS2="\u@ \h --> ";

export PS1
export PS2

NLS_DATE_FORMAT="dd/mm/yyyy:hh24:mi:ss"
export NLS_DATE_FORMAT
EOF

cat >> /etc/sysconfig/network <<EOF
NOZEROCONF=yes

The last two things I do on the two primary cluster nodes are to update their /etc/hosts with the following (now remember, I do have the DNS configured as well and my /etc/resolv.conf does point to my DNS server):
10.0.2.21    oel7clus1.oraclekiwi.co.nz oel7clus1 #Primary Node 1
10.0.2.22    oel7clus2.oraclekiwi.co.nz oel7clus2 #Primary Node 2
10.0.2.23    oel7clus1-vip.oraclekiwi.co.nz oel7clus1-vip
10.0.2.24    oel7clus2-vip.oraclekiwi.co.nz oel7clus2-vip
# 10.0.2.25  oel7clus-scan.oraclekiwi.co.nz oel7clus-scan ## The SCAN details in DNS
# 10.0.2.26  oel7clus-scan.oraclekiwi.co.nz oel7clus-scan
# 10.0.2.27  oel7clus-scan.oraclekiwi.co.nz oel7clus-scan
10.0.2.28    oel7clus-dbvip.oraclekiwi.co.nz oel7clus-dbvip # Cluster IP for Dbvisit
10.0.2.29    oel7fs1.oraclekiwi.co.nz oel7fs1 # Standby Server
My primary hosts are called oel7clus1 and oel7clus2 and I am just using my test domain oraclekiwi.co.nz
Then a crucial requirement for running Clusterware is that you must make sure you have SSH user equivalence configured.
In short, make sure that the oracle and grid user on both nodes can ssh between the nodes without any password or passphrase being requested.  This is a standard requirement and really easy to do.
You can run the following commands on the two nodes first as the grid user then the oracle user to get this done - you will be prompted for confirmation and the user password while doing this - remember do not add a passphrase when prompted, just press enter.
ssh-keygen -t rsa
ssh-copy-id -i ~/.ssh/id_rsa.pub oel7clus1
ssh-copy-id -i ~/.ssh/id_rsa.pub oel7clus2
Once you have done the above, you should be able to SSH between the two systems without any passwords, example:
grid@oel7clus1 ~ : ssh oel7clus1
Last login: Sun Sep  1 14:28:22 2019
grid@oel7clus1 ~ : ssh oel7clus2
Last login: Thu Aug 22 13:58:37 2019
grid@oel7clus2 ~ : exit
logout
Connection to oel7clus2 closed.
grid@oel7clus1 ~ : exit
logout
Connection to oel7clus1 closed.
grid@oel7clus1 ~ :

Step 2:  Configure Disks

Before we want to get into starting the Oracle Clusterware installation, we need to make sure that we have the required shared disk to be used in the cluster.
In this test setup, I will make use of ASM and the ACFS filesystem. But before we get to that I need to add the disks.  Now in this configuration, I added two disks.
1 disk at 3GB in size - this will be the disk hosting the OCR and will also be the Voting Disk in the cluster.
1 disk at 30GB in size - which will be configured as an ACFS filesystem to host my Database Software and Database Files.
As mentioned before I use VirtualBox in this example and I add the above-mentioned disks to node 1 (Make sure you use fixed-size not dynamic) then I set them to be sharable and then add them to the second node (when adding the disk state you want to use an existing disk and then add the two disks allocated to node 1 - but remember they must be set to sharable in the VirtualBox virtual media manager).
Now the two disks are seen as “/dev/sdb” and “/dev/sdc” in my configuration.  You can easily get the details by running “fdisk -l”
Then from node 1 in the cluster, I run the following commands to partition the disk for use:
fdisk /dev/sdb
o
n
p
1
< press enter
< press enter
w
Example:
root@oel7clus1 ~ : fdisk /dev/sdb
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table
Building a new DOS disklabel with disk identifier 0x44bf62a8.

Command (m for help): o
Building a new DOS disklabel with disk identifier 0x1bc47716.

Command (m for help): n
Partition type:
   p   primary (0 primary, 0 extended, 4 free)
   e   extended
Select (default p): p
Partition number (1-4, default 1): 1
First sector (2048-6291455, default 2048):
Using default value 2048
Last sector, +sectors or +size{K,M,G} (2048-6291455, default 6291455):
Using default value 6291455
Partition 1 of type Linux and of size 3 GiB is set

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.
root@oel7clus1 ~ :
I repeat the same for the second disk - /dev/sdc
I then end up with the partitions /dev/sdb1 and /dev/sdc1 which I will now use to create ASM disks from.
There are a few different options available to do this and everyone has their preference.
I like to use ASMLIB as I find it really easy to work with, but there are other options available to you which you can review.
But in this example, I will use ASMLIB.  Let's first run “oracleasm configure” as the root user to configure it to run as the “grid” user with the correct group and to start on system boot:
Example:
root@oel7clus1 ~ : oracleasm configure -i
Configuring the Oracle ASM library driver.

This will configure the on-boot properties of the Oracle ASM library
driver.  The following questions will determine whether the driver is
loaded on boot and what permissions it will have.  The current values
will be shown in brackets ('[]').  Hitting <ENTER> without typing an
answer will keep that current value.  Ctrl-C will abort.

Default user to own the driver interface [grid]: grid
Default group to own the driver interface [asmadmin]: asmadmin
Start Oracle ASM library driver on boot (y/n) [y]: y
Scan for Oracle ASM disks on boot (y/n) [y]: y
Writing Oracle ASM library driver configuration: done


root@oel7clus1 ~ : systemctl restart oracleasm
Do make sure to do this on both the cluster nodes.
Next on node 1, let's mark the two disks we added as Oracle ASM disks.
As the “root” user run the following commands:
root@oel7clus1 ~ : oracleasm createdisk ASMDISK1 /dev/sdb1
Writing disk header: done
Instantiating disk: done
root@oel7clus1 ~ : oracleasm createdisk ASMDISK2 /dev/sdc1
Writing disk header: done
Instantiating disk: done
root@oel7clus1 ~ : oracleasm listdisks
ASMDISK1
ASMDISK2
Now you have the two disks marked for use by ASM.  Next, I would recommend you install the following ASMLIB package which you can download from the Oracle web site - https://www.oracle.com/linux/downloads/linux-asmlib-v7-downloads.html :  oracleasmlib-2.0.12-1.el7.x86_64.rpm
Once you have this downloaded, you can use the oracleasm-discover command to see your disks:
root@oel7clus1 ~ : oracleasm-discover
Using ASMLib from /opt/oracle/extapi/64/asm/orcl/1/libasm.so
[ASM Library - Generic Linux, version 2.0.12 (KABI_V2)]
Discovered disk: ORCL:ASMDISK1 [6289408 blocks (3220176896 bytes), maxio 1024, integrity none]
Discovered disk: ORCL:ASMDISK2 [62912512 blocks (32211206144 bytes), maxio 1024, integrity none]
The above steps might seem daunting and a lot to do, but it is not that difficult and once you have done this once or twice it becomes really easy and things start making more sense.
We are ready to start the installation of Oracle Clusterware.

Step 3:  Installing Oracle Clusterware

Now we are getting to the fun stuff.  Make sure you have completed the pre-requisite steps and that you have your networking and DNS configured as well as that the grid Unix account can ssh between nodes without a password or passphrase.
On both nodes, let's pre-create a few directories, this is where we will install Oracle Clusterware.
As the root user:
cd /u01
mkdir -p app
cd app
mkdir grid 19.3.0 oracle
cd /u01
chown -R grid:oinstall app
chmod -R 775 app
cd app
chown -R oracle:oinstall oracle
In summary under the /u01 folder (mount point) on both systems you should have the following directory structure:
grid@oel7clus1 /u01 : tree app
app
├── 19.3.0
├── grid
└── oracle
3 directories, 0 files
Now, as the “grid” Unix user, on only node 1 (oel7clus1) extract the Grid Infrastructure software into the /u01/app/19.3.0 folder using the “unzip -q” command.
In my example, I have the software available as zip files in /install
grid@oel7clus1 /u01/app/19.3.0 : unzip -q /install/LINUX.X64_193000_grid_home.zip
grid@oel7clus1 /u01/app/19.3.0 :
grid@oel7clus1 /u01/app/19.3.0 : ls
addnode     cv           env.ora       instantclient  lib      ord    precomp   root.sh         sqlpatch  utl
assistants  dbjava       evm           inventory      md       ords   QOpatch   root.sh.old     sqlplus   welcome.html
bin         dbs          gpnp          javavm         network  oss    qos       root.sh.old.1   srvm      wlm
cha         deinstall    gridSetup.sh  jdbc           nls      oui    racg      rootupgrade.sh  suptools  wwg
clone       demo         has           jdk            OPatch   owm    rdbms     runcluvfy.sh    tomcat    xag
crs         diagnostics  hs            jlib           opmn     perl   relnotes  sdk             ucp       xdk
css         dmu          install       ldap           oracore  plsql  rhp       slax            usm
grid@oel7clus1 /u01/app/19.3.0 :
Tip:
Make sure you install the cvpudisk package located in the cv/rpm subfolder on both cluster nodes.  As sudo is allowed for the grid user, you can just use the following commands to do this
grid@oel7clus1 /u01/app/19.3.0 : cd cv/rpm/
grid@oel7clus1 /u01/app/19.3.0/cv/rpm : ls
cvuqdisk-1.0.10-1.rpm
grid@oel7clus1 /u01/app/19.3.0/cv/rpm : sudo rpm -ivh cvuqdisk-1.0.10-1.rpm
Preparing...                          ################################# [100%]
    package cvuqdisk-1.0.10-1.x86_64 is already installed
Now in my configuration, I already installed the package on both nodes, but you might have to install this package on both your nodes.  You can “scp” the file from the primary node where it is extracted into the second node /tmp and install from there.  Do not extract the full Grid install (zip) file on the second node, the software will be copied and configured there during the installer process which we will run next.
Starting the Installer:
To start the installer, as the “grid” user, navigate to the ORACLE_HOME location for Clusterware which is /u01/app/19.3.0 in this example.  Then run “./gridSetup.sh”
The steps and screenshots below will take you through the configuration of Oracle Clusterware on a standalone cluster.
grid@oel7clus1 /u01/app/19.3.0 : ./gridSetup.sh
Launching Oracle Grid Infrastructure Setup Wizard...

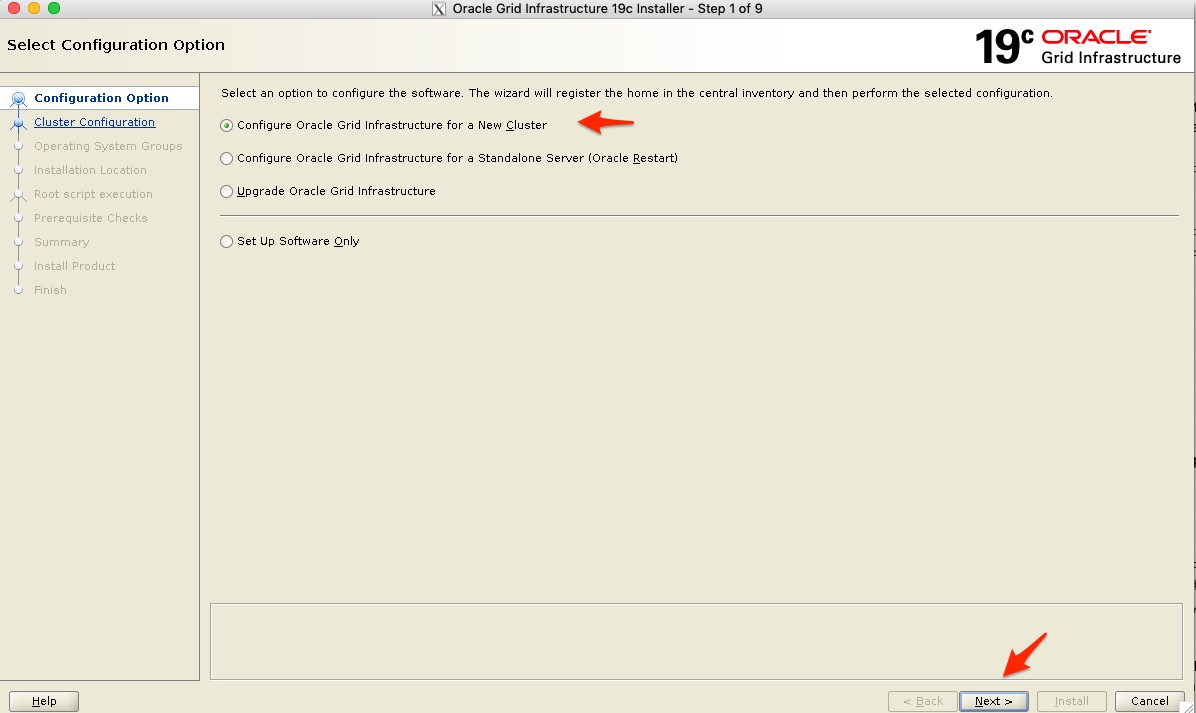

  • As this is a new installation we pick Configure for a new cluster and click on next

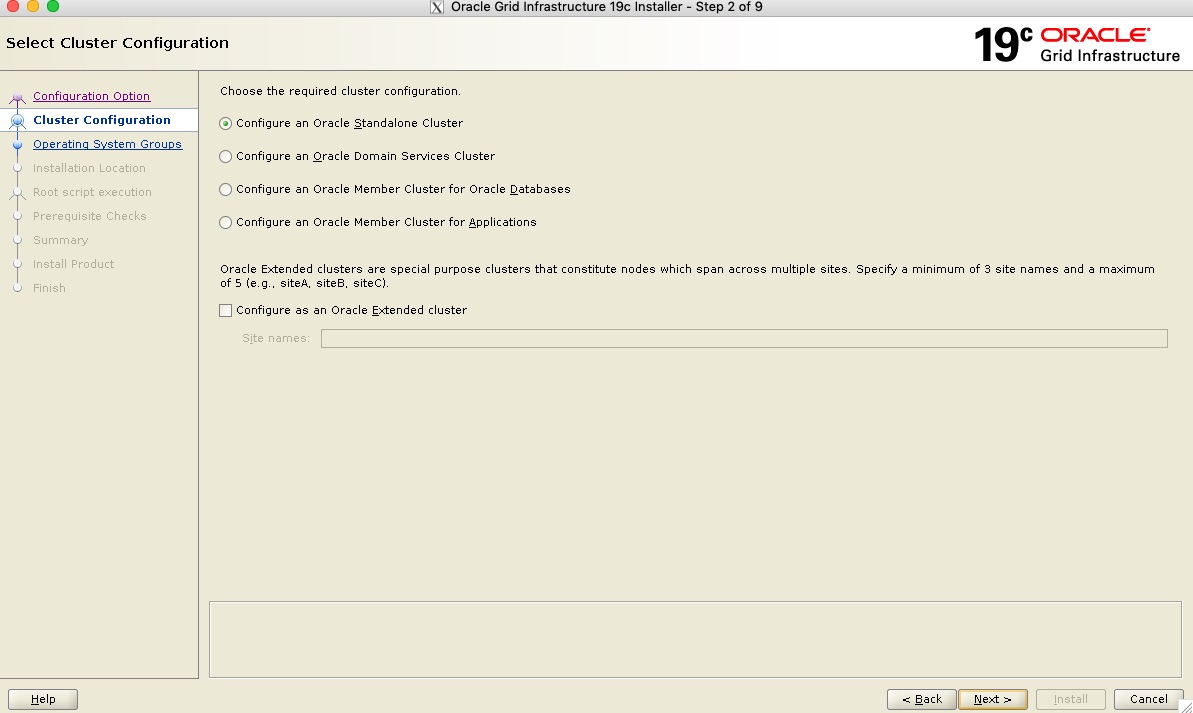

  • The next screen as seen below we select a Standalone Cluster and click next to continue

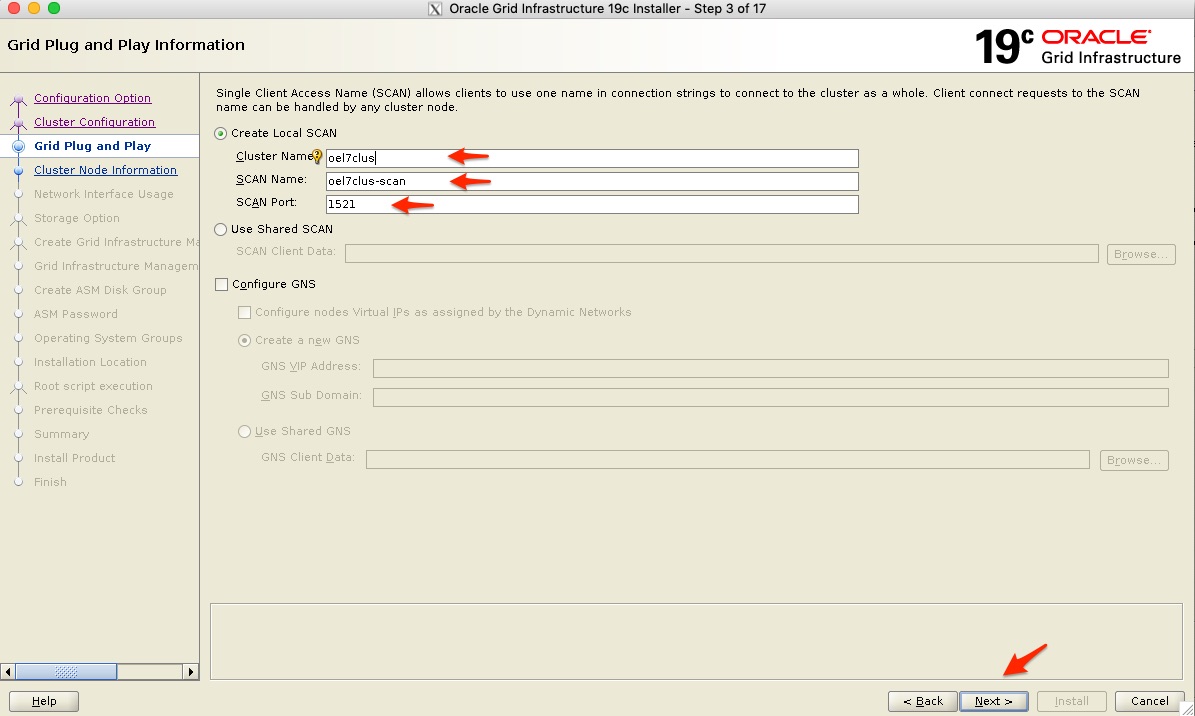

  • Now are getting to the next step where you need to supply the cluster name as well as the SCAN name and port, remember you have to have these in the DNS server.
  • For more detail on SCAN and SCAN listeners please see the Oracle Documentation as this is a big topic in itself

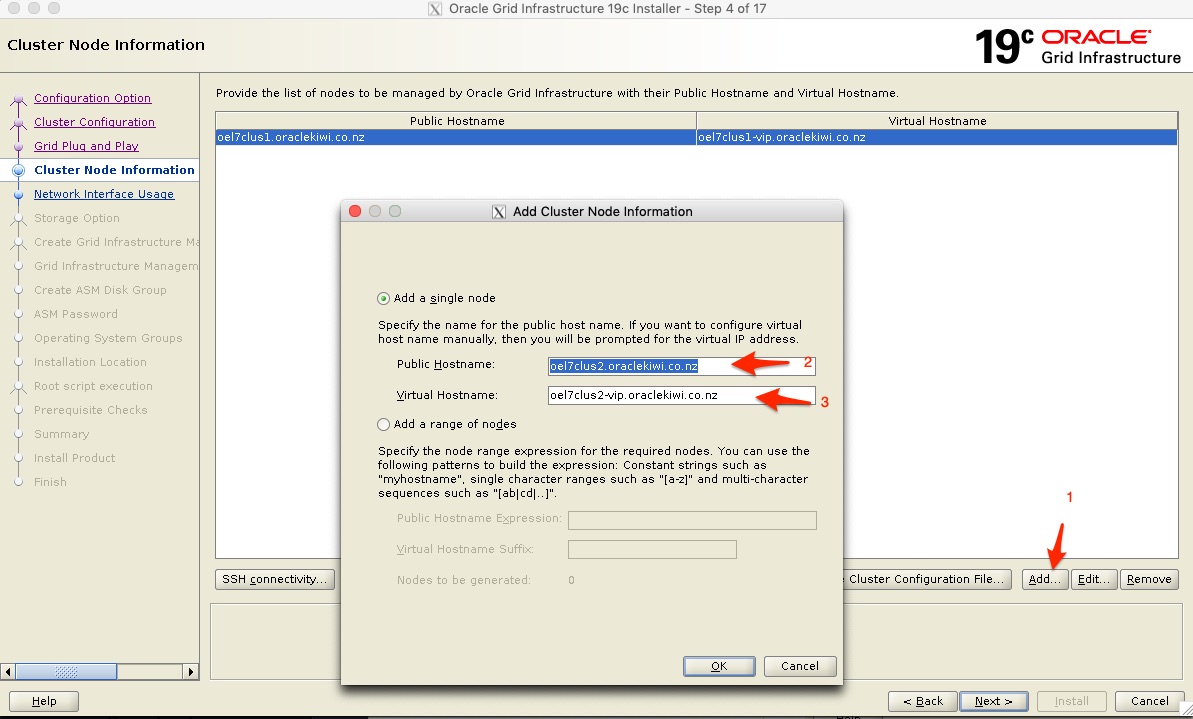

  • Next, we get the screen where we need to supply the second node in the cluster’s details, this would be the public hostname as well as the Virtual IP/Hostname.
  • Once you have supplied the details - and once again, these should be in your DNS server and resolvable.
  • Once you have added the details you will see the summary page, now click next to continue

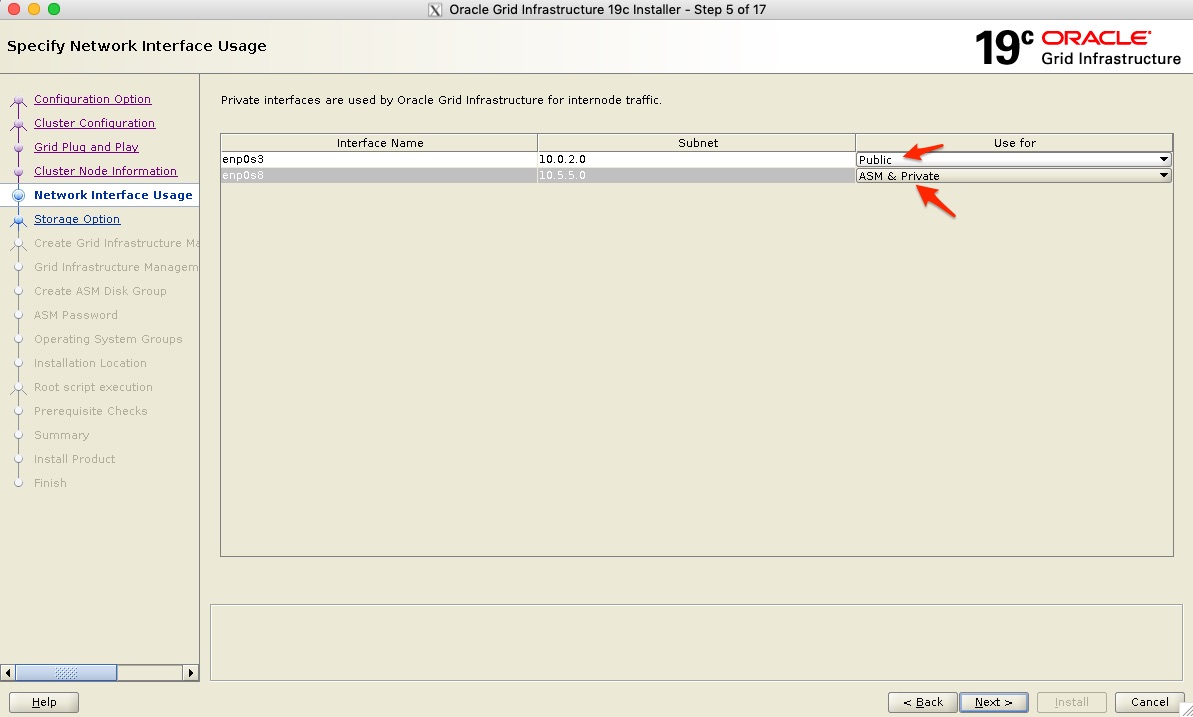

  • Next, we get the option to specify which subnets to use as Public or ASM or Private.  In my example I will use the one network interface (also used as the interconnect between the two servers) for both ASM but also as the private link.

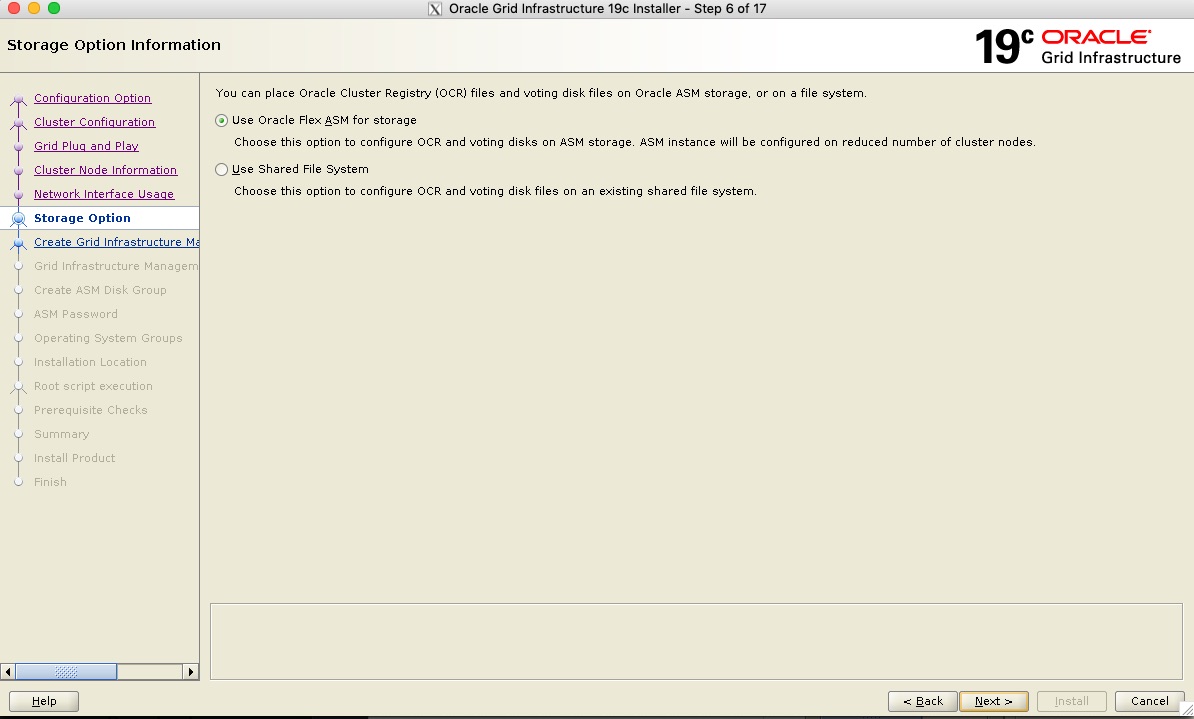

  • Next we are going to put the OCR and Voting disk on ASM, so we select Oracle Flex ASM for Storage

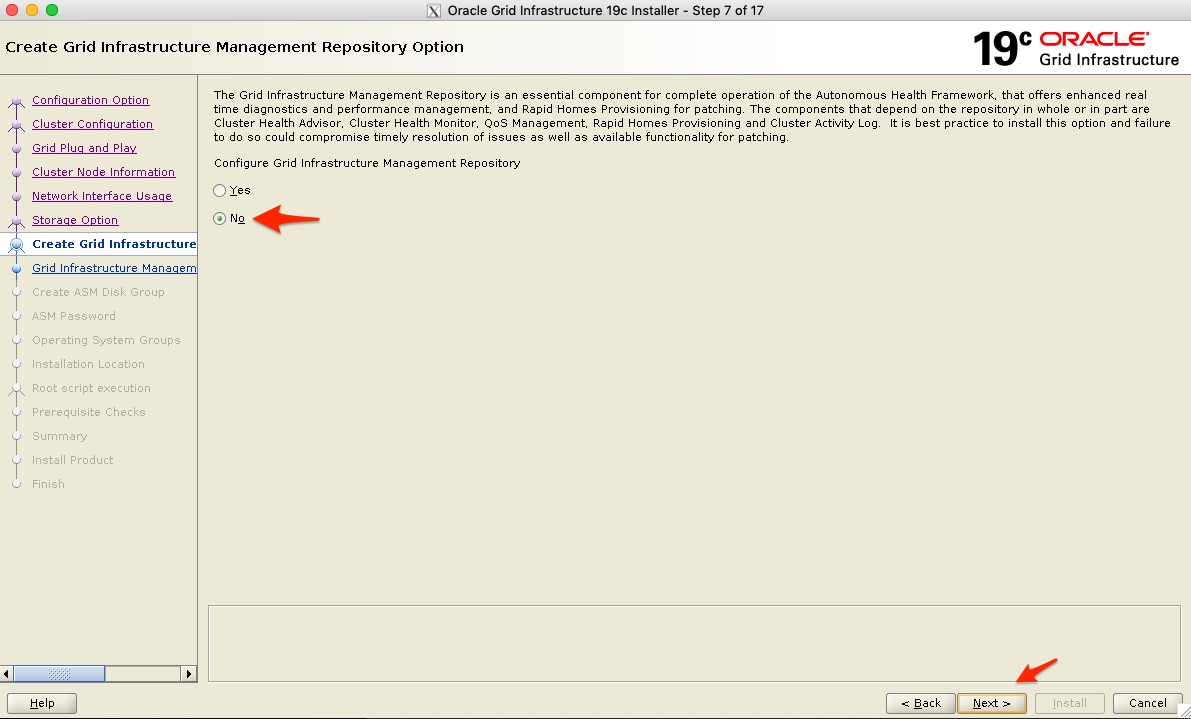

  • Next, we get the option to not use the Grid Infrastructure Management repository.  Now as this is a test configuration, I do not need this and will leave it out as this will save a little on resources, but for production configurations, you most likely will enable this as with it there are a number of benefits as listed on the screen.

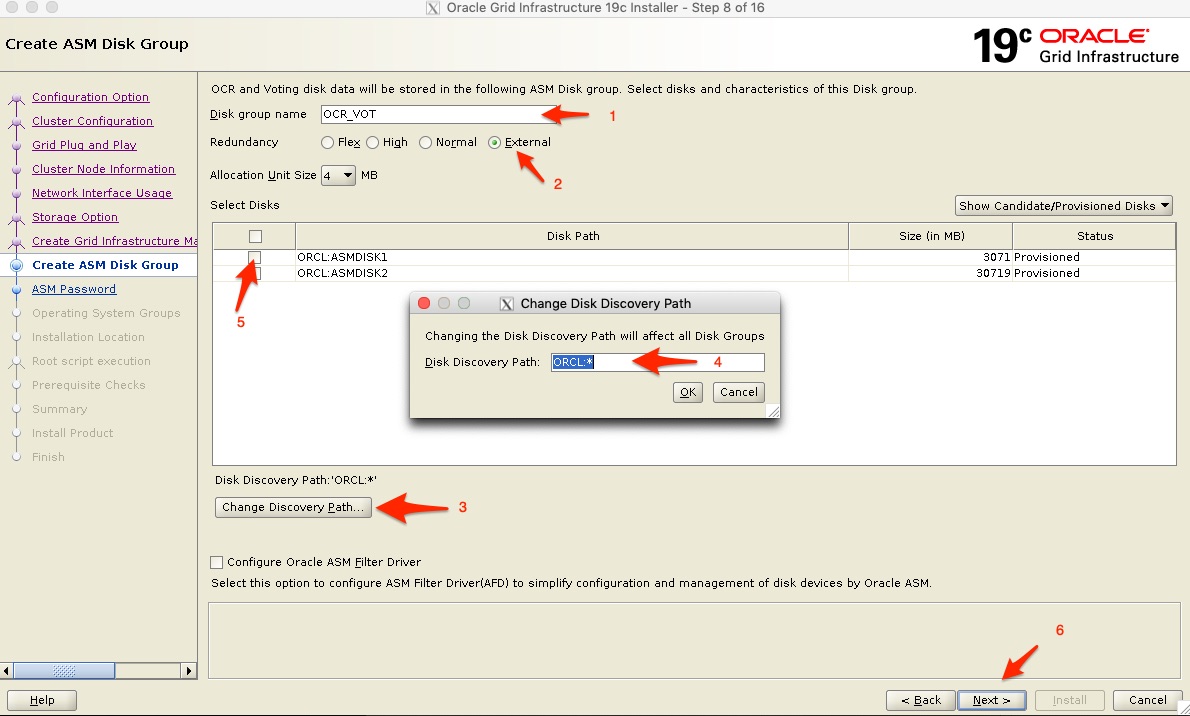

  • Now we get to the Disk Groups, we first give the 1st Disk Group the name OCR_VOT (which is just a name I gave it to note this Disk Group is used for the OCR and Voting disks.  It is a small disk and I select redundancy to external - you might want to review the Oracle Documentation on the redundancy levels. Note that depending on your redundancy level you may require twice the disk space.
  • It might be that you do not see any disks to select (marked 5 below) - if that is the case, select “Change Discovery Path” marked with 3 below and set the Discovery Path to ORCL:* or whatever the path might be on your system, but as I am using ASMLIB in this example, I can use this path and it should then pick up the provisioned disks.
  • I then select the first smaller disk only and click on next to continue.

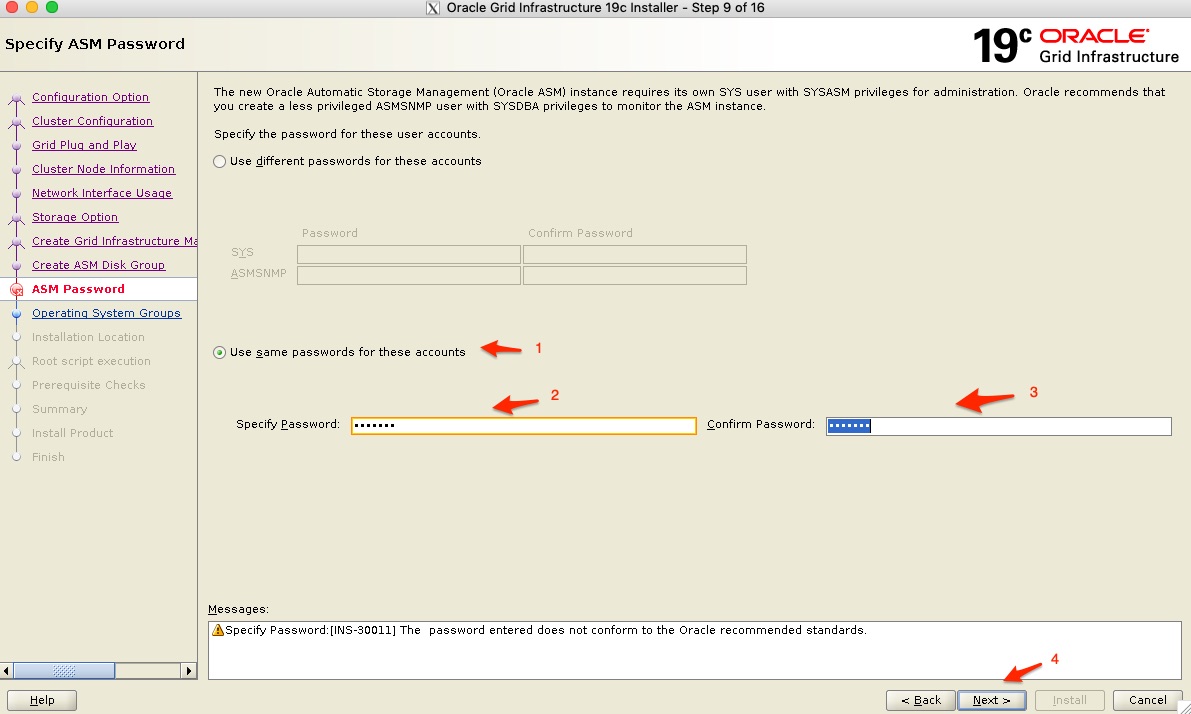

  • Next you need to specify the ASM instance passwords.  Now you should make sure you give it a complex password and depending on your configuration you may want to use various different passwords for the SYS and ASMSNMP accounts.
  • In this example, I will use the same password for both

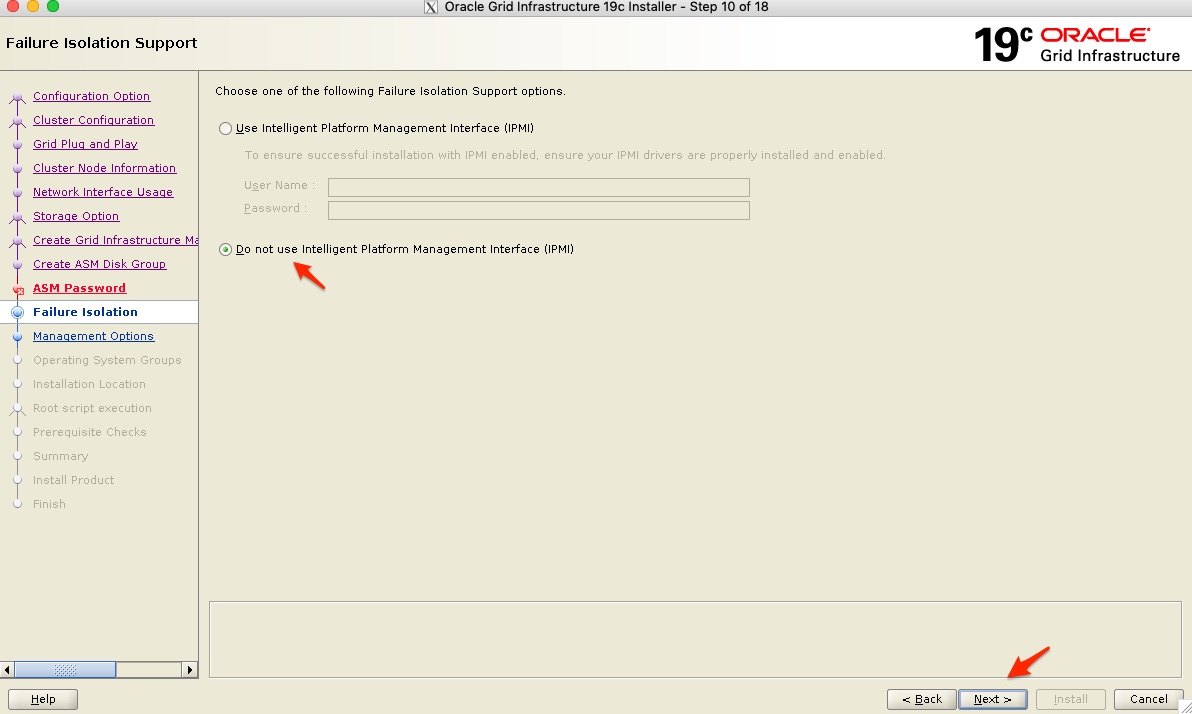

  • I am not using IPMI so click next to continue

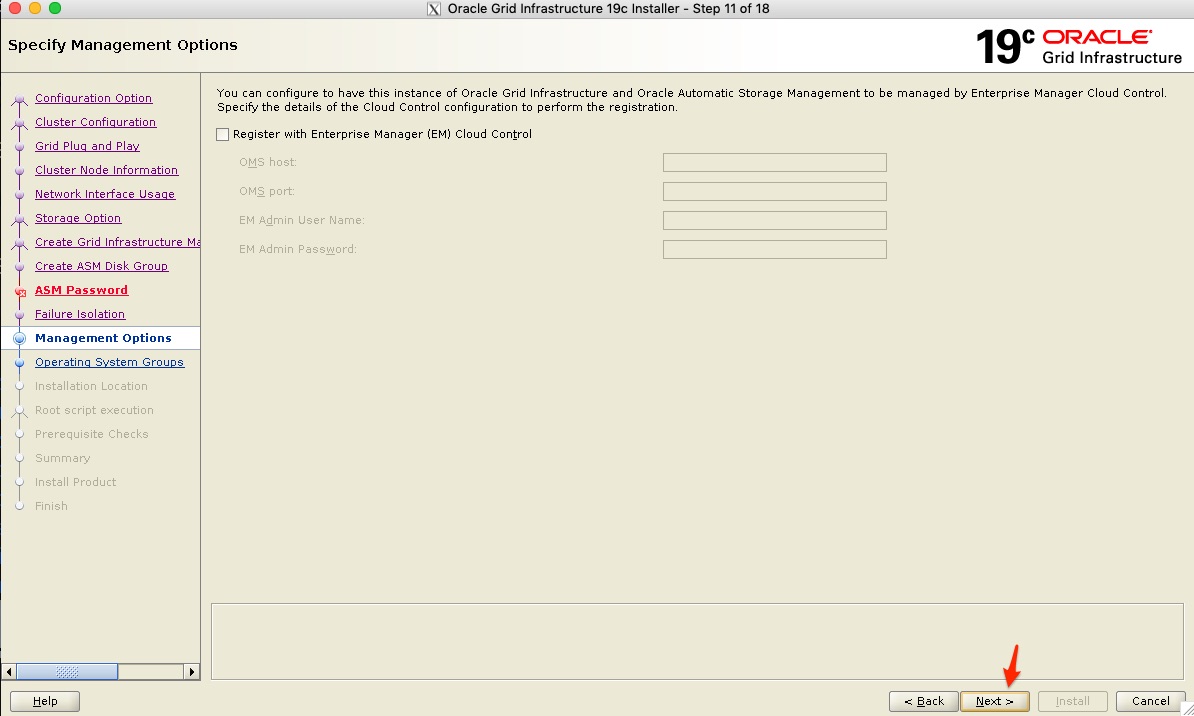

  • In my configuration, I am not using Enterprise Manager, so I leave this step out and click next.

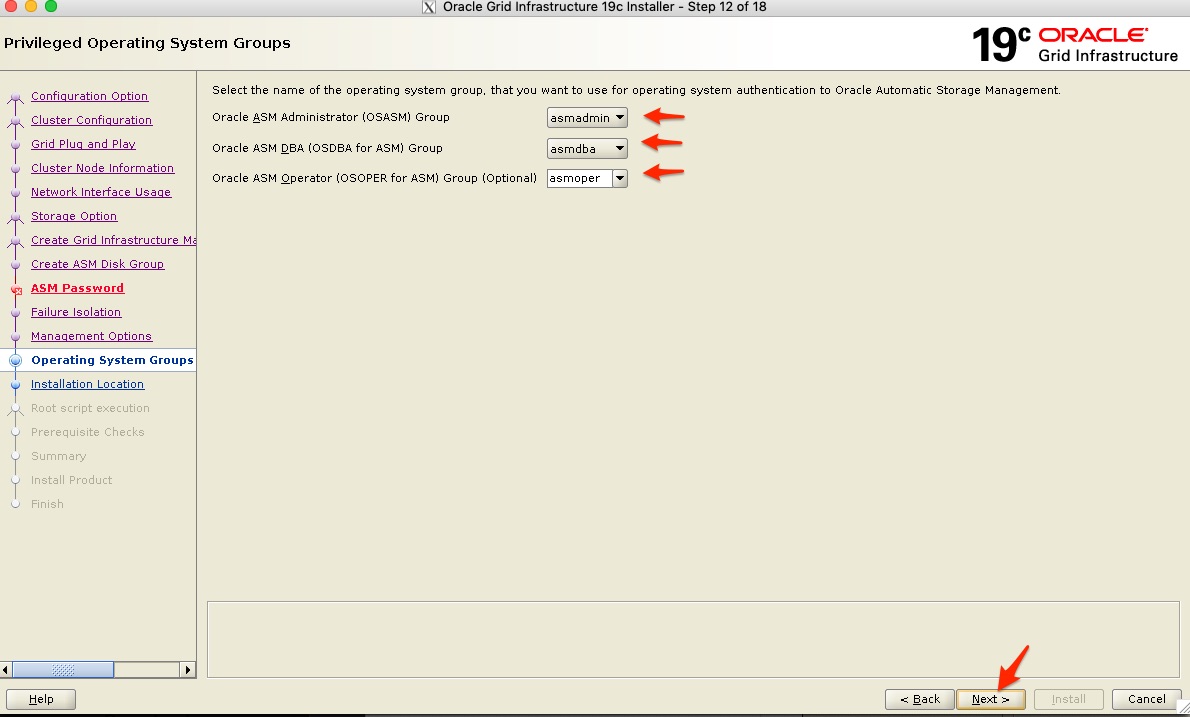

  • Next specify the Groups as seen below and click next.
  • My default groups that I have created and assigned to the grid UNIX user was automatically picked up.

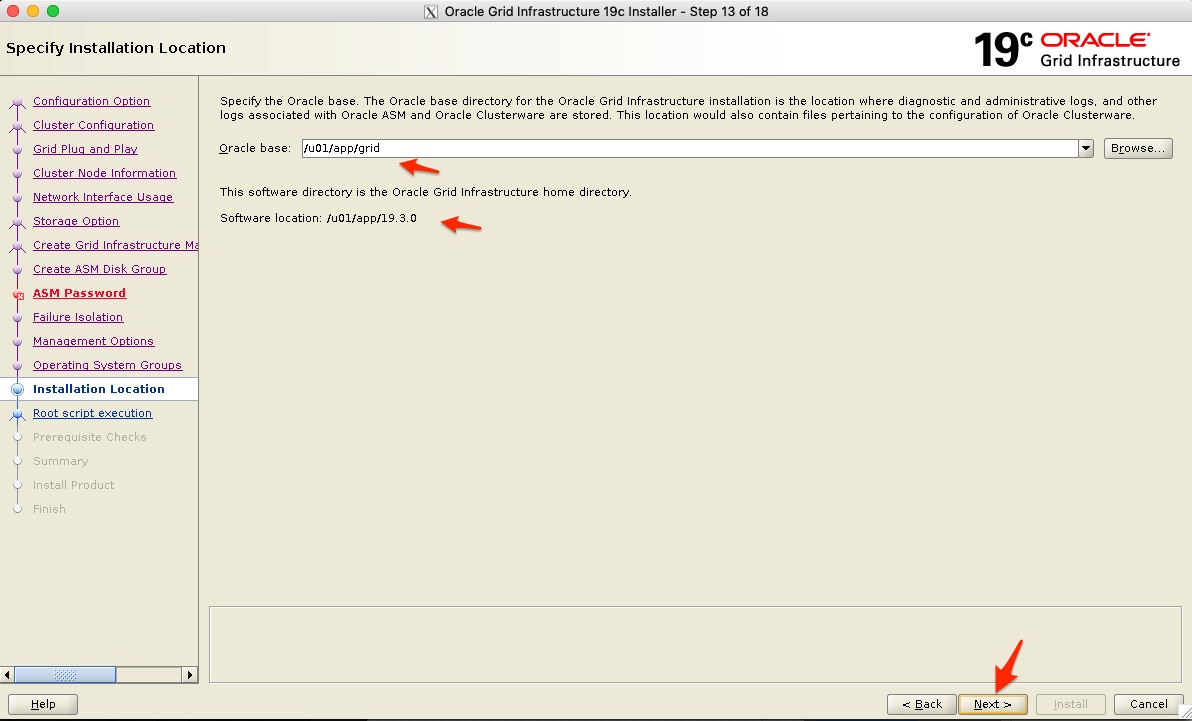

  • Next confirm the Oracle Base location, which I leave as the default /u01/app/grid

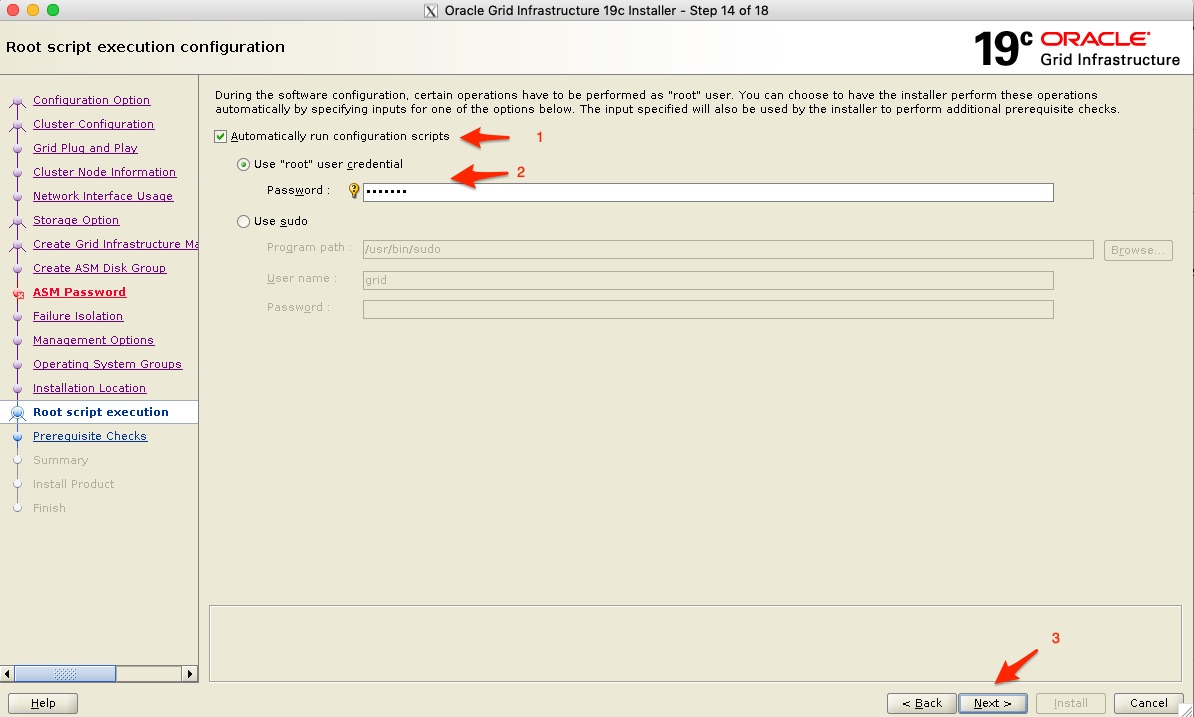

  • Next I do want to execute the configuration scripts automatically - these are run as the root user, so you will need to specify the root password, or if you have “sudo” configured you can use that as well.

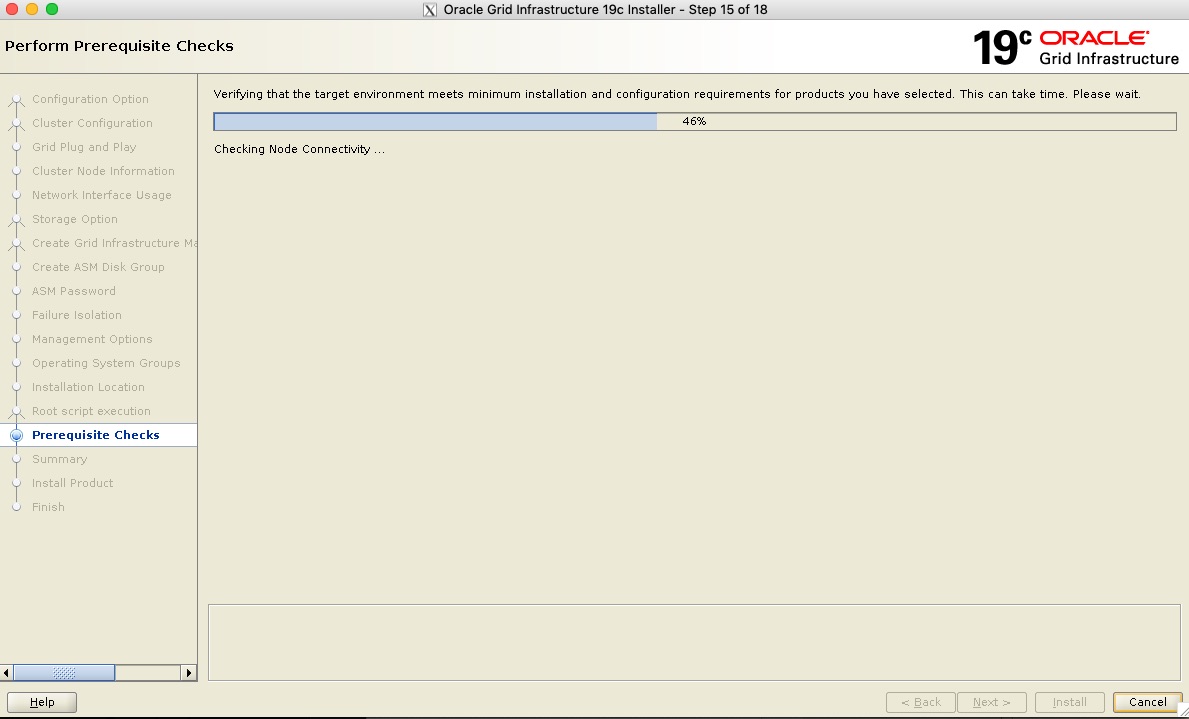

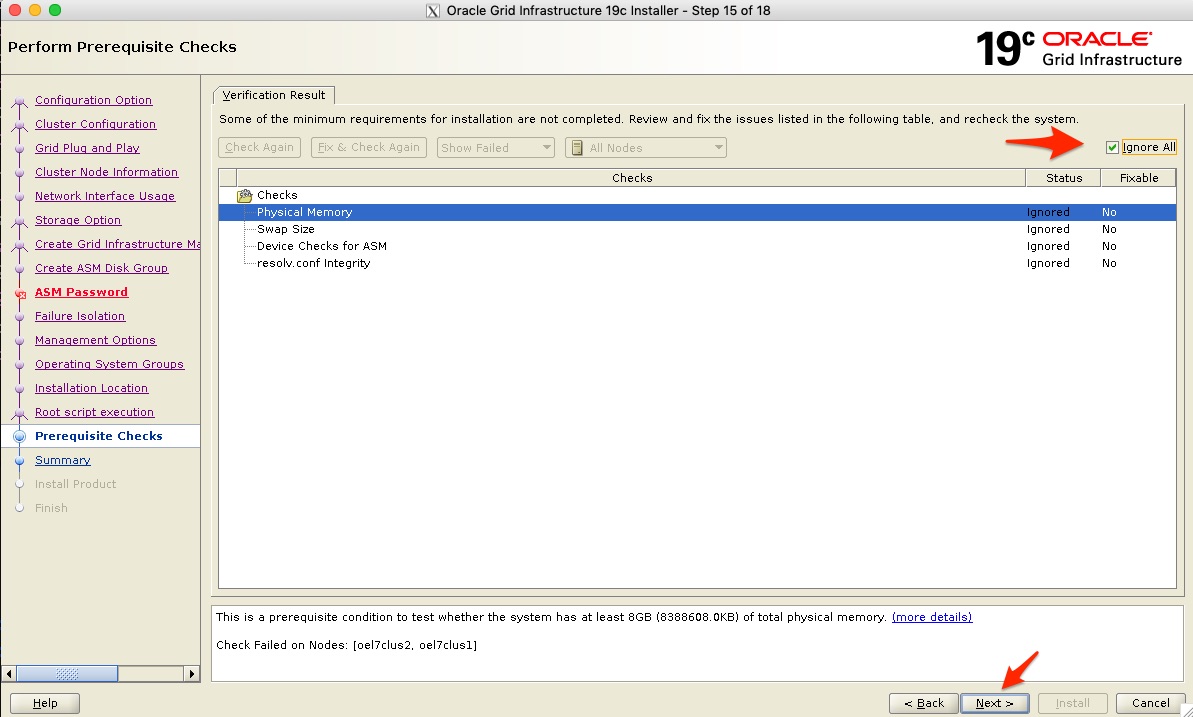

  • Next verification will run to make sure you can continue
  • In my configuration I did get a few checks that failed, after review, I found that my ASM devices were correct even though it was reported, the resolv.conf file where my DNS configuration is pointed was also correct.  The Memory and swap space will specify recommended values, I am fine with the values on my test system and selected “Ignore All” and continued.  In production configurations, you do want to make sure you meet the requirements.

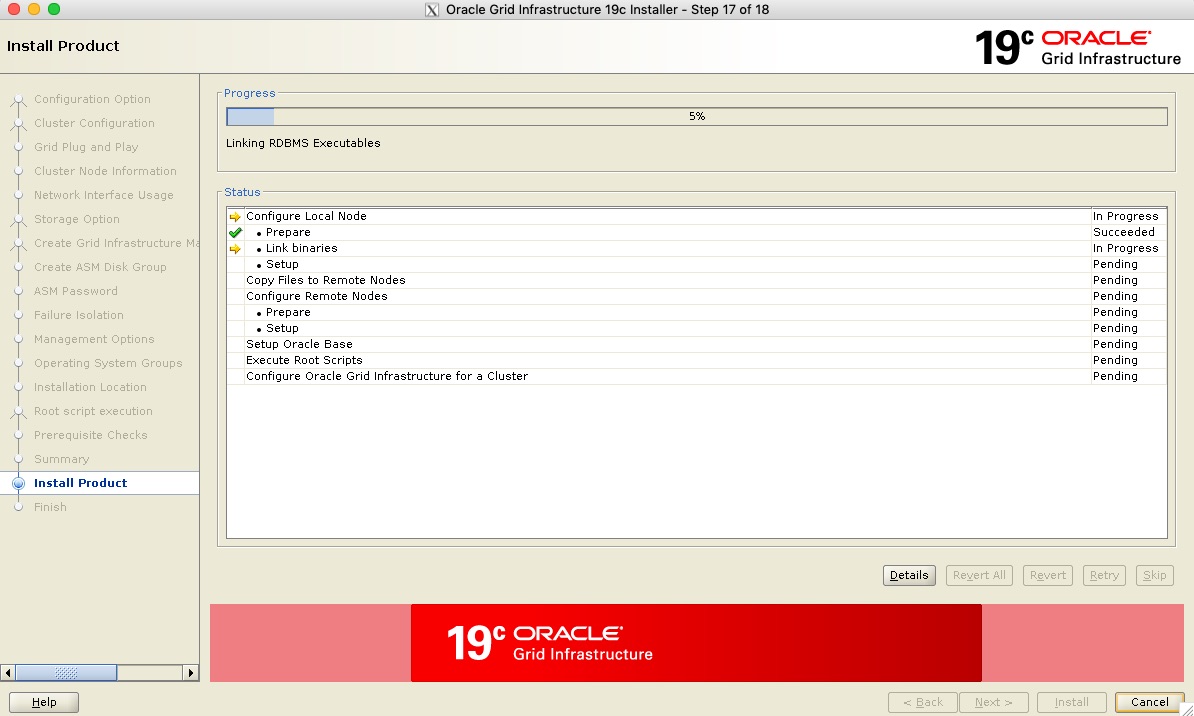

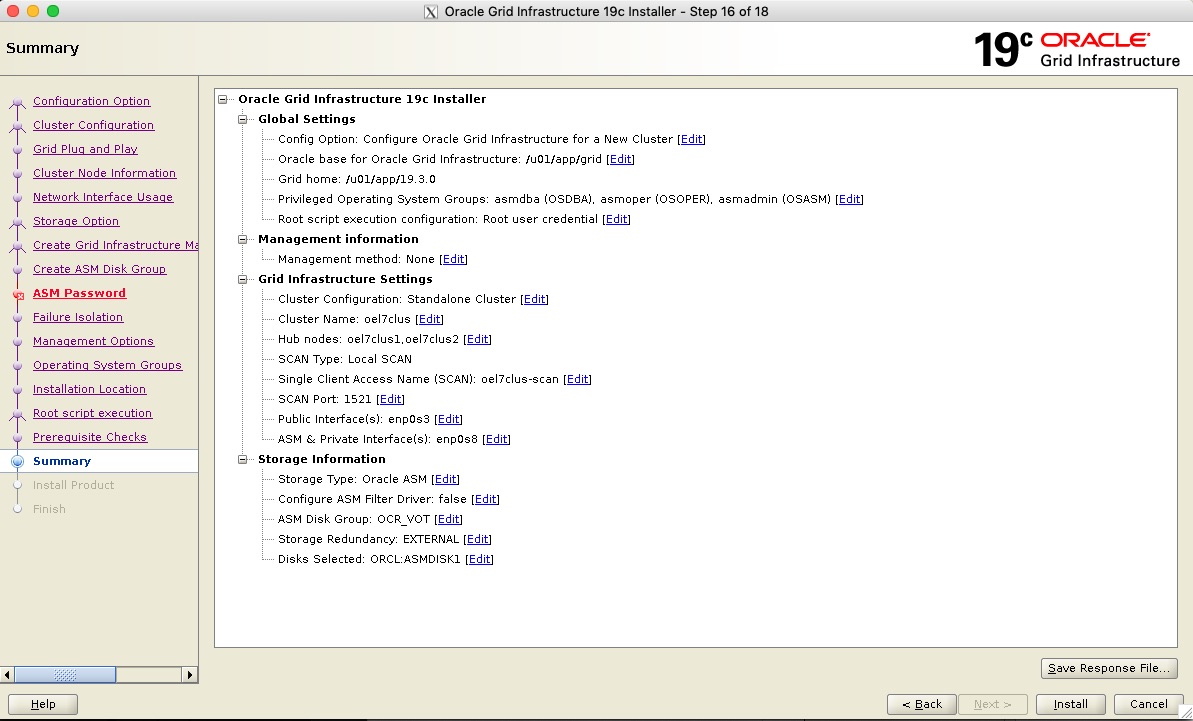

  • You will get to a summary screen from where you can then start the installation configuration.  Once you start this the process can take time.

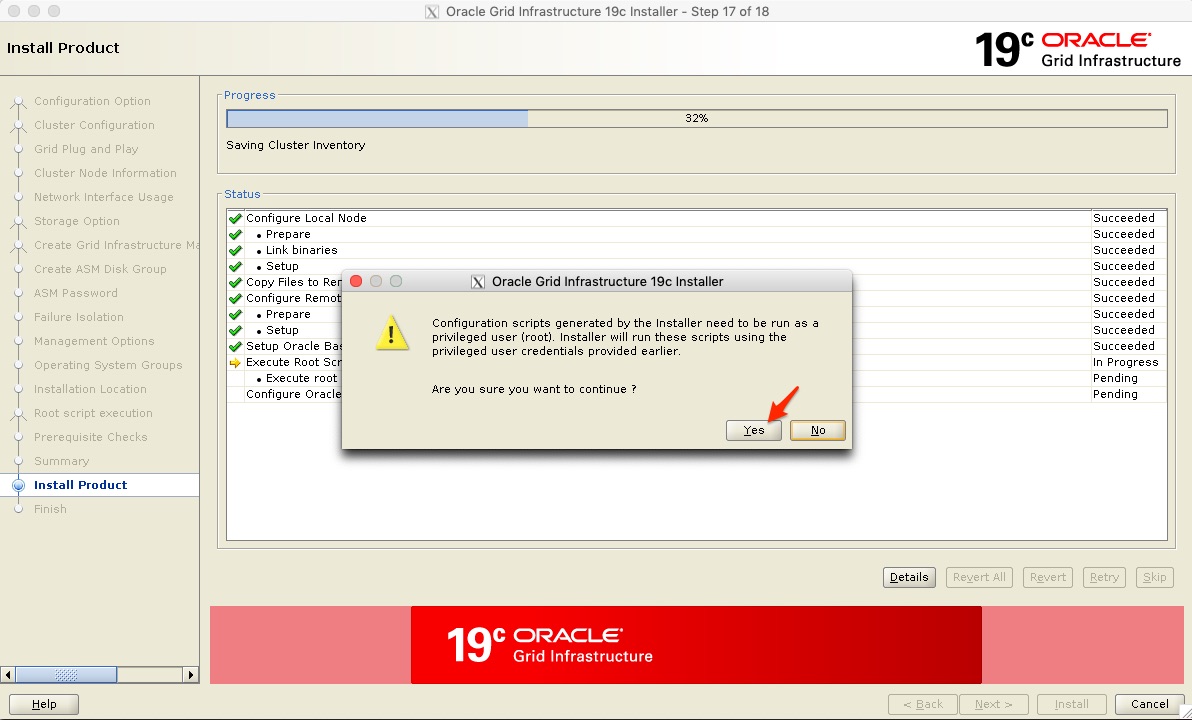

  • After a while, you will be prompted to confirm you still want to run the configuration scripts as the root user.
  • I do find this strange, as I did agree to this a few screens before, but all you have to do is click yes and the installer continues.  Again note that this process can take time.

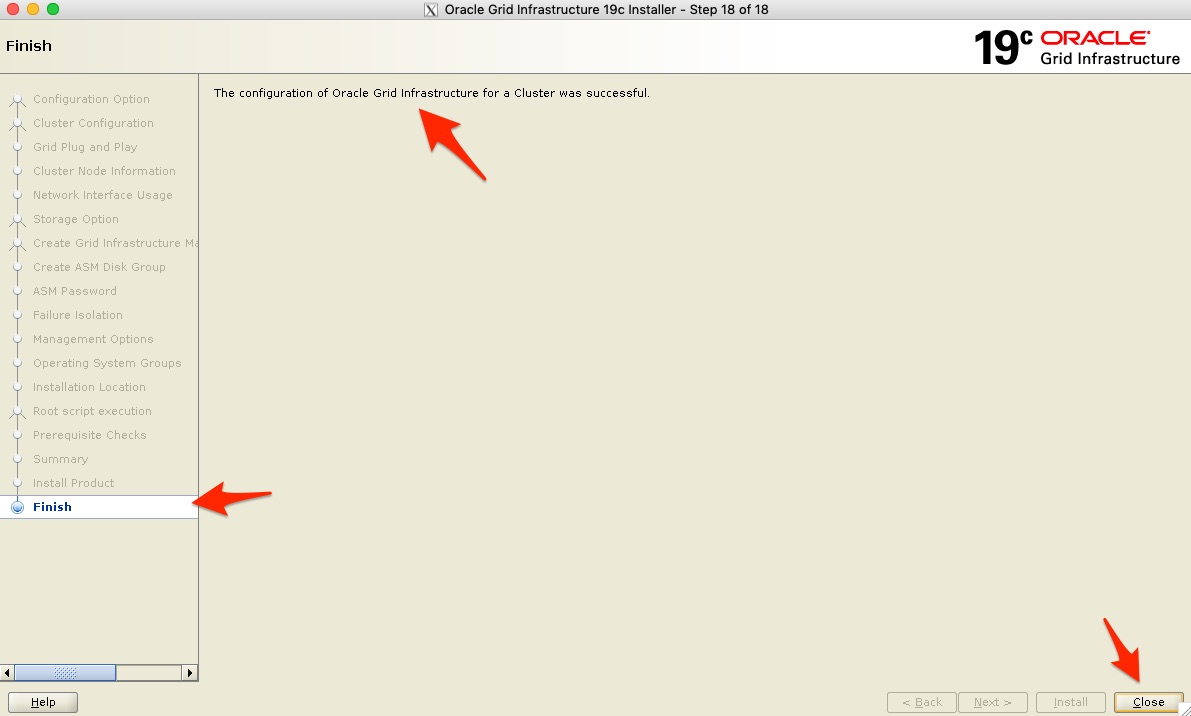

  • Once everything is configured without any issues you will be directed to the last “Finish” screen, you can now click close.
Excellent, installation complete and I can quickly verify this by seeing ASM instances running on both my cluster nodes.
I can use the “crsctl status resource” command to get full details on my cluster resources, for example:
grid@oel7clus1 /u01/app/19.3.0 : crsctl status resource -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
               ONLINE  ONLINE       oel7clus1                STABLE
               ONLINE  ONLINE       oel7clus2                STABLE
ora.chad
               ONLINE  ONLINE       oel7clus1                STABLE
               ONLINE  ONLINE       oel7clus2                STABLE
ora.net1.network
               ONLINE  ONLINE       oel7clus1                STABLE
               ONLINE  ONLINE       oel7clus2                STABLE
ora.ons
               ONLINE  ONLINE       oel7clus1                STABLE
               ONLINE  ONLINE       oel7clus2                STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       oel7clus1                STABLE
      2        ONLINE  ONLINE       oel7clus2                STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       oel7clus2                STABLE
ora.LISTENER_SCAN2.lsnr
      1        ONLINE  ONLINE       oel7clus1                STABLE
ora.LISTENER_SCAN3.lsnr
      1        ONLINE  ONLINE       oel7clus1                STABLE
ora.OCR_VOT.dg(ora.asmgroup)
      1        ONLINE  ONLINE       oel7clus1                STABLE
      2        ONLINE  ONLINE       oel7clus2                STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asm(ora.asmgroup)
      1        ONLINE  ONLINE       oel7clus1                Started,STABLE
      2        ONLINE  ONLINE       oel7clus2                Started,STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
      1        ONLINE  ONLINE       oel7clus1                STABLE
      2        ONLINE  ONLINE       oel7clus2                STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.cvu
      1        ONLINE  ONLINE       oel7clus1                STABLE
ora.oel7clus1.vip
      1        ONLINE  ONLINE       oel7clus1                STABLE
ora.oel7clus2.vip
      1        ONLINE  ONLINE       oel7clus2                STABLE
ora.qosmserver
      1        ONLINE  ONLINE       oel7clus1                STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       oel7clus2                STABLE
ora.scan2.vip
      1        ONLINE  ONLINE       oel7clus1                STABLE
ora.scan3.vip
      1        ONLINE  ONLINE       oel7clus1                STABLE
--------------------------------------------------------------------------------
grid@oel7clus1 /u01/app/19.3.0 :
Now that we have Oracle Clusterware installed, we will need one more thing before we can use ACFS - we need to apply the latest patch update to get the Clusterware software up to date and to make sure that the Linux Kernel is supported for running ACFS filesystem.  For more detail on ACFS and required patches to match kernel versions please see Oracle Support.  Now as I am using one of the latest Oracle Linux 7 updates, I do need to apply patches to allow Oracle Clusterware to use ACFS.  Do not be scared, this is not a difficult process and in the next step, I will quickly take you through this step.
But before I do this, a quick way to see if you can create ACFS filesystems is to run the “asmca” utility - and as you can see in my configuration I cannot see ACFS or ADMV options at all, so lets first install the patch.

Step 4:  Apply Patch to Oracle Clusterware (if required)

As mentioned in my configuration as I am using the latest Oracle Linux 7 with all its updates I will need to apply the latest Oracle Grid Infrastructure patch to make sure I can use ACFS - which I would like to show you in this example.
Now the patch I will be applying is patch number: 29708769
Please see Oracle support for more detail on this patch.
I have downloaded the patch and it is shared via NFS folder on both my nodes.  After reviewing and running the required Patch tests I applied the patch first to node 1 then once completed to node 2 with the following commands:
root@oel7clus1 ~ : . oraenv
ORACLE_SID = [root] ? +ASM1
The Oracle base has been set to /u01/app/grid
root@oel7clus1 ~ : ls /u01/app
19.3.0  grid  oracle  oraInventory
root@oel7clus1 ~ : export PATH=/u01/app/19.3.0/OPatch:$PATH
root@oel7clus1 ~ : which opatch
/u01/app/19.3.0/OPatch/opatch
root@oel7clus1 ~ : cd
root@oel7clus1 ~ : opatchauto apply /patch/patches/
29708769/        PatchSearch.xml
root@oel7clus1 ~ : opatchauto apply /patch/patches/29708769 -oh /u01/app/19.3.0
OPatchauto session is initiated at Sun Sep  1 16:14:04 2019
System initialization log file is /u01/app/19.3.0/cfgtoollogs/opatchautodb/systemconfig2019-09-01_04-14-07PM.log.
Session log file is /u01/app/19.3.0/cfgtoollogs/opatchauto/opatchauto2019-09-01_04-14-16PM.log
The id for this session is QTRD
Executing OPatch prereq operations to verify patch applicability on home /u01/app/19.3.0
Patch applicability verified successfully on home /u01/app/19.3.0
Bringing down CRS service on home /u01/app/19.3.0
CRS service brought down successfully on home /u01/app/19.3.0
Start applying binary patch on home /u01/app/19.3.0
Binary patch applied successfully on home /u01/app/19.3.0
Starting CRS service on home /u01/app/19.3.0
CRS service started successfully on home /u01/app/19.3.0
OPatchAuto successful.
--------------------------------Summary--------------------------------
Patching is completed successfully. Please find the summary as follows:
Host:oel7clus1
CRS Home:/u01/app/19.3.0
Version:19.0.0.0.0
Summary:
==Following patches were SKIPPED:
Patch: /patch/patches/29708769/29401763
Reason: This patch is already been applied, so not going to apply again.
==Following patches were SUCCESSFULLY applied:
Patch: /patch/patches/29708769/29834717
Log: /u01/app/19.3.0/cfgtoollogs/opatchauto/core/opatch/opatch2019-09-01_16-17-15PM_1.log
Patch: /patch/patches/29708769/29850993
Log: /u01/app/19.3.0/cfgtoollogs/opatchauto/core/opatch/opatch2019-09-01_16-17-15PM_1.log
Patch: /patch/patches/29708769/29851014
Log: /u01/app/19.3.0/cfgtoollogs/opatchauto/core/opatch/opatch2019-09-01_16-17-15PM_1.log
OPatchauto session completed at Sun Sep  1 16:27:04 2019
Time taken to complete the session 13 minutes, 1 second
root@oel7clus1 ~ :
Then follow the same steps on the second node:
root@oel7clus2 /patch : . oraenv
ORACLE_SID = [root] ? +ASM2
The Oracle base has been set to /u01/app/grid
root@oel7clus2 /patch : export PATH=/u01/app/19.3.0/OPatch:$PATH
root@oel7clus2 /patch : which opatch
/u01/app/19.3.0/OPatch/opatch
root@oel7clus2 /patch : opatchauto apply /patch/patches/29708769 -oh /u01/app/19.3.0
OPatchauto session is initiated at Sun Sep  1 17:05:18 2019
System initialization log file is /u01/app/19.3.0/cfgtoollogs/opatchautodb/systemconfig2019-09-01_05-05-21PM.log.
Session log file is /u01/app/19.3.0/cfgtoollogs/opatchauto/opatchauto2019-09-01_05-05-31PM.log
The id for this session is 6418
Executing OPatch prereq operations to verify patch applicability on home /u01/app/19.3.0
Patch applicability verified successfully on home /u01/app/19.3.0
Bringing down CRS service on home /u01/app/19.3.0
CRS service brought down successfully on home /u01/app/19.3.0
Start applying binary patch on home /u01/app/19.3.0
Binary patch applied successfully on home /u01/app/19.3.0
Starting CRS service on home /u01/app/19.3.0
CRS service started successfully on home /u01/app/19.3.0
OPatchAuto successful.
--------------------------------Summary--------------------------------
Patching is completed successfully. Please find the summary as follows:
Host:oel7clus2
CRS Home:/u01/app/19.3.0
Version:19.0.0.0.0
Summary:
==Following patches were SKIPPED:
Patch: /patch/patches/29708769/29401763
Reason: This patch is already been applied, so not going to apply again.
==Following patches were SUCCESSFULLY applied:
Patch: /patch/patches/29708769/29834717
Log: /u01/app/19.3.0/cfgtoollogs/opatchauto/core/opatch/opatch2019-09-01_17-08-19PM_1.log
Patch: /patch/patches/29708769/29850993
Log: /u01/app/19.3.0/cfgtoollogs/opatchauto/core/opatch/opatch2019-09-01_17-08-19PM_1.log
Patch: /patch/patches/29708769/29851014
Log: /u01/app/19.3.0/cfgtoollogs/opatchauto/core/opatch/opatch2019-09-01_17-08-19PM_1.log
OPatchauto session completed at Sun Sep  1 17:19:08 2019
Time taken to complete the session 13 minutes, 50 seconds
root@oel7clus2 /patch :

Step 5: Adding the DATA Diskgroup and ACFS Filesystem

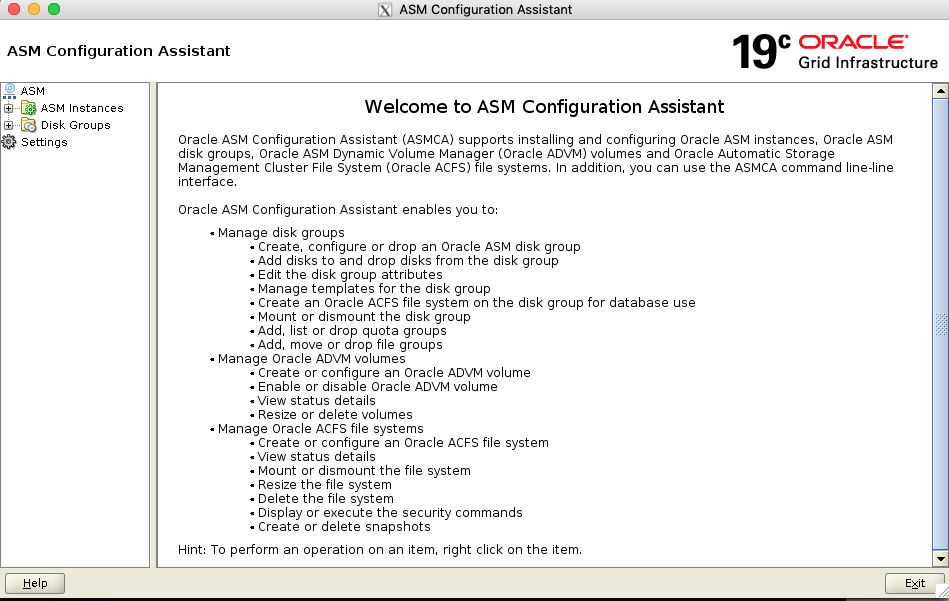

Now that patching is complete, we can review the status of the “asmca” utility to see if we get the options for ADMV and ACFS.
On the first node, I will start “asmca” as the grid user, the following screen will show:

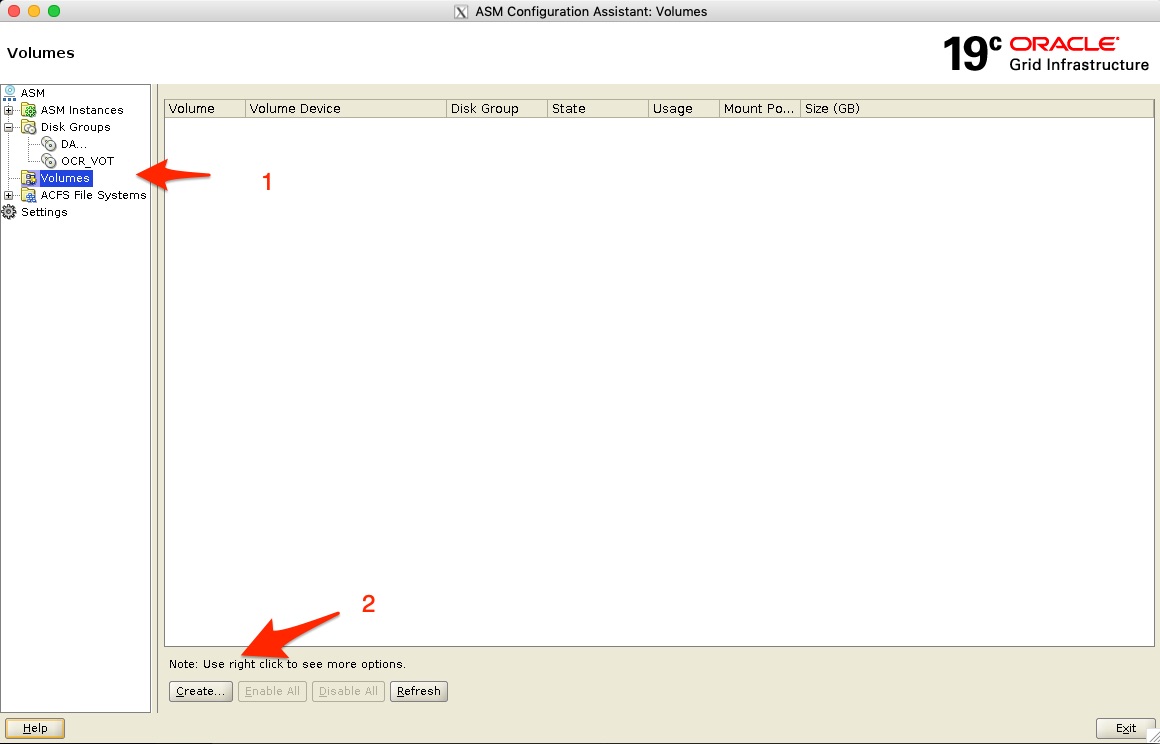

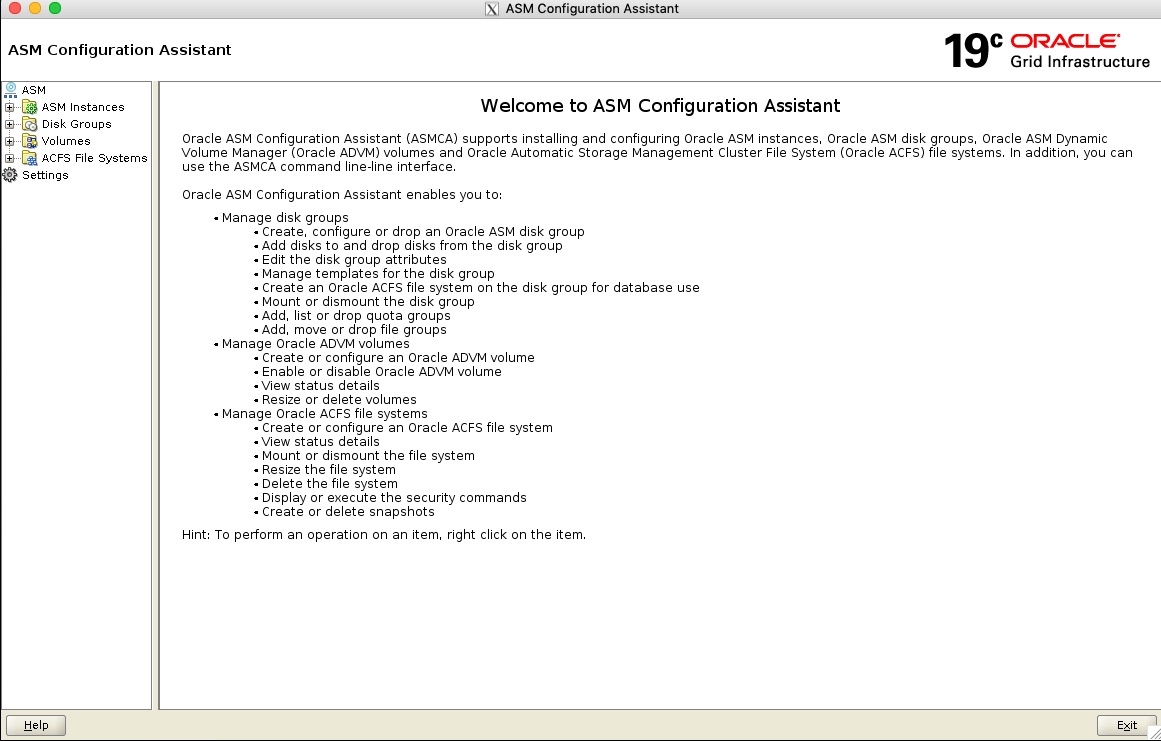

As you can see you now get options to configure Volumes and ACFS filesystems.
But before we get into that, we need to do one thing, we need to create a new ASM diskgroup using our 30GB disk that we shared between the two nodes.

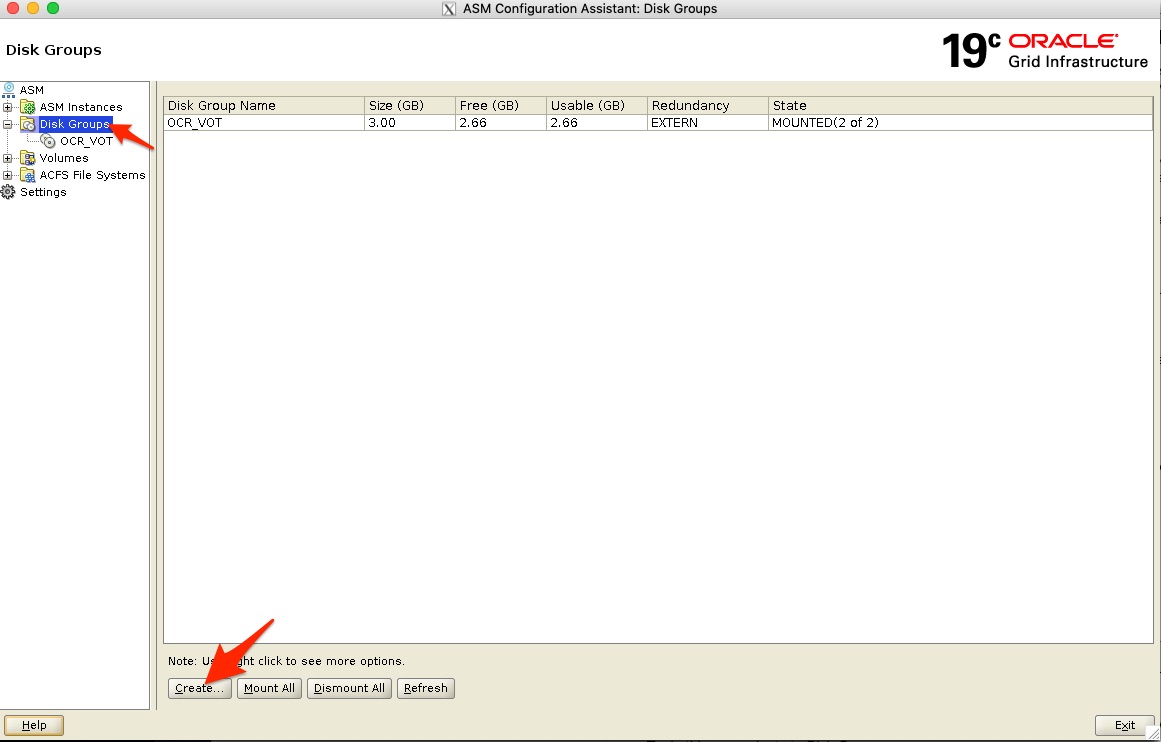

To do this we navigate to Disk Groups and click on “Create"

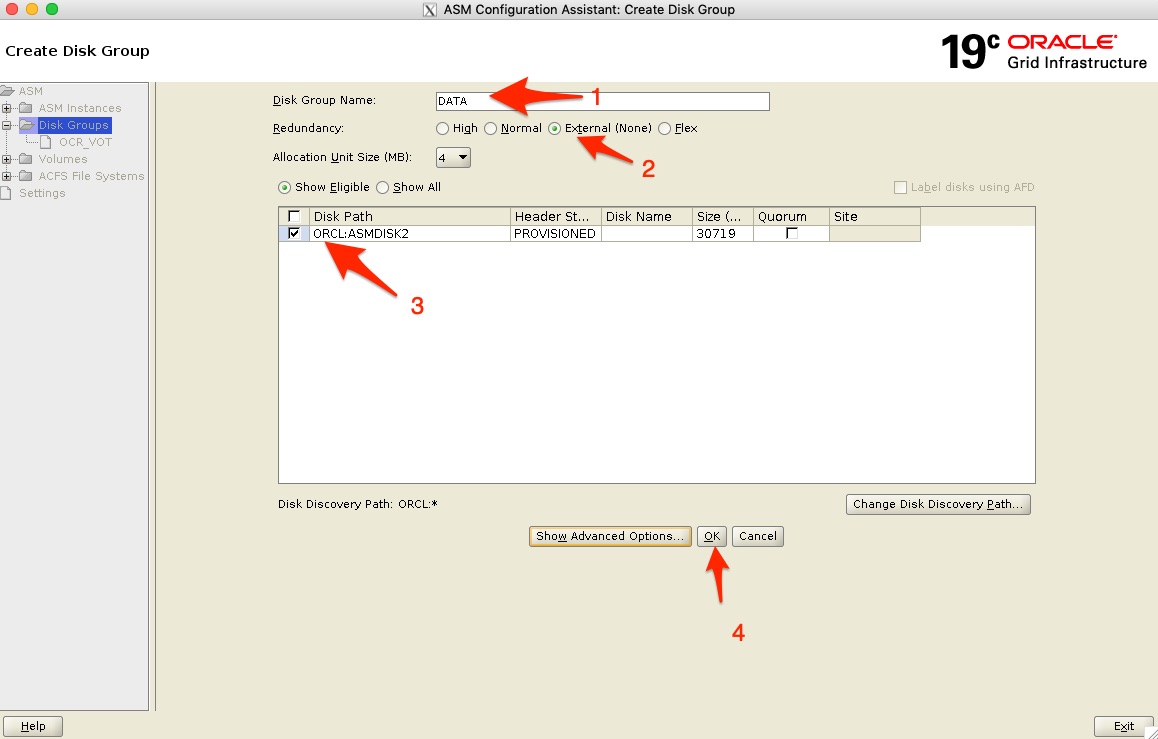

  • Next we specify the Disk group name as “DATA”, again select redundancy as external (none) and then specify the larger disk (ASMDISK2 in this example) then click on OK to start the Disk Group creation which can take a minute.

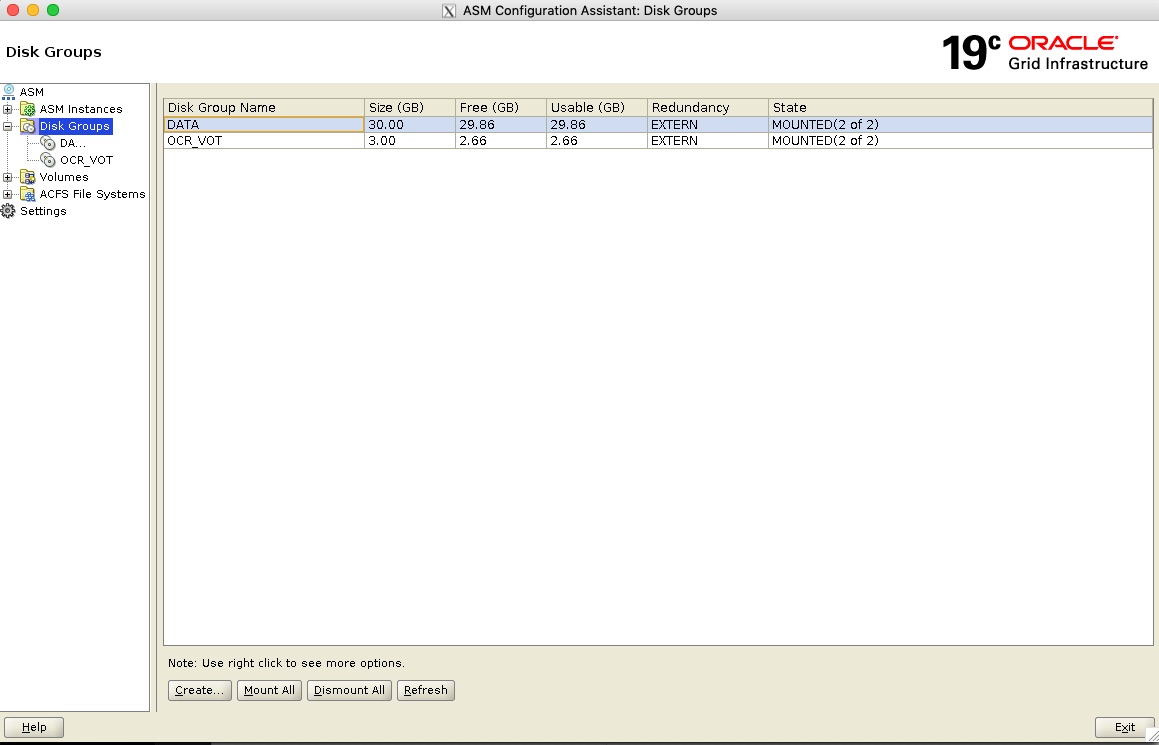

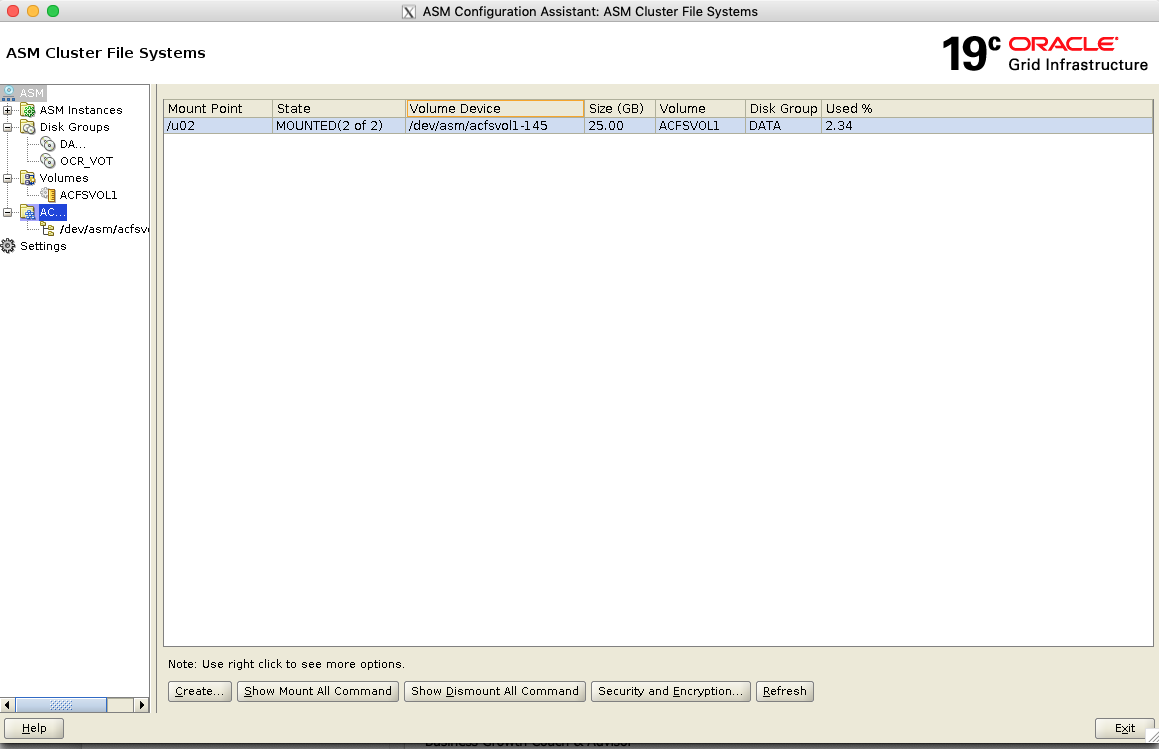

  • When done you will see both your Disk Groups listed and “Mounted” on both systems - meaning it is available on both systems now.

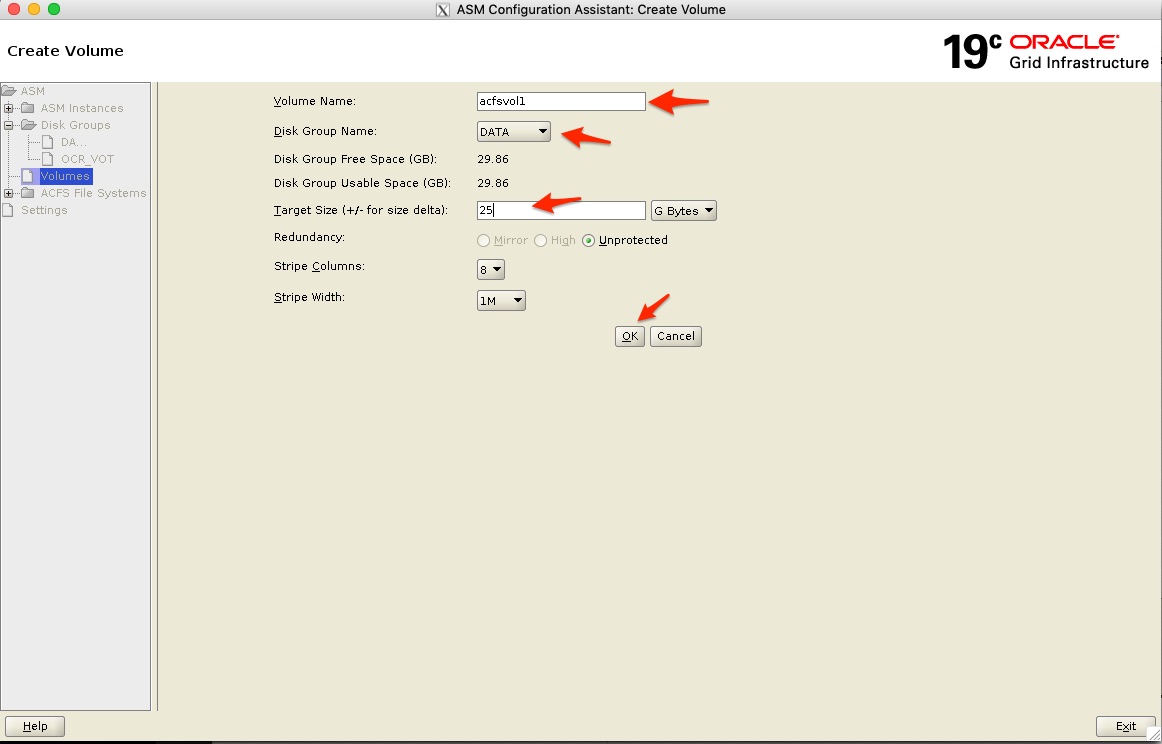

  • Next we want to create a new Volume - I navigate to “Volumes” under Disk Groups and add the details as seen below and click on OK to create it.
  • Next I can now create the cluster file system - ACFS.  Navigate to ACFS File Systems and click on create.

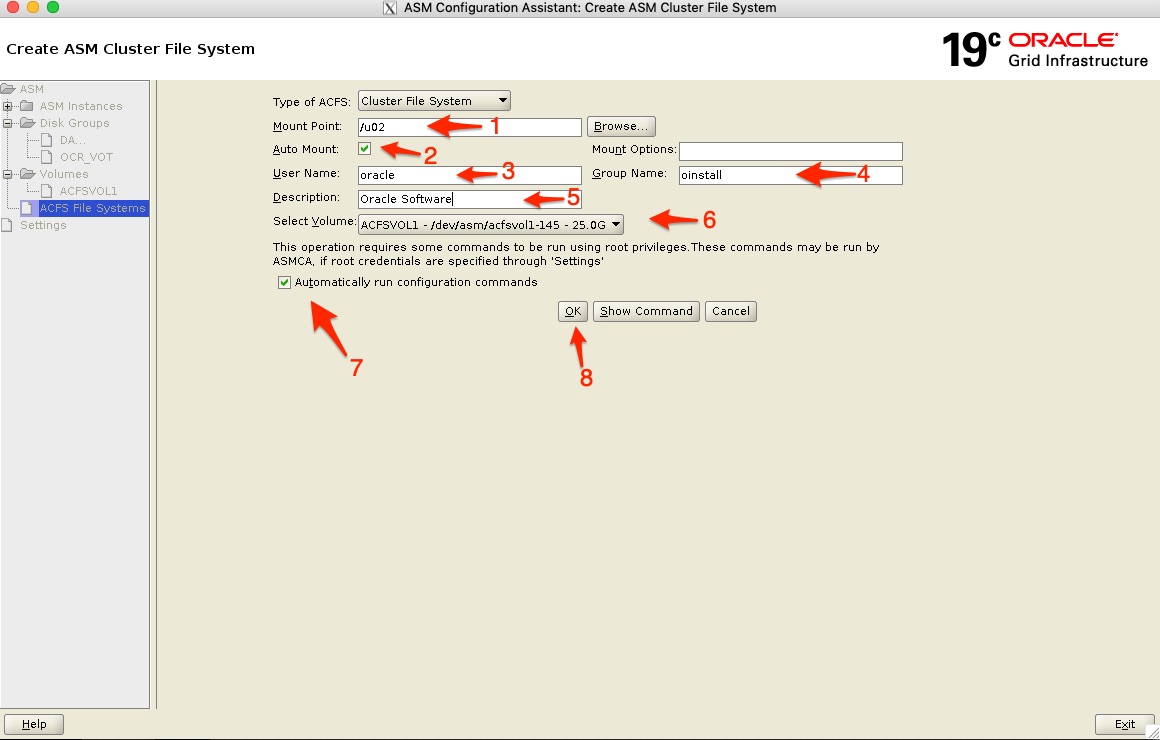

  • Next fill in the details as seen below:
    • 1) is the mount point I will use between the two systems in my case - /u02
    • 2) I specify to auto mount this
    • 3) I want to make sure the Unix “oracle” user owns this folder, so I add the “oracle” user as the owner and the primary group as “oinstall”
    • 4) I just add a description, as I will install the Oracle 19c SE2 database software into /u02 I just specify Oracle Software
    • 6) I select the volume I want to create the filesystem on (created above)
    • 7) Automatically run the required configuration commands are selected and then click on OK (8) to continue
  • This process can take a few minutes, but once done you will see something like below and the mounted is 2 of 2 - meaning that the /u02 filesystem is now mounted on both my cluster nodes.  Excellent!


Now when looking at the two hosts I can see the shared storage /u02 folder mounted
grid@oel7clus1 ~ : df -h
Filesystem             Size  Used Avail Use% Mounted on
devtmpfs               3.8G     0  3.8G   0% /dev
tmpfs                  3.8G  845M  3.0G  22% /dev/shm
tmpfs                  3.8G  257M  3.6G   7% /run
tmpfs                  3.8G     0  3.8G   0% /sys/fs/cgroup
/dev/sda3              6.3G  3.7G  2.3G  63% /
tmpfs                  4.0G   31M  4.0G   1% /tmp
/dev/sda1              488M  279M  174M  62% /boot
/dev/mapper/oravg-u01   40G   10G   28G  27% /u01
tmpfs                  771M     0  771M   0% /run/user/0
/dev/sdd1               20G  7.3G   12G  40% /install
tmpfs                  771M     0  771M   0% /run/user/502
/dev/asm/acfsvol1-145   25G  600M   25G   3% /u02

Step 6:  Installing the Oracle Database SE2 Software


Now we get to the part where we will install the Oracle Database SE2 software into the shared storage /u02 location.
Now it is possible to install the database software on the local disk on both the cluster nodes, example, have the exact same install in /u01/app/oracle/product/19.3.0/dbhome_1 - or you can make use of a shared Oracle Home and have the Oracle Database software installed on the Shared Disk - meaning on /u02.
In this example I will make use of the second option, and install the Oracle Database software in /u02 filesystem.
As the “oracle” Unix account, first create the path for the Oracle Database 19c SE2 software home folder, then extract the downloaded install file into this location, example:
oracle@oel7clus1 ~ : cd /u02
oracle@oel7clus1 /u02 : ls
lost+found
oracle@oel7clus1 /u02 : mkdir -p app/oracle/product/19.3.0/dbhome_1
oracle@oel7clus1 /u02 : cd app/oracle/product/19.3.0/dbhome_1/
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 : ls
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 : unzip -q /install/LINUX.X64_193000_db_home.zip
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 : ls
addnode     bin    css  data    deinstall    dmu     env.ora  install        javavm  jlib  md       nls   OPatch   ord   oui   plsql    R      relnotes     root.sh.old.1  sdk           sqlj      srvm      usm  xdk
apex        clone  ctx  dbjava  demo         drdaas  has      instantclient  jdbc    ldap  mgw      odbc  opmn     ords  owm   precomp  racg   root.sh      runInstaller   slax          sqlpatch  suptools  utl
assistants  crs    cv   dbs     diagnostics  dv      hs       inventory      jdk     lib   network  olap  oracore  oss   perl  QOpatch  rdbms  root.sh.old  schagent.conf  sqldeveloper  sqlplus   ucp       wwg
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 :
The next step is to start the Oracle 19c Database Installer.
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 : ./runInstaller
Launching Oracle Database Setup Wizard...

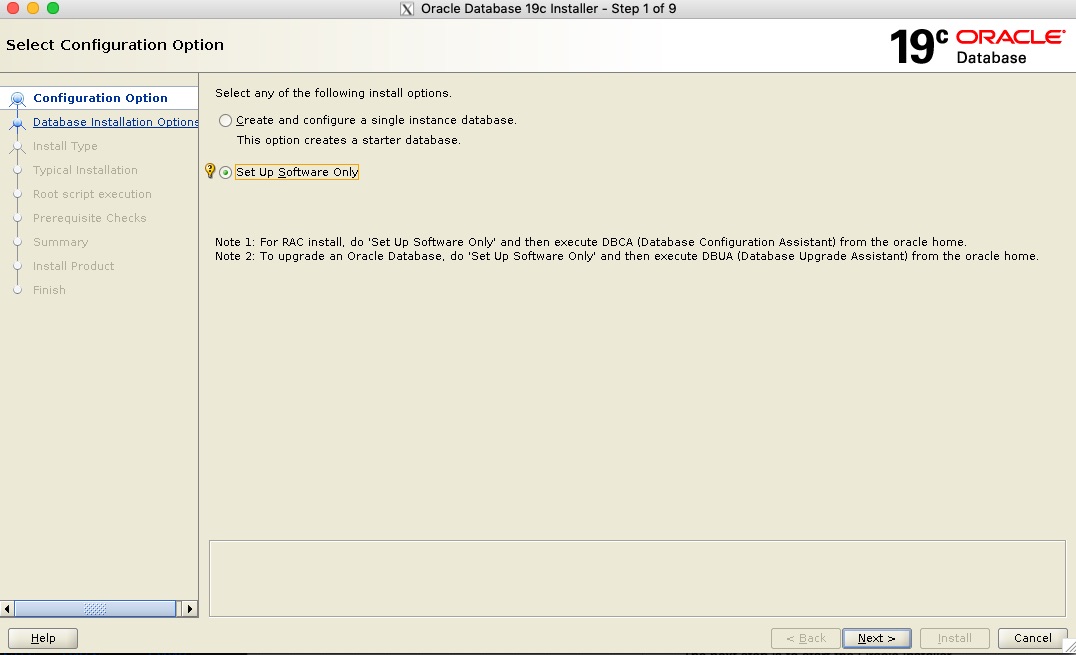

  • The installer start and I select to install the software only.  I will create the database afterwards

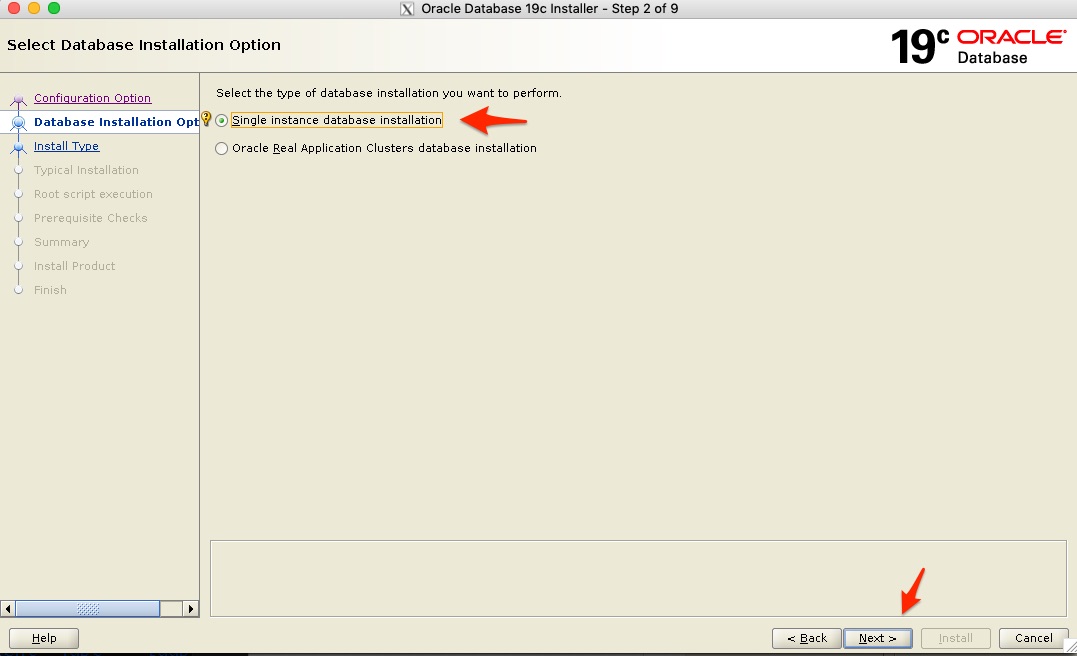

  • Next I want to make sure I do not select Real. Application Cluster (RAC) - but Single Instance, as this is going to be an Oracle SE2 installation where Oracle RAC is not available.

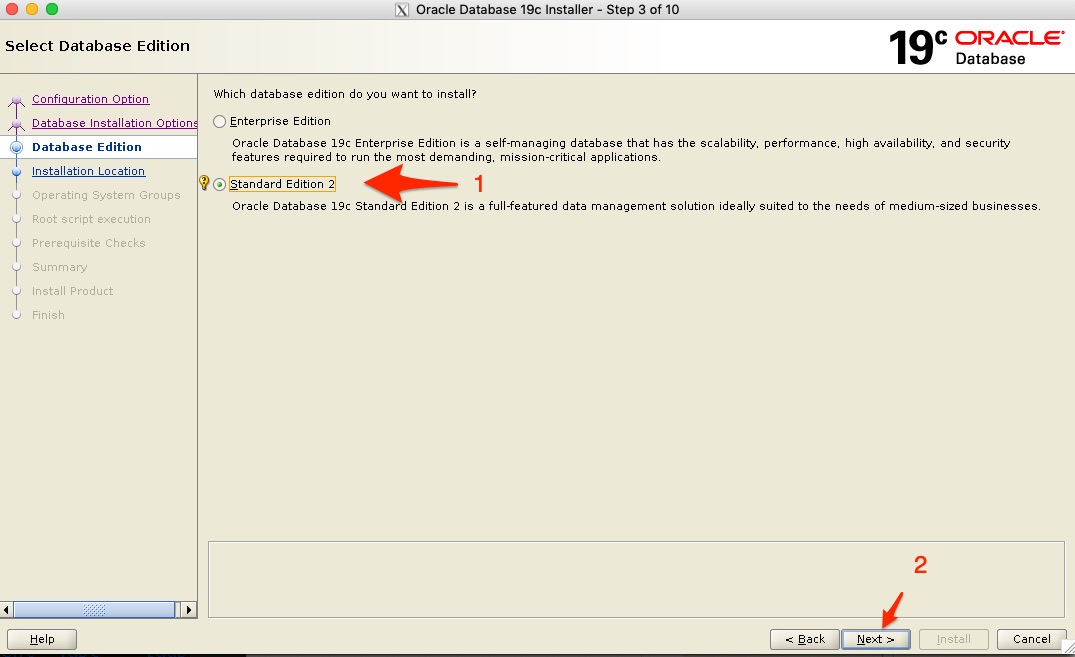

  • Next we get the Database Edition - we select Standard Edition 2 and continue

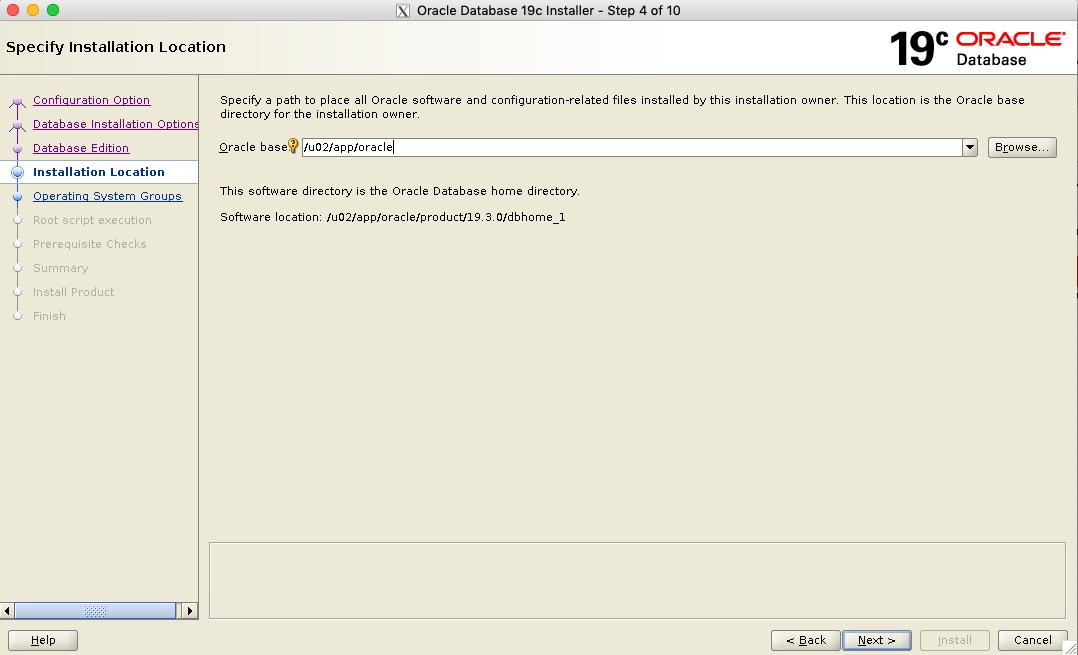

  • Next we make sure we specify the Oracle Base location as the shared folder /u02 and in this case the path is /u02/app/oracle

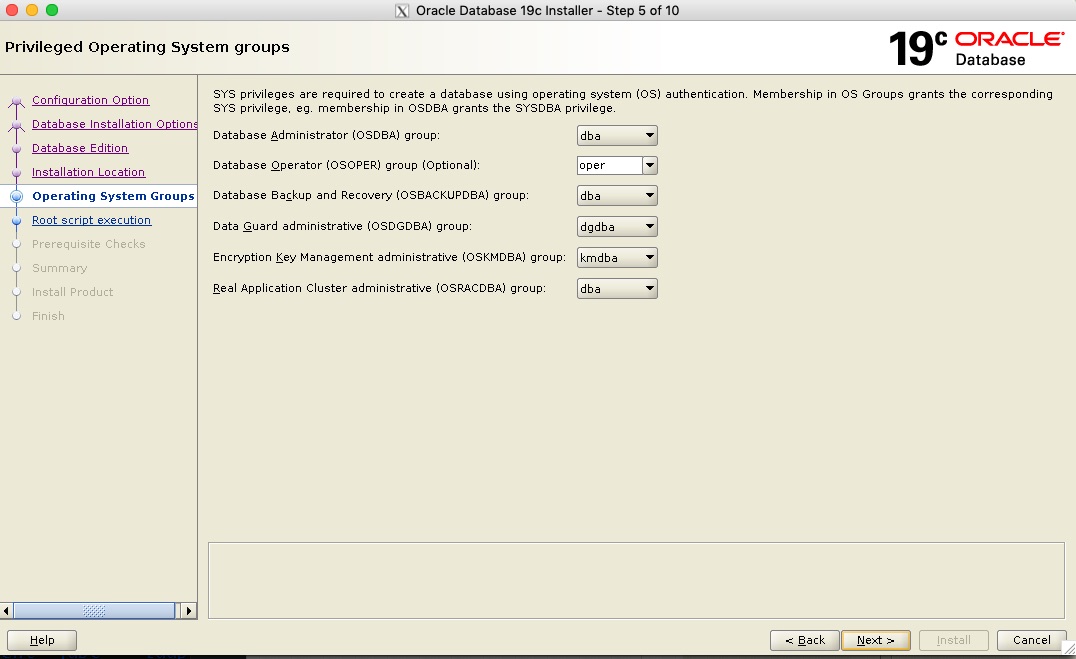

  • Next the “oracle” Unix user groups are detected and auto-populated.

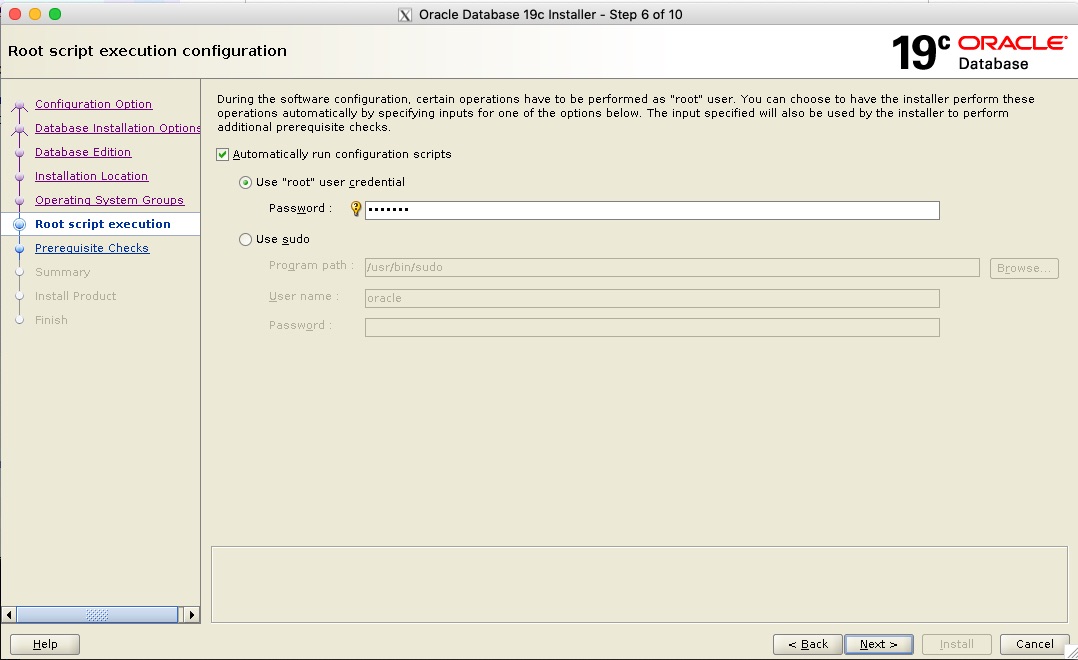

  • Again I want to automatically run the configuration as the root user and supply the details

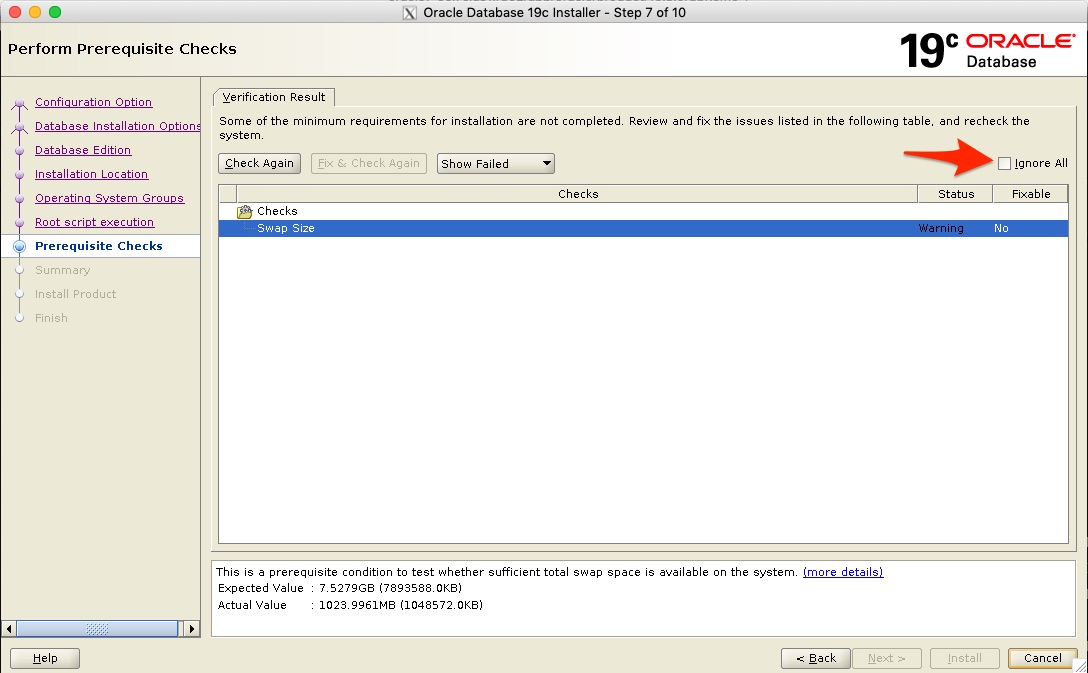

  • Next the prerequisites complain about my swap space, I am ok with that and click on “ignore all” and continue

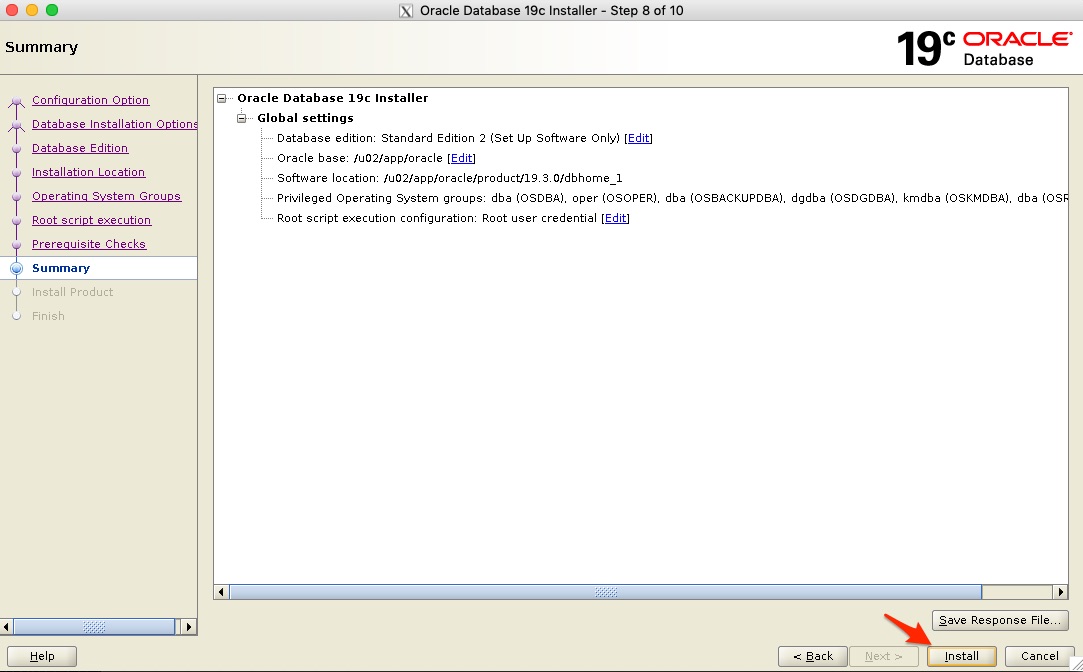

  • We get the summary screen and continue with the installation

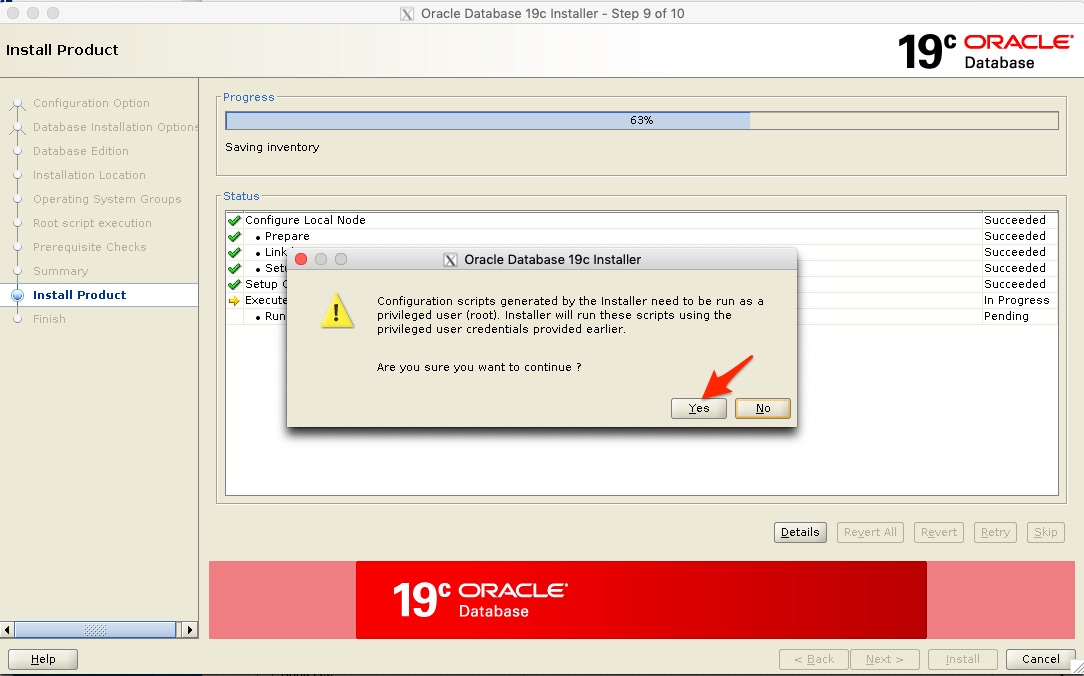

  • This step can take time, you will be asked again to run the configuration - click yes to continue.

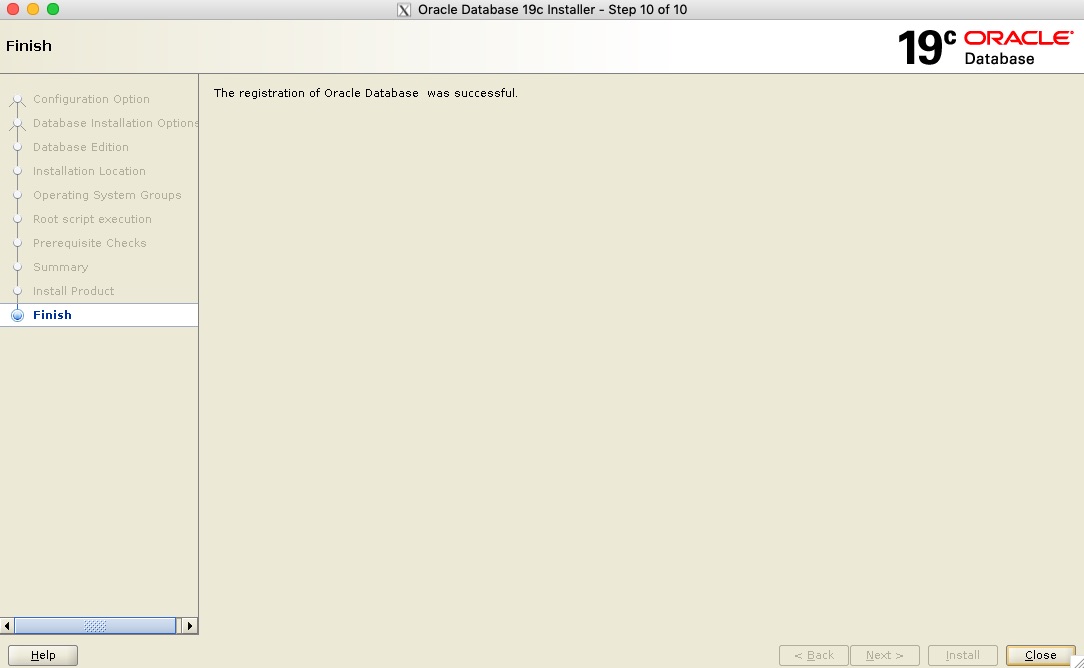

  • Once the installation is done you will get the Finish screen.  You have now successfully installed Oracle Database 19c SE2!

Step 7:  Creating the Database using DBCA


The next step is to create the Single Instance database on the shared storage location - /u02
Now you can use the Graphical Interface of the “Database Configuration Assistant” - DBCA to do this, but in this example I just use the silent option from the command line which is actually really easy to use - since 12c Oracle made some really good changes to the command line option and using these are now super easy to create new databases.
In the command below I will create a database, make sure the datafiles are using Oracle Managed Files (OMF), enable archive log mode (highly recommended!) and I specify the recovery area to also be on the shared storage /u02 location.  I am doing this so that in this example my whole database installation and datafiles are all on the shared storage.  In this example I am also choosing not to use Multitenant.
dbca -createDatabase \
-silent \
-automaticMemoryManagement false \
-characterSet AL32UTF8 \
-createAsContainerDatabase false \
-datafileDestination /u02/oracle/oradata \
-enableArchive true \
-gdbName DEV \
-nationalCharacterSet AL16UTF16 \
-recoveryAreaDestination /u02/oracle/fast_recovery_area \
-redoLogFileSize 100 \
-storageType fs \
-sysPassword Kiwi123 \
-systemPassword Kiwi123 \
-templateName General_Purpose.dbc \
-totalMemory 850 \
-useOMF true
When I execute the above, I get the following output:
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 : . oraenv
ORACLE_SID = [oracle] ? a
ORACLE_HOME = [/home/oracle] ? /u02/app/oracle/product/19.3.0/dbhome_1
The Oracle base has been changed from /u01/app/oracle to /u02/app/oracle
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 : dbca -createDatabase \
oracle@oel7clus1 --> -silent \
oracle@oel7clus1 --> -automaticMemoryManagement false \
oracle@oel7clus1 --> -characterSet AL32UTF8 \
oracle@oel7clus1 --> -createAsContainerDatabase false \
oracle@oel7clus1 --> -datafileDestination /u02/oracle/oradata \
oracle@oel7clus1 --> -enableArchive true \
oracle@oel7clus1 --> -gdbName DEV \
oracle@oel7clus1 --> -nationalCharacterSet AL16UTF16 \
oracle@oel7clus1 --> -recoveryAreaDestination /u02/oracle/fast_recovery_area \
oracle@oel7clus1 --> -redoLogFileSize 100 \
oracle@oel7clus1 --> -storageType fs \
oracle@oel7clus1 --> -sysPassword Kiwi123 \
oracle@oel7clus1 --> -systemPassword Kiwi123 \
oracle@oel7clus1 --> -templateName General_Purpose.dbc \
oracle@oel7clus1 --> -totalMemory 850 \
oracle@oel7clus1 --> -useOMF true
[WARNING] [DBT-06208] The 'SYS' password entered does not conform to the Oracle recommended standards.
   CAUSE:
a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
b.The password entered is a keyword that Oracle does not recommend to be used as password
   ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
[WARNING] [DBT-06208] The 'SYSTEM' password entered does not conform to the Oracle recommended standards.
   CAUSE:
a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
b.The password entered is a keyword that Oracle does not recommend to be used as password
   ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
Prepare for db operation
10% complete
Registering database with Oracle Restart
14% complete
Copying database files
43% complete
Creating and starting Oracle instance
45% complete
49% complete
53% complete
56% complete
62% complete
Completing Database Creation
68% complete
70% complete
71% complete
Executing Post Configuration Actions
100% complete
Database creation complete. For details check the logfiles at:
/u02/app/oracle/cfgtoollogs/dbca/DEV.
Database Information:
Global Database Name:DEV
System Identifier(SID):DEV
Look at the log file "/u02/app/oracle/cfgtoollogs/dbca/DEV/DEV.log" for further details.
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 :
The above process can take a few minutes depending on your hardware, but once done, you have an Oracle Database 19c SE2 running from the Shared Storage on node one in the cluster!  You can check this with the srvctl status option as shown below.
oracle@oel7clus1 /u02/app/oracle/product/19.3.0/dbhome_1 : srvctl status database -d DEV -v
Instance DEV is running on node oel7clus1. Instance status: Open.
Now this does not stop there, there is a lot more to do, but you are almost there.
Next we need to make a few changes to allow for the Active/Passive switch of our services


Step 8:  Adding a Virtual IP


Adding a Virtual IP that will be used by Dbvisit Standby and we can also build a dependancy on this IP for the Database and Dbvisit Standby resources to be added later.  Meaning - if you relocate or switch the VIP to the other node, the resources will be stopped and started on the other node.

You could also use this IP address and create a new dedicated listener for the database.  Now the IP address we will use in this example is 10.0.2.28 - it is added to the DNS and is known as "oel7clus-dbvip"

The following commands are used to create the Virtual IP:


root@oel7clus1 ~ : which appvipcfg
/u01/app/19.3.0/bin/appvipcfg
root@oel7clus1 ~ :

root@oel7clus1 ~ : appvipcfg create -network=1 -ip=10.0.2.28 -vipname=oel7clus-dbvip -user=root
Using configuration parameter file: /u01/app/19.3.0/crs/install/crsconfig_params
The log of current session can be found at:
  /u01/app/grid/crsdata/oel7clus1/scripts/appvipcfg.log

root@oel7clus1 ~ : crsctl setperm resource oel7clus-dbvip -u user:oracle:r-x
root@oel7clus1 ~ :

root@oel7clus1 ~ : crsctl status resource oel7clus-dbvip -v
NAME=oel7clus-dbvip
TYPE=app.appviptypex2.type
LAST_SERVER=
STATE=OFFLINE
TARGET=OFFLINE
CARDINALITY_ID=1
OXR_SECTION=0
RESTART_COUNT=0
FAILURE_COUNT=0
FAILURE_HISTORY=
ID=oel7clus-dbvip 1 1
INCARNATION=0
LAST_RESTART=NEVER
LAST_STATE_CHANGE=NEVER
STATE_DETAILS=
INTERNAL_STATE=STABLE
TARGET_SERVER=
RESOURCE_GROUP=
INSTANCE_COUNT=1

root@oel7clus1 ~ : crsctl start resource oel7clus-dbvip -n oel7clus1
CRS-2672: Attempting to start 'oel7clus-dbvip' on 'oel7clus1'
CRS-2676: Start of 'oel7clus-dbvip' on 'oel7clus1' succeeded
root@oel7clus1 ~ :


root@oel7clus1 ~ : crsctl status resource oel7clus-dbvip -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
oel7clus-dbvip
      1        ONLINE  ONLINE       oel7clus1                STABLE
--------------------------------------------------------------------------------
root@oel7clus1 ~ :

Now that we have the Virtual IP running on node 1 (oel7clus1) we can move onto the next step which is to modify the database resource.


Step 9:  The Database Resource Modifications


One of the next challenges you will run into with the above configuration is when you try and fail-over or relocate the database instance from the first node in the cluster to the second node.

As the DBCA register the database as a resource, you can view the database details using the srvctl utility.  Example:

oracle@oel7clus1 ~ : srvctl config database -d DEV
Database unique name: DEV
Database name: DEV
Oracle home: /u02/app/oracle/product/19.3.0/dbhome_1
Oracle user: oracle
Spfile: /u02/app/oracle/product/19.3.0/dbhome_1/dbs/spfileDEV.ora
Password file:
Domain:
Start options: open
Stop options: immediate
Database role: PRIMARY
Management policy: AUTOMATIC
Server pools:
Disk Groups:
Mount point paths: /u02
Services:
Type: SINGLE
OSDBA group: dba
OSOPER group: oper
Database instance: DEV
Configured nodes: oel7clus1
CSS critical: no
CPU count: 0
Memory target: 0
Maximum memory: 0
Default network number for database services:
Database is administrator managed
oracle@oel7clus1 ~ :

Now if you just attempt to perform a relocate you will get the following error:

oracle@oel7clus1 ~ : srvctl relocate database -d DEV -n oel7clus2
PRCD-1146 : Database DEV is not a RAC One Node database

Ok, so we are not using Oracle RAC and we are not using Oracle RAC One Node, we just have a stock standard single instance database that was created on shared storage.

So what can we do now?  You might think that you are now stuck, but there is actually another option here.  You can remove the database resource, and re-add it as standard resource.

Lets first look at the resource as it is now:

oracle@oel7clus1 ~ : . oraenv
ORACLE_SID = [DEV] ? +ASM1
The Oracle base has been changed from /u02/app/oracle to /u01/app/grid

oracle@oel7clus1 ~ : crsctl status resource ora.dev.db -v
NAME=ora.dev.db
TYPE=ora.database.type
LAST_SERVER=oel7clus1
STATE=ONLINE on oel7clus1
TARGET=ONLINE
CARDINALITY_ID=1
OXR_SECTION=0
RESTART_COUNT=0
FAILURE_COUNT=0
FAILURE_HISTORY=
ID=ora.dev.db 1 1
INCARNATION=2
LAST_RESTART=09/10/2019 11:04:31
LAST_STATE_CHANGE=09/10/2019 11:04:31
STATE_DETAILS=Open,HOME=/u02/app/oracle/product/19.3.0/dbhome_1
INTERNAL_STATE=STABLE
TARGET_SERVER=oel7clus1
RESOURCE_GROUP=
INSTANCE_COUNT=1

As you can see the type is "ora.database.type"

What we can do now is remove this resource, and then create our own custom resource to allow for the database instance to be moved between the nodes.

This will require a few steps to get this done.

  1. Remove the Database Resource (Outage Required)
    • First we stop the database, then we remove it as a resource.  This can be done with the srvctl utility.
    • Below are the commands executed to perform these tasks:

      oracle@oel7clus1 ~ : srvctl stop database -d DEV
      oracle@oel7clus1 ~ : srvctl status database -d DEV
      Instance DEV is not running on node oel7clus1
      oracle@oel7clus1 ~ : srvctl remove database -d DEV
      Remove the database DEV? (y/[n]) y
      oracle@oel7clus1 ~ :
      oracle@oel7clus1 ~ : srvctl status database -d DEV
      PRCD-1120 : The resource for database DEV could not be found.
      PRCR-1001 : Resource ora.dev.db does not exist


  2. Next we need to create an "Action Script"
    • This is a script that will be executed by Clusterware to start and stop the cluster resource.  Now you can make this complex, or you can keep it simple, which is usually the best way to start.
    • Here is a sample action script used:

      #!/bin/bash
      #
      # SAMPLE Action Script to start an Oracle Database

      ##############################################
      #  Function to change database environments
      # Description:
      # Use oraenv to set the environment if needed
      # This is optional to set the environment
      ##############################################

      ## set following to ensure oraenv is picked up from /usr/local/bin
      export PATH=/usr/local/bin:$PATH
      export NLS_DATE_FORMAT='DD:MM:YYYY:HH24:MI:SS'


      ## Setting environment for the Oracle Instance
      set_env ()
      {
        export ORAENV_ASK=NO
        export ORACLE_SID=$1
        . oraenv >> /dev/null
        export ORAENV_ASK=YES
      }


      #################
      ## Main Section
      #################

      # This is logged to CRSD agent log file
      echo "`date` Action script '$_CRS_ACTION_SCRIPT' for resource [$_CRS_NAME] called for action $1"

      # set environment
      set_env DEV

      case "$1" in
           'start')
      sqlplus -s /nolog <<!EOF
         connect / as sysdba
         startup;
      exit;
      !EOF
                 RET=0
                 echo "Running start DEV database resource with return code $RET"
           ;;

           'stop')
      sqlplus -s /nolog <<!EOF
         connect / as sysdba
         shutdown immediate;
      exit;
      !EOF
                 RET=0
                 echo "Running stop DEV database resource with return code $RET"
           ;;

           'check')
                 NUM=`ps -ef | grep ora_pmon_DEV | grep -v grep | wc -l`
                 if [ $NUM = 0 ]; then
                   ## return code 1 for check means OFFLINE
                   RET=1
                 else
                   ## return code 0 for check means ONLINE
                   RET=0
                 fi
                 echo "Running check DEV database resource with return code $RET"
           ;;

           'clean')
      sqlplus -s /nolog <<!EOF
         connect / as sysdba
         shutdown abort;
      exit;
      !EOF
                 RET=0
                 echo "Running clean DEV database resource with return code $RET"
           ;;

           *)
                 RET=1
                 echo "Usage: db-crs.sh start|stop|check|clean"
           ;;
      esac

      if [ $RET -eq 0 ]; then
        exit 0
      else
        exit 1
      fi


    • Now we need to place this script on the shared storage as it needs to be available for execution from either one of the cluster nodes.  In this example I used "/u02/app/oracle/admin/DEV" - now remember /u02 is my shared ACFS filesystem that is mounted on both nodes
    • Here are the steps:
      oracle@oel7clus1 /u02/app/oracle/admin/DEV : mkdir scripts
      oracle@oel7clus1 /u02/app/oracle/admin/DEV : cd scripts
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : vi db-crs.sh
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : chmod u+x db-crs.sh
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : ./db-crs.sh
      Tue Sep 10 11:44:33 NZST 2019 Action script '' for resource [] called for action
      Usage: db-crs.sh start|stop|check|clean


    • Now remember my database DEV is down at the moment, but I can always use this script to start and stop it quickly as a test.
    • Now after the below I am happy that my script is executing correct, and yes I could add a lot more checks and output to the script, but as a basic starting point this will do.

      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : ./db-crs.sh start
      Tue Sep 10 11:46:41 NZST 2019 Action script '' for resource [] called for action start
      ORACLE instance started.

      Total System Global Area  671088184 bytes
      Fixed Size		    8900152 bytes
      Variable Size		  197132288 bytes
      Database Buffers	  457179136 bytes
      Redo Buffers		    7876608 bytes
      Database mounted.
      Database opened.
      Running start DEV database resource with return code 0

      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : ./db-crs.sh check
      Tue Sep 10 11:47:07 NZST 2019 Action script '' for resource [] called for action check
      Running check DEV database resource with return code 0

      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : ./db-crs.sh stop
      Tue Sep 10 11:47:12 NZST 2019 Action script '' for resource [] called for action stop
      Database closed.
      Database dismounted.
      ORACLE instance shut down.
      Running stop DEV database resource with return code 0
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts :



  3. Next, create a cluster resource file with the details of the new resource we want to add.  This just simplify the options to be passed in via the command line.  You could do it all as one big command, but why not use a file that you can just reference and then easily update to your needs where required.
    • The following example was used.  You will see that it states a number of key parameters such as pointing at the action script to be used (created above).
    • Now you can go and review these parameters in the Oracle Documentation to find the right values for your configuration, but I am starting simple here to get you going.  Remember always test on a test environment first before you do things in production, that way you can test various different options without affecting production, then once you find the parameters that work for you, and they are tested, you can then execute it in production.

    • You might want to review the START_DEPENDENCIES and STOP_DEPENDENCIES as you might want to specify different values here to meet your requirements.
      NAME = DEV.db
      TYPE = cluster_resource
      DESCRIPTION = Single Instance Oracle Database resource
      ACL = owner:oracle:rwx,pgrp:oinstall:rwx,other::r--
      ACTION_SCRIPT = /u02/app/oracle/admin/DEV/scripts/db-crs.sh
      PLACEMENT = restricted
      ACTIVE_PLACEMENT = 1
      AUTO_START = restore
      CARDINALITY = 1
      CHECK_INTERVAL = 10
      DEGREE = 1
      ENABLED = 1
      HOSTING_MEMBERS = oel7clus1 oel7clus2
      LOGGING_LEVEL = 1
      RESTART_ATTEMPTS = 1
      START_DEPENDENCIES = hard (ora.data.acfsvol1.acfs,oel7clus-dbvip) weak (type:ora.listener.type,global:type:ora.scan_listener.type,uniform:ora.ons) pullup (ora.data.acfsvol1.acfs)
      START_TIMEOUT = 600
      STOP_DEPENDENCIES = hard (shutdown:ora.data.acfsvol1.acfs, oel7clus-dbvip)
      STOP_TIMEOUT = 600
      UPTIME_THRESHOLD = 1h


  4. Adding and starting the resource
    • Next we want to add the new resource and once done start it:
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : crsctl add resource DEV.db -type cluster_resource -file /u02/app/oracle/admin/DEV/scripts/add-DEV-resource.sc
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : crsctl status resource DEV.db
      NAME=DEV.db
      TYPE=cluster_resource
      TARGET=OFFLINE
      STATE=OFFLINE

      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : crsctl status resource DEV.db -v
      NAME=DEV.db
      TYPE=cluster_resource
      LAST_SERVER=
      STATE=OFFLINE
      TARGET=OFFLINE
      CARDINALITY_ID=1
      OXR_SECTION=0
      RESTART_COUNT=0
      FAILURE_COUNT=0
      FAILURE_HISTORY=
      ID=DEV.db 1 1
      INCARNATION=0
      LAST_RESTART=NEVER
      LAST_STATE_CHANGE=NEVER
      STATE_DETAILS=
      INTERNAL_STATE=STABLE
      TARGET_SERVER=
      RESOURCE_GROUP=
      INSTANCE_COUNT=1

      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : crsctl start resource DEV.db
      CRS-2672: Attempting to start 'DEV.db' on 'oel7clus1'
      CRS-2676: Start of 'DEV.db' on 'oel7clus1' succeeded

      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : crsctl status resource DEV.db -v
      NAME=DEV.db
      TYPE=cluster_resource
      LAST_SERVER=oel7clus1
      STATE=ONLINE on oel7clus1
      TARGET=ONLINE
      CARDINALITY_ID=1
      OXR_SECTION=0
      RESTART_COUNT=0
      FAILURE_COUNT=0
      FAILURE_HISTORY=
      ID=DEV.db 1 1
      INCARNATION=1
      LAST_RESTART=09/10/2019 12:03:17
      LAST_STATE_CHANGE=09/10/2019 12:03:17
      STATE_DETAILS=
      INTERNAL_STATE=STABLE
      TARGET_SERVER=oel7clus1
      RESOURCE_GROUP=
      INSTANCE_COUNT=1


    • Now if we review the resources after the above we can see the following:
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : crsctl status resource -t
      --------------------------------------------------------------------------------
      Name           Target  State        Server                   State details
      --------------------------------------------------------------------------------
      Local Resources
      --------------------------------------------------------------------------------
      ora.DATA.ACFSVOL1.advm
                     ONLINE  ONLINE       oel7clus1                STABLE
                     ONLINE  ONLINE       oel7clus2                STABLE
      ora.LISTENER.lsnr
                     ONLINE  ONLINE       oel7clus1                STABLE
                     ONLINE  ONLINE       oel7clus2                STABLE
      ora.chad
                     ONLINE  ONLINE       oel7clus1                STABLE
                     ONLINE  ONLINE       oel7clus2                STABLE
      ora.data.acfsvol1.acfs
                     ONLINE  ONLINE       oel7clus1                mounted on /u02,STAB
                                                                   LE
                     ONLINE  ONLINE       oel7clus2                mounted on /u02,STAB
                                                                   LE
      ora.net1.network
                     ONLINE  ONLINE       oel7clus1                STABLE
                     ONLINE  ONLINE       oel7clus2                STABLE
      ora.ons
                     ONLINE  ONLINE       oel7clus1                STABLE
                     ONLINE  ONLINE       oel7clus2                STABLE
      ora.proxy_advm
                     ONLINE  ONLINE       oel7clus1                STABLE
                     ONLINE  ONLINE       oel7clus2                STABLE
      --------------------------------------------------------------------------------
      Cluster Resources
      --------------------------------------------------------------------------------
      DEV.db
            1        ONLINE  ONLINE       oel7clus1                STABLE
      oel7clus-dbvip
            1        ONLINE  ONLINE       oel7clus1                STABLE
      ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
            1        ONLINE  ONLINE       oel7clus1                STABLE
            2        ONLINE  ONLINE       oel7clus2                STABLE
            3        ONLINE  OFFLINE                               STABLE
      ora.DATA.dg(ora.asmgroup)
            1        ONLINE  ONLINE       oel7clus1                STABLE
            2        ONLINE  ONLINE       oel7clus2                STABLE
            3        ONLINE  OFFLINE                               STABLE
      ora.LISTENER_SCAN1.lsnr
            1        ONLINE  ONLINE       oel7clus2                STABLE
      ora.LISTENER_SCAN2.lsnr
            1        ONLINE  ONLINE       oel7clus1                STABLE
      ora.LISTENER_SCAN3.lsnr
            1        ONLINE  ONLINE       oel7clus1                STABLE
      ora.OCR_VOT.dg(ora.asmgroup)
            1        ONLINE  ONLINE       oel7clus1                STABLE
            2        ONLINE  ONLINE       oel7clus2                STABLE
            3        OFFLINE OFFLINE                               STABLE
      ora.asm(ora.asmgroup)
            1        ONLINE  ONLINE       oel7clus1                Started,STABLE
            2        ONLINE  ONLINE       oel7clus2                Started,STABLE
            3        OFFLINE OFFLINE                               STABLE
      ora.asmnet1.asmnetwork(ora.asmgroup)
            1        ONLINE  ONLINE       oel7clus1                STABLE
            2        ONLINE  ONLINE       oel7clus2                STABLE
            3        OFFLINE OFFLINE                               STABLE
      ora.cvu
            1        ONLINE  ONLINE       oel7clus1                STABLE
      ora.oel7clus1.vip
            1        ONLINE  ONLINE       oel7clus1                STABLE
      ora.oel7clus2.vip
            1        ONLINE  ONLINE       oel7clus2                STABLE
      ora.qosmserver
            1        ONLINE  ONLINE       oel7clus1                STABLE
      ora.scan1.vip
            1        ONLINE  ONLINE       oel7clus2                STABLE
      ora.scan2.vip
            1        ONLINE  ONLINE       oel7clus1                STABLE
      ora.scan3.vip
            1        ONLINE  ONLINE       oel7clus1                STABLE
      --------------------------------------------------------------------------------
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts :


  5. Updating /etc/oratab
    • Now I know a number of DBAs prefer not to use the /etc/oratab file, but rather set things manually on their environment.  I am not sure why you want to make things difficult, if you just add one entry into the /etc/oratab file for your database, you can easily move between environments using the ". oraenv" command.
    • Now in my /etc/oratab files I have the following entries at the bottom:
      • Node 1: oel7clus1
        ...
        +ASM1:/u01/app/19.3.0:N
        DEV:/u02/app/oracle/product/19.3.0/dbhome_1:N
      • Node 2: oel7clus2
        ...
        +ASM2:/u01/app/19.3.0:N
        DEV:/u02/app/oracle/product/19.3.0/dbhome_1:N
  6. Next we can test relocating our database resource.
    1. There is a few options here, but the first is you can just force the relocate of the database DEV.db resource and it will move the Virtual IP we added earlier as well as there is a HARD dependancy between them.
      oracle@oel7clus1 /u02/app/oracle/admin/DEV/scripts : crsctl relocate resource DEV.db -f
      CRS-2673: Attempting to stop 'DEV.db' on 'oel7clus1'
      CRS-2677: Stop of 'DEV.db' on 'oel7clus1' succeeded
      CRS-2673: Attempting to stop 'oel7clus-dbvip' on 'oel7clus1'
      CRS-2677: Stop of 'oel7clus-dbvip' on 'oel7clus1' succeeded
      CRS-2672: Attempting to start 'oel7clus-dbvip' on 'oel7clus2'
      CRS-2676: Start of 'oel7clus-dbvip' on 'oel7clus2' succeeded
      CRS-2672: Attempting to start 'DEV.db' on 'oel7clus2'
      CRS-2676: Start of 'DEV.db' on 'oel7clus2' succeeded


    2. Or you can relocate the Virtual IP address (oel7clus-dbvip) and then the database will be moved as well  due to the dependancy:
    3. Now in the example below we run on the second node (oel7clus2) and we set the environment then execute the crsctl status resource command on the DEV.db and oel7clus-dbvip resources.  We can see they are running on the second node, so the next step is to execute the relocate command on the oel7clus-dbvip Virtual IP:

      oracle@oel7clus2 ~ : . oraenv
      ORACLE_SID = [oracle] ? +ASM2
      The Oracle base has been changed from /u01/app/oracle to /u01/app/grid

      oracle@oel7clus2 ~ : crsctl status resource DEV.db -t
      --------------------------------------------------------------------------------
      Name           Target  State        Server                   State details
      --------------------------------------------------------------------------------
      Cluster Resources
      --------------------------------------------------------------------------------
      DEV.db
            1        ONLINE  ONLINE       oel7clus2                STABLE
      --------------------------------------------------------------------------------
      oracle@oel7clus2 ~ : crsctl status resource oel7clus-dbvip -t
      --------------------------------------------------------------------------------
      Name           Target  State        Server                   State details
      --------------------------------------------------------------------------------
      Cluster Resources
      --------------------------------------------------------------------------------
      oel7clus-dbvip
            1        ONLINE  ONLINE       oel7clus2                STABLE
      --------------------------------------------------------------------------------

      oracle@oel7clus2 ~ :
      oracle@oel7clus2 ~ : crsctl relocate resource oel7clus-dbvip -f
      CRS-2673: Attempting to stop 'DEV.db' on 'oel7clus2'
      CRS-2677: Stop of 'DEV.db' on 'oel7clus2' succeeded
      CRS-2673: Attempting to stop 'oel7clus-dbvip' on 'oel7clus2'
      CRS-2677: Stop of 'oel7clus-dbvip' on 'oel7clus2' succeeded
      CRS-2672: Attempting to start 'oel7clus-dbvip' on 'oel7clus1'
      CRS-2676: Start of 'oel7clus-dbvip' on 'oel7clus1' succeeded
      CRS-2672: Attempting to start 'DEV.db' on 'oel7clus1'
      CRS-2676: Start of 'DEV.db' on 'oel7clus1' succeeded


  7. Now at this stage we have the database added as a resource and it has a dependancy on the Virtual IP - oel7clus-dbvip.  Now you can add a listener that use this virtual IP and move that between the nodes as well.  I will leave this to you to perform this task if you require it, but next we will focus on adding Dbvisit Standby to the configuration, adding its components to Clusterware as resources as well.


Step 10: Installing Dbvisit Standby

In this section we will perform a Dbvisit Standby installation on the two node cluster but also on a single server that will be used as the standby server.

  1. We download the latest version of the Dbvisit Standby which at the time of writing this is: dbvisit-standby9.0.02-el7.zip
  2. The file is copied to the 1st node in the cluster (oel7clus1) under the user "oracle" home to a sub folder 9.0.  This is just a temporary folder from where we will perform the installation.
  3. Below are the steps followed to install the Dbvisit Standby Core components onto the shared storage /u02
    1. Example:
    2. oracle@oel7clus1 ~ : cd 9.0
      oracle@oel7clus1 ~/9.0 : ls
      dbvisit-standby9.0.02-el7.zip

      oracle@oel7clus1 ~/9.0 : unzip dbvisit-standby9.0.02-el7.zip
      Archive:  dbvisit-standby9.0.02-el7.zip
        inflating: dbvisit-standby9.0.02-el7.tar

      oracle@oel7clus1 ~/9.0 : tar xf dbvisit-standby9.0.02-el7.tar

      oracle@oel7clus1 ~/9.0 : ls
      dbvisit  dbvisit-standby9.0.02-el7.tar  dbvisit-standby9.0.02-el7.zip  INSTALL.txt  README.txt

      oracle@oel7clus1 ~/9.0 : cd dbvisit/installer/

      oracle@oel7clus1 ~/9.0/dbvisit/installer : ./install-dbvisit

      -----------------------------------------------------------
          Welcome to the Dbvisit software installer.
      -----------------------------------------------------------

          It is recommended to make a backup of our current Dbvisit software
          location (Dbvisit Base location) for rollback purposes.

          Installer Directory /home/oracle/9.0/dbvisit

      >>> Please specify the Dbvisit installation directory (Dbvisit Base).

          The various Dbvisit products and components - such as Dbvisit Standby,
          Dbvisit Dbvnet will be installed in the appropriate subdirectories of
          this path.

          Enter a custom value or press ENTER to accept default [/usr/dbvisit]:
           > /u02/dbvisit
          DBVISIT_BASE = /u02/dbvisit

          -----------------------------------------------------------
          Component      Installer Version   Installed Version
          -----------------------------------------------------------
          standby        9.0.02_0_gbd40c486                                not installed
          dbvnet         9.0.02_0_gbd40c486                                not installed
          dbvagent       9.0.02_0_gbd40c486                                not installed
          dbvserver      9.0.02_0_gbd40c486                                not installed
          observer       1.02                                              not installed

          -----------------------------------------------------------

          What action would you like to perform?
             1 - Install component(s)
             2 - Uninstall component(s)
             3 - Exit

          Your choice: 1

          Choose component(s):
             1 - Core Components (Dbvisit Standby Cli, Dbvnet, Dbvagent)
             2 - Dbvisit Standby Core (Command Line Interface)
             3 - Dbvnet (Dbvisit Network Communication)
             4 - Dbvagent (Dbvisit Agent)
             5 - Dbvserver (Dbvisit Central Console) - Not available on Solaris/AIX
             6 - Dbvisit Observer (Automatic Failover Option) - Not available on Solaris/AIX
          Press ENTER to exit Installer

          Your choice: 1

      -----------------------------------------------------------
          Summary of the Dbvisit STANDBY configuration
      -----------------------------------------------------------
          DBVISIT_BASE /u02/dbvisit

          Press ENTER to continue

      -----------------------------------------------------------
          About to configure DBVISIT DBVNET
      -----------------------------------------------------------

      >>> Please specify the Local host name to be used by Dbvnet on this server.

          Dbvnet will be listening on the local IP Address on this server which
          resolve to the host name specified here.
          If using a cluster or virtual IP make sure the host name or alias
          specified here resolve to the IP address local to where dbvnet is
          installed.  The host name should resolve to IPv4 address, if not
          you can use an IPv4 IP address instead of host name.

          Enter a custom value or press ENTER to accept default [oel7clus1]:
           > oel7clus-dbvip

      >>> Please specify the Local Dbvnet PORT to be used.

          Dbvnet will be listening on the specified port for incoming connections
          from remote dbvnet connections.  Please make sure that this port is not
          already in use or blocked by any firewall.  You may choose any value
          between 1024 and 65535, however the default of 7890 is recommended.

          Enter a custom value or press ENTER to accept default [7890]:
           > 7890


      >>> Please specify the Remote host name to be used by Dbvnet.

          By default Dbvnet will use this remote hostname for any remote
          connections.  Dbvnet must be installed and configured on the specified
          remote host. If using a cluster or virtual IP make sure the host name
          or alias specified here resolve to the IP address local to where dbvnet
          is installed.
          If you are unsure about the remote host name during installation, use
          the default value which will be the current local hostname.
          The host name should resolve to IPv4 address, if not
          you can use an IPv4 IP address instead of host name.

          Enter a custom value or press ENTER to accept default [oel7clus1]:
           > oel7fs1


      >>> Please specify the Remote Dbvnet PORT to be used.

          Dbvnet will connect to the remote server on this specified port.
          On the remote host Dbvnet will be listening on the specified port for
          incoming connections. Please make sure that this port is not already in
          use or blocked by any firewall.  You may choose any value between 1024
          and 65535, however the default of 7890 is recommended.

          Enter a custom value or press ENTER to accept default [7890]:
           > 7890


      >>> Please specify the Dbvnet Passphrase to be used for secure connections.

          The passphrase provided must be the same in both the local and remote
          Dbvnet installations.  It is used to establish a secure (encrypted)
          Dbvnet connections

          Enter a custom value:
           > kiwi123

      -----------------------------------------------------------
          Summary of the Dbvisit DBVNET configuration
      -----------------------------------------------------------
          DBVISIT_BASE /u02/dbvisit
          DBVNET_LOCAL_HOST oel7clus-dbvip
          DBVNET_LOCAL_PORT 7890
          DBVNET_REMOTE_HOST oel7fs1
          DBVNET_REMOTE_PORT 7890
          DBVNET_PASSPHRASE kiwi123

          Press ENTER to continue

      -----------------------------------------------------------
          About to configure DBVISIT DBVAGENT
      -----------------------------------------------------------


      >>> Please specify the host name to be used for the Dbvisit Agent.

          The Dbvisit Agent (Dbvagent) will be listening on this local address.
          If you are using the Dbvserver (GUI) - connections from the GUI will be
          established to the Dbvisit Agent. The Dbvisit Agent address must be
          visible from the Dbvserver (GUI) installation.
          If using a cluster or virtual IP make sure the host name or alias
          specified here resolve to the IP address local to where dbvnet is
          installed.
          The host name should resolve to IPv4 address, if not you can use
          an IPv4 IP address instead of host name.

          Enter a custom value or press ENTER to accept default [oel7clus1]:
           > oel7clus-dbvip


      >>> Please specify the listening PORT number for Dbvagent.

          The Dbvisit Agent (Dbvagent) will be listening on the specified port for
          incoming requests from the GUI (Dbvserver).  Please make sure that this
          port is not already in use or blocked by any firewall.  You may choose
          any value between 1024 and 65535, however the default of 7891 is
          recommended.

          Enter a custom value or press ENTER to accept default [7891]:
           > 7891


      >>> Please specify passphrase for Dbvagent

          Each Dbvisit Agent must have a passpharse specified.  This passphrase
          does not have to match between all the servers.  It will be used to
          establish a secure connection between the GUI (Dbvserver) and the
          Dbvisit Agent.

          Enter a custom value:
           > kiwi123

      -----------------------------------------------------------
          Summary of the Dbvisit DBVAGENT configuration
      -----------------------------------------------------------
          DBVISIT_BASE /u02/dbvisit
          DBVAGENT_LOCAL_HOST oel7clus-dbvip
          DBVAGENT_LOCAL_PORT 7891
          DBVAGENT_PASSPHRASE kiwi123

          Press ENTER to continue

      -----------------------------------------------------------
          About to install Dbvisit STANDBY
      -----------------------------------------------------------
          NTF repo installed.
          Component standby installed.

      -----------------------------------------------------------
          About to install Dbvisit DBVNET
      -----------------------------------------------------------
          Component dbvnet installed.

      -----------------------------------------------------------
          About to install Dbvisit DBVAGENT
      -----------------------------------------------------------
          Component dbvagent installed.

          -----------------------------------------------------------
          Component      Installer Version   Installed Version
          -----------------------------------------------------------
          standby        9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvnet         9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvagent       9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvserver      9.0.02_0_gbd40c486                                not installed
          observer       1.02                                              not installed

          -----------------------------------------------------------

          What action would you like to perform?
             1 - Install component(s)
             2 - Uninstall component(s)
             3 - Exit

          Your choice: 3

      >>> Installation completed
          Install log /tmp/dbvisit_install.log.201909101237.

      oracle@oel7clus1 ~/9.0/dbvisit/installer : cd /u02/dbvisit

      oracle@oel7clus1 /u02/dbvisit : ls
      dbvagent  dbvnet  standby

      oracle@oel7clus1 /u02/dbvisit : tree -d .
      .
      ├── dbvagent
      │   ├── conf
      │   ├── doc
      │   ├── log
      │   └── tmp
      ├── dbvnet
      │   ├── conf
      │   ├── doc
      │   └── log
      └── standby
          ├── conf
          ├── doc
          ├── gs
          ├── lib
          ├── log
          ├── pid
          ├── tmp
          └── trace

      18 directories
      oracle@oel7clus1 /u02/dbvisit :


  4. Now we have Dbvisit Standby installed on the shared storage, we can test by starting the Dbvagent and Dbvnet components:
    oracle@oel7clus1 /u02/dbvisit : cd dbvnet
    oracle@oel7clus1 /u02/dbvisit/dbvnet : ./dbvnet -d start
    Dbvnet daemon started.

    oracle@oel7clus1 /u02/dbvisit/dbvnet : cd ../dbvagent/
    oracle@oel7clus1 /u02/dbvisit/dbvagent : ./dbvagent -d start
    Dbvagent daemon started.

    oracle@oel7clus1 /u02/dbvisit/dbvagent : ps -ef|egrep 'dbvnet|dbvagent' |grep -v grep
    oracle   32446     1  0 12:44 ?        00:00:00 ./dbvnet -d start
    oracle   32569     1  0 12:44 ?        00:00:00 ./dbvagent -d start


  5. Next we need to install Dbvisit Standby on the Standby server, in this case it is called "oel7fs1" - it is a standalone server with Oracle Database 19c SE2 installed.
    • The steps are similar to above, but in this case we also install the Web server component - Dbvserver.
    • Note: in 9.0.02 we introduced the automatic failover option, this option is not installed in this configuration.
    • Example installation steps:
      oracle@oel7fs1 ~/9.0 : ls -ld /usr/dbvisit
      drwxr-xr-x. 2 oracle oinstall 4096 Sep 10 09:46 /usr/dbvisit

      oracle@oel7fs1 ~/9.0 : ls -l
      total 81572
      -rw-r--r--. 1 oracle oinstall 83529352 Sep 10 12:48 dbvisit-standby9.0.02-el7.zip

      oracle@oel7fs1 ~/9.0 : unzip dbvisit-standby9.0.02-el7.zip
      Archive:  dbvisit-standby9.0.02-el7.zip
        inflating: dbvisit-standby9.0.02-el7.tar

      oracle@oel7fs1 ~/9.0 : tar xf dbvisit-standby9.0.02-el7.tar

      oracle@oel7fs1 ~/9.0 : cd dbvisit/installer/

      oracle@oel7fs1 ~/9.0/dbvisit/installer : ./install-dbvisit

      -----------------------------------------------------------
          Welcome to the Dbvisit software installer.
      -----------------------------------------------------------

          It is recommended to make a backup of our current Dbvisit software
          location (Dbvisit Base location) for rollback purposes.

          Installer Directory /home/oracle/9.0/dbvisit

      >>> Please specify the Dbvisit installation directory (Dbvisit Base).

          The various Dbvisit products and components - such as Dbvisit Standby,
          Dbvisit Dbvnet will be installed in the appropriate subdirectories of
          this path.

          Enter a custom value or press ENTER to accept default [/usr/dbvisit]:
           >
          DBVISIT_BASE = /usr/dbvisit

          -----------------------------------------------------------
          Component      Installer Version   Installed Version
          -----------------------------------------------------------
          standby        9.0.02_0_gbd40c486                                not installed
          dbvnet         9.0.02_0_gbd40c486                                not installed
          dbvagent       9.0.02_0_gbd40c486                                not installed
          dbvserver      9.0.02_0_gbd40c486                                not installed
          observer       1.02                                              not installed

          -----------------------------------------------------------

          What action would you like to perform?
             1 - Install component(s)
             2 - Uninstall component(s)
             3 - Exit

          Your choice: 1

          Choose component(s):
             1 - Core Components (Dbvisit Standby Cli, Dbvnet, Dbvagent)
             2 - Dbvisit Standby Core (Command Line Interface)
             3 - Dbvnet (Dbvisit Network Communication)
             4 - Dbvagent (Dbvisit Agent)
             5 - Dbvserver (Dbvisit Central Console) - Not available on Solaris/AIX
             6 - Dbvisit Observer (Automatic Failover Option) - Not available on Solaris/AIX
          Press ENTER to exit Installer

          Your choice: 1

      -----------------------------------------------------------
          Summary of the Dbvisit STANDBY configuration
      -----------------------------------------------------------
          DBVISIT_BASE /usr/dbvisit

          Press ENTER to continue

      -----------------------------------------------------------
          About to configure DBVISIT DBVNET
      -----------------------------------------------------------

      >>> Please specify the Local host name to be used by Dbvnet on this server.

          Dbvnet will be listening on the local IP Address on this server which
          resolve to the host name specified here.
          If using a cluster or virtual IP make sure the host name or alias
          specified here resolve to the IP address local to where dbvnet is
          installed.  The host name should resolve to IPv4 address, if not
          you can use an IPv4 IP address instead of host name.

          Enter a custom value or press ENTER to accept default [oel7fs1]:
           > oel7fs1

      >>> Please specify the Local Dbvnet PORT to be used.

          Dbvnet will be listening on the specified port for incoming connections
          from remote dbvnet connections.  Please make sure that this port is not
          already in use or blocked by any firewall.  You may choose any value
          between 1024 and 65535, however the default of 7890 is recommended.

          Enter a custom value or press ENTER to accept default [7890]:
           > 7890


      >>> Please specify the Remote host name to be used by Dbvnet.

          By default Dbvnet will use this remote hostname for any remote
          connections.  Dbvnet must be installed and configured on the specified
          remote host. If using a cluster or virtual IP make sure the host name
          or alias specified here resolve to the IP address local to where dbvnet
          is installed.
          If you are unsure about the remote host name during installation, use
          the default value which will be the current local hostname.
          The host name should resolve to IPv4 address, if not
          you can use an IPv4 IP address instead of host name.

          Enter a custom value or press ENTER to accept default [oel7fs1]:
           > oel7clus-dbvip


      >>> Please specify the Remote Dbvnet PORT to be used.

          Dbvnet will connect to the remote server on this specified port.
          On the remote host Dbvnet will be listening on the specified port for
          incoming connections. Please make sure that this port is not already in
          use or blocked by any firewall.  You may choose any value between 1024
          and 65535, however the default of 7890 is recommended.

          Enter a custom value or press ENTER to accept default [7890]:
           > 7890


      >>> Please specify the Dbvnet Passphrase to be used for secure connections.

          The passphrase provided must be the same in both the local and remote
          Dbvnet installations.  It is used to establish a secure (encrypted)
          Dbvnet connections

          Enter a custom value:
           > kiwi123

      -----------------------------------------------------------
          Summary of the Dbvisit DBVNET configuration
      -----------------------------------------------------------
          DBVISIT_BASE /usr/dbvisit
          DBVNET_LOCAL_HOST oel7fs1
          DBVNET_LOCAL_PORT 7890
          DBVNET_REMOTE_HOST oel7clus-dbvip
          DBVNET_REMOTE_PORT 7890
          DBVNET_PASSPHRASE kiwi123

          Press ENTER to continue

      -----------------------------------------------------------
          About to configure DBVISIT DBVAGENT
      -----------------------------------------------------------


      >>> Please specify the host name to be used for the Dbvisit Agent.

          The Dbvisit Agent (Dbvagent) will be listening on this local address.
          If you are using the Dbvserver (GUI) - connections from the GUI will be
          established to the Dbvisit Agent. The Dbvisit Agent address must be
          visible from the Dbvserver (GUI) installation.
          If using a cluster or virtual IP make sure the host name or alias
          specified here resolve to the IP address local to where dbvnet is
          installed.
          The host name should resolve to IPv4 address, if not you can use
          an IPv4 IP address instead of host name.

          Enter a custom value or press ENTER to accept default [oel7fs1]:
           > oel7fs1


      >>> Please specify the listening PORT number for Dbvagent.

          The Dbvisit Agent (Dbvagent) will be listening on the specified port for
          incoming requests from the GUI (Dbvserver).  Please make sure that this
          port is not already in use or blocked by any firewall.  You may choose
          any value between 1024 and 65535, however the default of 7891 is
          recommended.

          Enter a custom value or press ENTER to accept default [7891]:
           > 7891


      >>> Please specify passphrase for Dbvagent

          Each Dbvisit Agent must have a passpharse specified.  This passphrase
          does not have to match between all the servers.  It will be used to
          establish a secure connection between the GUI (Dbvserver) and the
          Dbvisit Agent.

          Enter a custom value:
           > kiwi123

      -----------------------------------------------------------
          Summary of the Dbvisit DBVAGENT configuration
      -----------------------------------------------------------
          DBVISIT_BASE /usr/dbvisit
          DBVAGENT_LOCAL_HOST oel7fs1
          DBVAGENT_LOCAL_PORT 7891
          DBVAGENT_PASSPHRASE kiwi123

          Press ENTER to continue

      -----------------------------------------------------------
          About to install Dbvisit STANDBY
      -----------------------------------------------------------
          NTF repo installed.
          Component standby installed.

      -----------------------------------------------------------
          About to install Dbvisit DBVNET
      -----------------------------------------------------------
          Component dbvnet installed.

      -----------------------------------------------------------
          About to install Dbvisit DBVAGENT
      -----------------------------------------------------------
          Component dbvagent installed.

          -----------------------------------------------------------
          Component      Installer Version   Installed Version
          -----------------------------------------------------------
          standby        9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvnet         9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvagent       9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvserver      9.0.02_0_gbd40c486                                not installed
          observer       1.02                                              not installed

          -----------------------------------------------------------

          What action would you like to perform?
             1 - Install component(s)
             2 - Uninstall component(s)
             3 - Exit

          Your choice: 1

          Choose component(s):
             1 - Core Components (Dbvisit Standby Cli, Dbvnet, Dbvagent)
             2 - Dbvisit Standby Core (Command Line Interface)
             3 - Dbvnet (Dbvisit Network Communication)
             4 - Dbvagent (Dbvisit Agent)
             5 - Dbvserver (Dbvisit Central Console) - Not available on Solaris/AIX
             6 - Dbvisit Observer (Automatic Failover Option) - Not available on Solaris/AIX
          Press ENTER to exit Installer

          Your choice: 5

      -----------------------------------------------------------
          About to configure DBVISIT DBVSERVER
      -----------------------------------------------------------


      >>> Please specify the host name to be used for Dbvserver


          The Dbvisit Web Server (Dbvserver) will be listening on this local
          address. If using a cluster or virtual IP make sure the host name or
          alias specified here resolve to the IP address local to where Dbvserver
          is installed.
          If you are unsure about the remote host name during installation, use
          the default value which will be the current local hostname.
          The host name should resolve to IPv4 address, if not you can use
          an IPv4 IP address instead of host name.

          Enter a custom value or press ENTER to accept default [oel7fs1]:
           > oel7fs1


      >>> Please specify the listening port number for Dbvserver on the local server

          You may choose any value between 1024 and 65535.  The default recommended
          value is 4433.

          Note: if you can not access this port after the installation has
          finished, then please double-check your server firewall settings
          to ensure the selected port is open.
          Enter a custom value or press ENTER to accept default [4433]:
           > 4433


      >>> Please specify the host name (or IPv4 address) to be used for Dbvserver public interface


          In most cases this will be the same as the listener address, if not sure
          use the same value as the listener address.

          The Dbvisit Web Server (Dbvserver) will be listening on the local
          listener address. The public address can be set to an external IP
          example a firewall address in case the Central Console (Dbvserver)
          and agents (Primary and Standby Database servers) have a firewall
          inbetween them.  The public interface address will be passed to
          the agents during communication for sending information back.
          If you are unsure about the public host address, use
          the default value which will be the current local hostname.
          The host name should resolve to IPv4 address, if not you can use
          an IPv4 IP address instead of host name.
          Enter a custom value or press ENTER to accept default [oel7fs1]:
           > oel7fs1

      -----------------------------------------------------------
          Summary of the Dbvisit DBVSERVER configuration
      -----------------------------------------------------------
          DBVISIT_BASE /usr/dbvisit
          DBVSERVER_LOCAL_HOST oel7fs1
          DBVSERVER_LOCAL_PORT 4433
          DBVSERVER_PUBLIC_HOST oel7fs1

          Press ENTER to continue

      -----------------------------------------------------------
          About to install Dbvisit DBVSERVER
      -----------------------------------------------------------
          Component dbvserver installed.

          -----------------------------------------------------------
          Component      Installer Version   Installed Version
          -----------------------------------------------------------
          standby        9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvnet         9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvagent       9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          dbvserver      9.0.02_0_gbd40c486                                9.0.02_0_gbd40c486
          observer       1.02                                              not installed

          -----------------------------------------------------------

          What action would you like to perform?
             1 - Install component(s)
             2 - Uninstall component(s)
             3 - Exit

          Your choice: 3

      >>> Installation completed
          Install log /tmp/dbvisit_install.log.201909101248.
      oracle@oel7fs1 ~/9.0/dbvisit/installer :

      oracle@oel7fs1 ~/9.0/dbvisit/installer : cd /usr/dbvisit

      oracle@oel7fs1 /usr/dbvisit : ls
      dbvagent  dbvnet  dbvserver  standby

      oracle@oel7fs1 /usr/dbvisit : tree -d .
      .
      ├── dbvagent
      │   ├── conf
      │   ├── doc
      │   ├── log
      │   └── tmp
      ├── dbvnet
      │   ├── conf
      │   ├── doc
      │   └── log
      ├── dbvserver
      │   ├── conf
      │   ├── doc
      │   └── log
      └── standby
          ├── conf
          ├── doc
          ├── gs
          ├── lib
          ├── log
          ├── pid
          ├── tmp
          └── trace

      22 directories

      oracle@oel7fs1 /usr/dbvisit : cd dbvnet
      oracle@oel7fs1 /usr/dbvisit/dbvnet : ./dbvnet -d start
      Dbvnet daemon started.

      oracle@oel7fs1 /usr/dbvisit/dbvnet : cd ../dbvagent
      oracle@oel7fs1 /usr/dbvisit/dbvagent : ./dbvagent -d start
      Dbvagent daemon started.

      oracle@oel7fs1 /usr/dbvisit/dbvagent : cd ../dbvserver
      oracle@oel7fs1 /usr/dbvisit/dbvserver : ./dbvserver -d start
      Dbvserver daemon started.

      oracle@oel7fs1 /usr/dbvisit/dbvserver :
  6. You will also notice in the last steps above we started the Dbvisit Standby components (dbvnet, dbvagent and dbvserver).
  7. Next we can now navigate to the Dbvisit Standby GUI (Central Console) to create a new Dbvisit Standby Configuration (DDC) and then the Standby Database.
  8. Here are a few extracts to explain the configuration.  Please note for more details on adding hosts, creating the configuration and the standby database, please see the Dbvisit Standby documentation.


  • Host Overview:


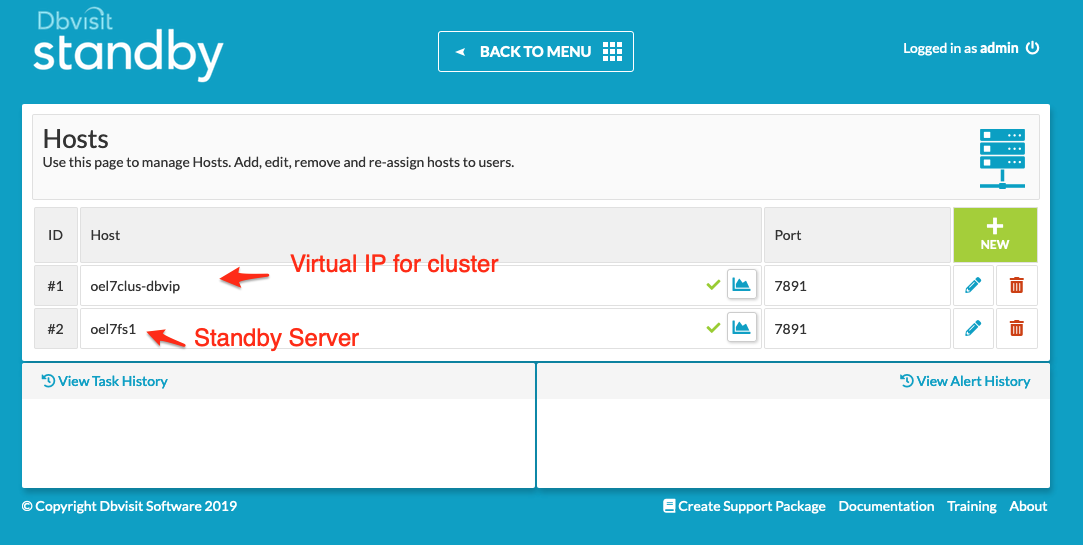

  • DDC Configuration:

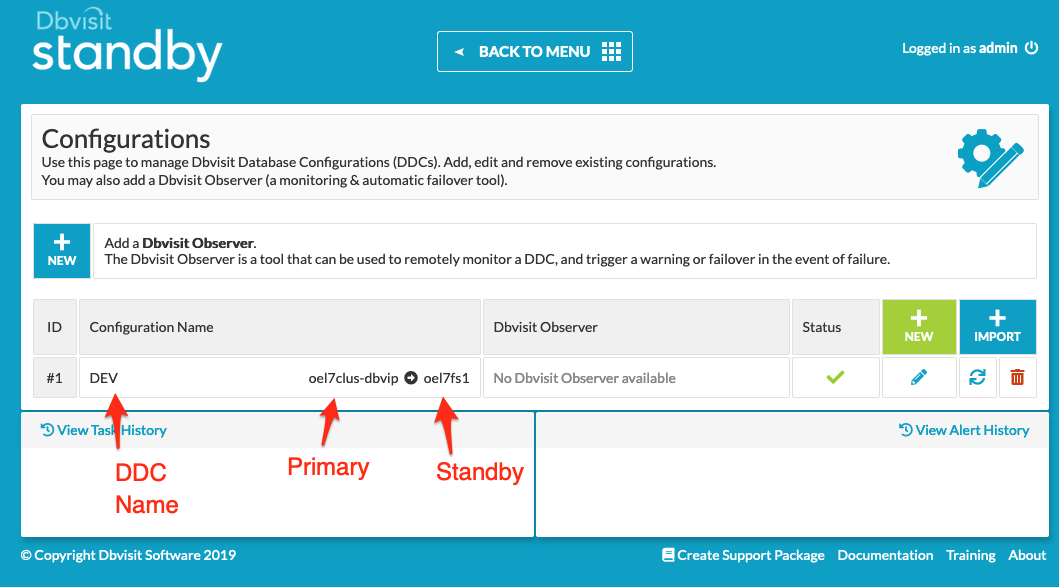

    • Now remember the primary is a cluster and shared storage is used.  Dbvisit Standby was installed in /u02/dbvisit and on the standby we installed into the default /usr/dbvisit
    • Remember during the DDC creation that you pick the correct DBVISIT_BASE and ORACLE_HOME values as the primary and standby may be different


  • Standby Database Creation:
    • Follow the standard procedure to create the standby database.  Now my standby server filesystem look like below:
    • aelsnz@oel7fs1 ~ : df -h
      Filesystem                   Size  Used Avail Use% Mounted on
      devtmpfs                     1.4G     0  1.4G   0% /dev
      tmpfs                        1.4G     0  1.4G   0% /dev/shm
      tmpfs                        1.4G  8.6M  1.4G   1% /run
      tmpfs                        1.4G     0  1.4G   0% /sys/fs/cgroup
      /dev/sda3                    6.3G  3.9G  2.2G  65% /
      /dev/sda1                    488M  278M  175M  62% /boot
      tmpfs                        271M     0  271M   0% /run/user/0
      tmpfs                        271M     0  271M   0% /run/user/1000
      /dev/mapper/oravg-orahomelv   30G  7.1G   21G  26% /u01
      /dev/mapper/oravg-oradblv     20G   65M   19G   1% /u02


    • Now the Oracle Home is /u01/app/oracle/product/19.3.0/dbhome_1
    • The database will be stored in /u02 and making use of Oracle Managed Files (OMF) - so the following locations are used:
      • db_create_file_dest = /u02/oracle/oradata
      • fast_recovery_area = /u02/oracle/fast_recovery_area

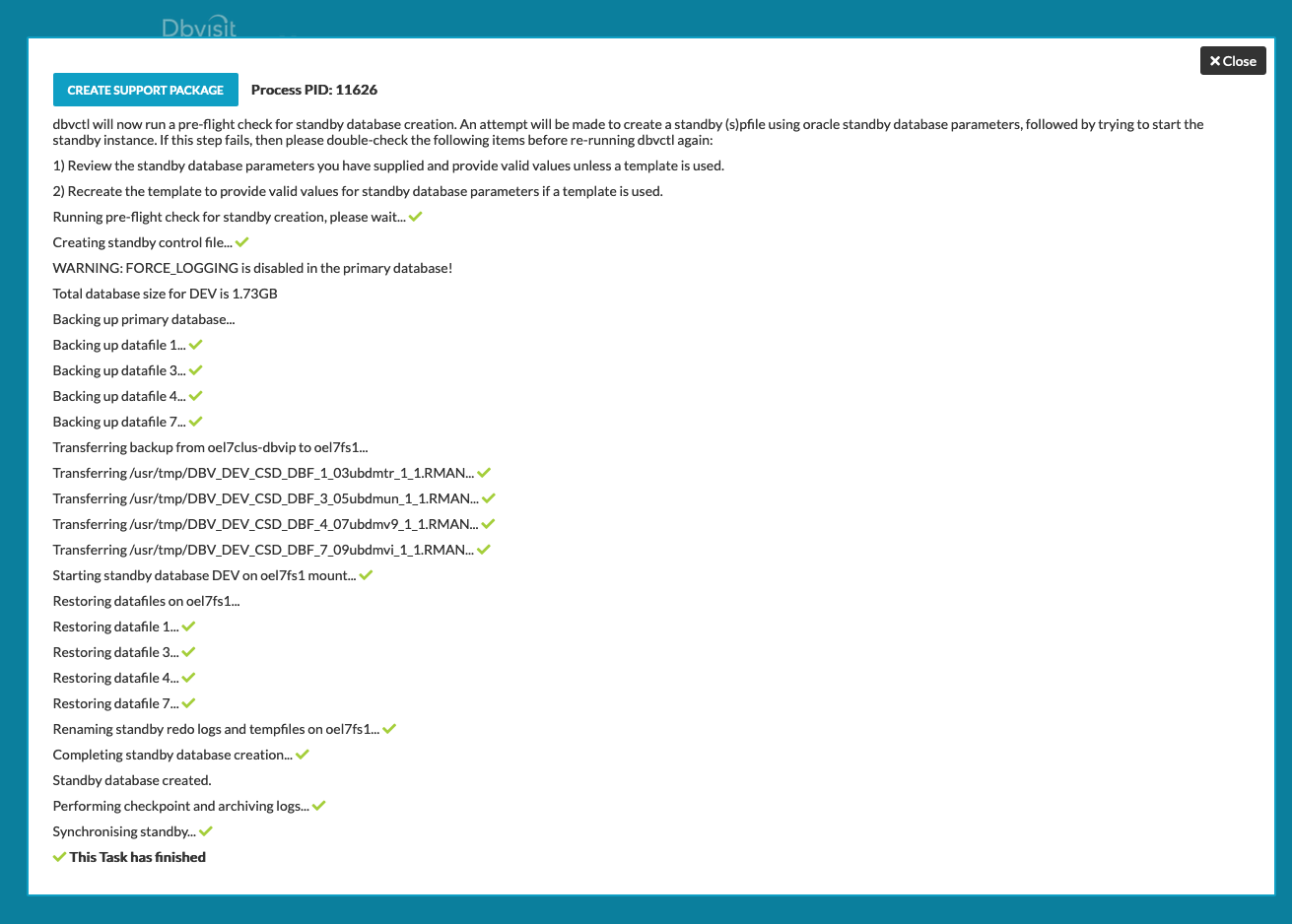

    • Once the standby database creation is complete I have the following task details:

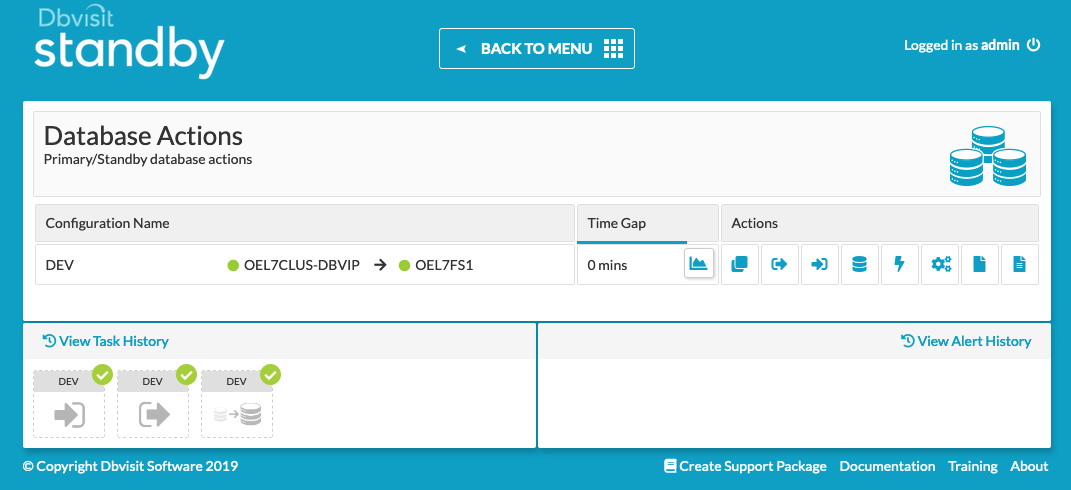

    • Now that a fully functional primary/standby configuration in Dbvisit Standby, below are just a sample of the Database Actions screen where I showed that logs were shipped and applied.


Step 11:  Adding Dbvnet and Dbvagent as Cluster Resources

The next step is to add Dbvnet and Dbvagent as cluster resources with a dependancy on the cluster virtual IP created earlier.

This can be done by adding an action script for Dbvnet and Dbvagent and then adding them as cluster resources.

Here are two sample scripts:

dbvnet-crs.sh

#!/usr/bin/bash
# set -x
#
# Dbvnet Action Script

##############################################
#  Function to change database environments
# Description:
# Use oraenv to set the environment if needed
# This is optional to set the environment
##############################################

## set following to ensure oraenv is picked up from /usr/local/bin
export PATH=/usr/local/bin:$PATH
NUM=0

set_env ()
{
  export ORAENV_ASK=NO
  export ORACLE_SID=$1
  . oraenv >> /dev/null
  export ORAENV_ASK=YES
  export USER=oracle
}

#################
## Main Section
#################

# This is logged to CRSD agent log file
echo "`date` Action script '$_CRS_ACTION_SCRIPT' for resource [$_CRS_NAME] called for action $1"

# set environment
set_env QA
cd /u02/dbvisit/dbvnet


case "$1" in
     'start')
           ./dbvnet -d start
           RET=0
           echo "Running start dbvnet resource with return code $RET"
     ;;

     'stop')
           NUM=`ps -ef | grep dbvnet | egrep -v 'grep|dbvnet-crs|resource' | wc -l`
           if [ $NUM = 0 ]; then
             ## do a cleanup of pid
             ./dbvnet -d stop
             RET=0
           else
             ## now stop the dbvnet
             ./dbvnet -d stop
             NUM=`ps -ef | grep dbvnet | grep -v grep | wc -l`
             if [ $NUM = 0 ]; then
               RET=0
             else
               RET=1
             fi
           fi
           echo "Running stop dbvnet resource with return code $RET"
     ;;

     'check')
           NUM=`ps -ef | grep dbvnet | egrep -v 'grep|dbvnet-crs|resource' | wc -l`
           if [ $NUM = 0 ]; then
             ## return code 1 for check means OFFLINE
             RET=1
           else
             ## return code 0 for check means ONLINE
             RET=0
           fi
           echo "Running check dbvnet resource with return code $RET"
     ;;

     'clean')
           for c1 in `ps -ef|grep dbvnet |egrep -v 'grep|dbvnet-crs|resource'| awk '{print $2}'` ;
           do
             echo "...force kill dbvnet pid $c1"
             kill -9 $c1
           done
           ## do some cleanup
           ./dbvnet -d stop
           RET=0
           echo "Running clean dbvnet resource with return code $RET"
     ;;
     *)
       echo "Usage: ./dbvnet-csr.sh start|stop|clean|clean"
       RET=0
     ;;
esac

if [ $RET -eq 0 ]; then
  exit 0
else
  exit 1
fi


dbvagent-crs.sh

#!/usr/bin/bash
# set -x
#
# Dbvnet Action Script

##############################################
#  Function to change database environments
# Description:
# Use oraenv to set the environment if needed
# This is optional to set the environment
##############################################

## set following to ensure oraenv is picked up from /usr/local/bin
export PATH=/usr/local/bin:$PATH
NUM=0

set_env ()
{
  export ORAENV_ASK=NO
  export ORACLE_SID=$1
  . oraenv >> /dev/null
  export ORAENV_ASK=YES
  export USER=oracle
}

#################
## Main Section
#################

# This is logged to CRSD agent log file
echo "`date` Action script '$_CRS_ACTION_SCRIPT' for resource [$_CRS_NAME] called for action $1"

# set environment
set_env QA
cd /u02/dbvisit/dbvagent


case "$1" in
     'start')
           ./dbvagent -d start
           RET=0
           echo "Running start dbvagent resource with return code $RET"
     ;;

     'stop')
           NUM=`ps -ef | grep dbvagent | egrep -v 'grep|dbvagent-crs|resource' | wc -l`
           if [ $NUM = 0 ]; then
             ## do a cleanup of pid
             ./dbvagent -d stop
             RET=0
           else
             ## now stop the dbvagent
             ./dbvagent -d stop
             NUM=`ps -ef | grep dbvagent | grep -v grep | wc -l`
             if [ $NUM = 0 ]; then
               RET=0
             else
               RET=1
             fi
           fi
           echo "Running stop dbvagent resource with return code $RET"
     ;;

     'check')
           NUM=`ps -ef | grep dbvagent | egrep -v 'grep|dbvagent-crs|resource' | wc -l`
           if [ $NUM = 0 ]; then
             ## return code 1 for check means OFFLINE
             RET=1
           else
             ## return code 0 for check means ONLINE
             RET=0
           fi
           echo "Running check dbvagent resource with return code $RET"
     ;;

     'clean')
           for c1 in `ps -ef|grep dbvagent |egrep -v 'grep|dbvagent-crs|resource'| awk '{print $2}'` ;
           do
             echo "...force kill dbvagent pid $c1"
             kill -9 $c1
           done
           ## do some cleanup
           ./dbvagent -d stop
           RET=0
           echo "Running clean dbvagent resource with return code $RET"
     ;;
     *)
       echo "Usage: ./dbvagent-csr.sh start|stop|check|clean"
       RET=0
     ;;
esac

if [ $RET -eq 0 ]; then
  exit 0
else
  exit 1
fi



Below is example commands of adding these two components - Note that while doing this you have to stop dbvnet and dbvagent, then after adding them as cluster resources, you can start them using the crsctl start resource command.

crsctl add resource dbvnet -type cluster_resource -attr "ACTION_SCRIPT=/u02/dbvisit/dbvnet/dbvnet-crs.sh, RESTART_ATTEMPTS=3, START_TIMEOUT=60, STOP_TIMEOUT=60, CHECK_INTERVAL=10,
          START_DEPENDENCIES='hard(oel7clus-dbvip) pullup(oel7clus-dbvip)'
         ,STOP_DEPENDENCIES='hard(oel7clus-dbvip)'
          ACL='owner:oracle:rwx,pgrp:oinstall:rwx,other::r--'
          PLACEMENT='favored'
          HOSTING_MEMBERS='oel7clus1'"


crsctl add resource dbvagent -type cluster_resource -attr "ACTION_SCRIPT=/u02/dbvisit/dbvagent/dbvagent-crs.sh, RESTART_ATTEMPTS=3, START_TIMEOUT=60, STOP_TIMEOUT=60, CHECK_INTERVAL=10,
          START_DEPENDENCIES='hard(oel7clus-dbvip) pullup(oel7clus-dbvip)'
         ,STOP_DEPENDENCIES='hard(oel7clus-dbvip)'
          ACL='owner:oracle:rwx,pgrp:oinstall:rwx,other::r--'
          PLACEMENT='favored'
          HOSTING_MEMBERS='oel7clus1'"


Step 12:  Adding a Pre/Post Processing script

One important step you will need to perform is to add a Dbvisit Standby pre/post-processing script.  This is a script that gets executed prior to or after certain Dbvisit Functions.  Example, if you are performing a Graceful Switchover and you want to perform certain tasks prior or after the switchover, like moving application connection details or updating DNS or anything can script, you can use this script to help you achieve this.

Now, why do you need one in this scenario you may ask, well the Database Resource created above DEV.db is now going to automatically failover or restart if you perform an SQLPLUS or RMAN restart of the database and not use the Cluster Resource command (crsctl start|stop resource DEV.db).

This becomes important when you want to perform a Graceful Switchover, during which the primary database is stopped and converted to a standby.  Now if you do not disable the cluster resource during this operation, Clusterware will attempt to restart the database or will fail-over to the second node.

Now, this can easily be avoided by setting the cluster resource attribute ENABLED=0 and then once the Graceful Switchover is complete set it back to one.

This can easily be done by a pre/post-processing script.  Now a sample is provided in the DBVISIT_BASE/doc subfolder of any installation.  You can take this file move it to shared storage in the cluster - we recommend DBVISIT_BASE/standby or DBVISIT_BASE/conf

Here is a short extract of this script in the above example, showing the setting of the resource to ENABLED=0


#!/bin/bash
#
# Description:
# ===========
# This script is provided by Dbvisit Software Limited as an example
# pre/post processing script.  This script can be used to perform
# custom tasks (pre) before Dbvisit Standby execute, or (post) following
# a successful execution.
#
# NOTE: This script is a basic template and you will need to add custom code
# to this script to perform the required tasks you want to perform as
# part of pre or post dbvisit processing.
#
# This script should be added to the Dbvisit Database Configuration (DDC) file
# Example: PRE_POST_PROCESSING=/usr/local/bin/pre-post-dbvisit.sh
#
# Dbvisit STandby will pass two parameters to this script
#  Parameter 1 can be one of two possible values:  [pre|post]
#  Parameter 2 can be one number from 1 to 8:  [1|2|3|4|5|6|7|8]
#
# Usage:  ./pre-post-dbvisit.sh [pre|post] [1|2|3|4|5|6|7|8]
#
# Example: ./pre-post-dbvisit.sh pre 1
#
# Parameter explanation:
# =====================
#  pre  = Pre Dbvisit Processing step
#  post = Post Dbvisit Processing step
#  1	= Dbvisit is executed on primary and will be sending logs to standby
#  2	= Dbvisit is executed on standby and will be applying logs
#  3	= Dbvisit Graceful Switchover is executed on primary
#  4	= Dbvisit Graceful Switchover is executed on standby
#  5	= Dbvisit Activation is executed on standby
#  6  = Standby Database is opened read-only
#  7  = Dbvisit Create Standby Database is executed on primary (post only)
#  8  = Dbvisit Create Standby Database is executed on standby (post only)
#
# Note: This script is an example only and should be tested first before
#        it is used in a production environment.
#
# To enable debugging, uncomment following line:
# set -x
#
###########################################
#  Function to echo usage
###########################################
usage ()
{
  program=`basename $0`

cat <<EOF
Usage:
   ${program} [pre|post] [1|2|3|4|5|6|7|8]
       [pre|post}      - Specify if Pre or Post processing is being performed
       [1|2|3|4|5|6|7|8] - Indicate Dbvisit operation being performed
        -h             - display the usage

        pre  = Pre Dbvisit Processing step
        post = Post Dbvisit Processing step
        1 = Dbvisit is executed on primary and will be sending logs to standby
        2 = Dbvisit is executed on standby and will be applying logs
        3 = Dbvisit Graceful Switchover is executed on primary
        4 = Dbvisit Graceful Switchover is executed on standby
        5 = Dbvisit Activation is executed on standby
        6 = Standby Database is opened read-only
        7 = Dbvisit Create Standby Database is executed on primary (post only)
        8 = Dbvisit Create Standby Database is executed on standby (post only)

   Example, to perform a task on the standby server following activation:

        ${program} post 5

EOF
exit 1

}

###########################################
#  Function to setup parameter variables
#  Description:
#    Specify any global settings in this section
###########################################
setup_parameters ()
{
  ## Below are some example values
  export PATH=$PATH:/bin:/usr/bin:/usr/local/bin
  export NLS_DATE_FORMAT='DD/MM/YYYY HH24:MI:SS'
  SERVER=`uname -n`
  dbvisit_base=/u02/dbvisit
  logfile=${dbvisit_base}/standby/log/pre-post-dbvisit.log
}

################################################
#  Function to change database environments
#  Description:
#    Use oraenv to set the environment if needed
#    This is optional to set the environment
################################################
set_env ()
{
  export ORAENV_ASK=NO
  export ORACLE_SID=$1
  . oraenv >> /dev/null
  export ORAENV_ASK=YES
}

###########################################
#  Function to Add text to logfile
###########################################
addLog()
{
  # comment 1st line below to remove echo back to user and to only write to log
  echo "`date +%d-%h-%Y:%H:%M:%S` : ${1}"
  echo "`date +%d-%h-%Y:%H:%M:%S` : ${1}" >> ${logfile}
}


### Add your custom functions here
###

disable_cluster_resource () {
   ## This example we are testing if runninig on clusterware, if resource exist
   ## disable it, as shutdown of database can cause resource to restart it again....
   server_name=`uname -n`
   if [ "${server_name}" = "dbvclus1.dbvisit.co.nz" ]; then
      set_env +ASM1
   else
      set_env +ASM2
   fi

   crsctl modify resource DEV.db -attr "ENABLED=0"

}

enable_cluster_resource () {
   ## This example we are testing if runninig on clusterware, if resource exist
   ## disable it, as shutdown of database can cause resource to restart it again....
   ## at end of operation we want to enable it again
   server_name=`uname -n`
   if [ "${server_name}" = "dbvclus1.dbvisit.co.nz" ]; then
      set_env +ASM1
   else
      set_env +ASM2
   fi

   crsctl modify resource DEV.db -attr "ENABLED=1"

}


##########################
##########################
####
#### MAIN PROGRAM SECTION
####
##########################
##########################

## First call function to set the environment or specific global variables
setup_parameters

## Test input values, must be 2 values, if not exit
if test $# -lt 2
then
  echo "Cannot execute, 2 values must be specified as input..."
  usage
  exit 99
fi


if [ ${1} = "pre" ] || [ ${1} = "post" ]
then
  if ! [[ $2 =~ ^[1-8]$ ]]
  then
     echo "2nd Parameter must be a number between 1 and 8"
     usage
     exit 97
  fi
else
  echo "1st Parameter must be \"pre\" or \"post\"";
  usage
  exit 98
fi


### Now that values are valid, execute required code block

   case ${1} in
   pre)
           addLog "Start Pre Processing"
           case ${2} in
             1)
                addLog "Primary Database Send"
                ## add custom code here or call custom function
                ;;
             2)
                addLog "Standby Database Apply"
                ## add custom code here or call custom function
                ;;
             3)
                addLog "Primary Server Graceful Switchover"
                if [ "${SERVER}" = "dbvclus1.dbvisit.co.nz" ] || [ "${SERVER}" = "dbvclus2.dbvisit.co.nz" ]; then
                  disable_cluster_resource "DEV.db"
                fi
                ## add custom code here or call custom function
                ;;
             4)
                addLog "Standby Server Graceful Switchover"
                ## add custom code here or call custom function
                if [ "${SERVER}" = "dbvclus1.dbvisit.co.nz" ] || [ "${SERVER}" = "dbvclus2.dbvisit.co.nz" ]; then
                  disable_cluster_resource "DEV.db"
                fi
                ;;
             5)
                addLog "Standby Database Activate"
                ## add custom code here or call custom function
                ;;
             6)
                addLog "Standby Database Read-Only"
                ## add custom code here or call custom function
                ;;
           esac
           ;;

   post)

           addLog "Start post Processing"
           case ${2} in
             1)
                addLog "Primary Database Send"
                ## add custom code here or call custom function
                ;;
             2)
                addLog "Standby Database Apply"
                ## add custom code here or call custom function

                # Uncomment/edit lines below to compress archive logs in ARCHDEST
                # on the standby when logs are transferred uncompressed
                # Perl script compress_archdest must be located in the same
                # directory as the pre-post processing shell script
                # Param ${3} is passed from dbvctl and is used by script
                # compress_archdest.pl

                #compress_method="/bin/gzip"

                # uncompliled script requires perl to be installed
                #perl compress_archdest.pl ${3} --compress_method "$compress_method" >> ${logfile}

                # Script compress_archdest.pl can be compiled
                #compress_archdest ${3} --compress_method "$compress_method" >> ${logfile}
                ;;
             3)
                addLog "Primary Server Graceful Switchover"
                ## add custom code here or call custom function
                if [ "${SERVER}" = "dbvclus1.dbvisit.co.nz" ] || [ "${SERVER}" = "dbvclus2.dbvisit.co.nz" ]; then
                  enable_cluster_resource "DEV.db"
                fi
                ;;
             4)
                addLog "Standby Server Graceful Switchover"
                ## add custom code here or call custom function
                addLog "Primary Server Graceful Switchover"
                if [ "${SERVER}" = "dbvclus1.dbvisit.co.nz" ] || [ "${SERVER}" = "dbvclus2.dbvisit.co.nz" ]; then
                  enable_cluster_resource "DEV.db"
                fi
                ;;
             5)
                addLog "Standby Database Activate"
                ## add custom code here or call custom function
                ;;
             6)
                addLog "Standby Database Read-Only"
                ## add custom code here or call custom function
                ;;
             7)
                addLog "Primary Server Create Standby Database"
                ## add custom code here or call custom function
                ;;
             8)
                addLog "Standby Server Create Standby Database"
                ## add custom code here or call custom function
                ;;
           esac
           ;;
   esac


Testing the pre/post processing script is easy, you can just pass in the parameters and then review the ENABLED attribute of the DEV.db resource.

Example:

oracle@dbvclus1 /u02/dbvisit/standby/conf : ./pre_post_processing.sh pre 3
11-Sep-2019:14:22:21 : Start Pre Processing
11-Sep-2019:14:22:21 : Primary Server Graceful Switchover

oracle@dbvclus1 /u02/dbvisit/standby/conf : crsctl status resource DEV.db -f|grep ENABLED
ENABLED=0


oracle@dbvclus1 /u02/dbvisit/standby/conf : ./pre_post_processing.sh post 3
11-Sep-2019:14:22:33 : Start post Processing
11-Sep-2019:14:22:33 : Primary Server Graceful Switchover

oracle@dbvclus1 /u02/dbvisit/standby/conf : crsctl status resource DEV.db -f|grep ENABLED
ENABLED=1






Have more questions? Submit a request

Comments
