Create a new Host

Hi there,.

I am new to DB Visit standby and would appreciate some help.

I have installed the DB Visit version 8 installed across two windows 2008 servers and the services are up and running on the default ports. I log onto the URL https://192.168.69.154:4433/app/splash.html which is the primary server and I can see the first Host in the Manage hosts section.  I now attempt to add the second server using the host name, Passphrase, port 7891. However I get the error Could not contact this host.

Any ideas how to diagnose this issue please? I can ping between the two nodes without any issues and there are no firewalls on these two windows servers.

 Looking at the logs I can see the followings

0170516 13:31:25 main::cmn_check_rc: error_option=nolognomail
20170516 13:31:25 main::cmn_exit: error_code=1
20170516 13:31:25 main::cmn_get_basename_file: C:\Program Files\Dbvisit\standby\log\dbvisit_install.log=>dbvisit_install.log
20170516 13:31:25 main::cmn_print:
Dbvisit Standby terminated...
Error Code: 1
Connection to Westernpowers2 failed.
No initial contact can be made or remote command cannot be run
Please check network connection and review the settings:
RSH=
DEST_SERVER=Westernpowers2
NETPORT=7890
DBVISIT_BASE=C:\Program Files\Dbvisit

Error connect: No connection could be made because the target machine actively refused
it

Tracefile from server: WESTERNPOWERS1 (PID:1820)
dbvisit_install.log
20170516 13:31:25 main::cmn_find_file_glob: file_part1=C:\Program Files\Dbvisit\Standby\tmp\1820.0.dbvisit.201705161211 file_part2=*.dbv
20170516 13:31:25 main::cmn_is_asm: file_name=C:\Program Files\Dbvisit\Standby\tmp\1820.0.dbvisit.201705161211*.dbv asm_file=0
20170516 13:31:25 main::cmn_find_file_glob: file_found_count=0
20170516 13:31:25 main::cmn_rm_files: Temp files (0) will be removed.
20170516 13:31:25 main::cmn_display_footer: =============================================================
20170516 13:31:25 main::cmn_display_footer: dbvctl ended on WESTERNPOWERS1: Tue May 16 13:31:25 2017
20170516 13:31:25 main::cmn_display_footer: =============================================================
20170516 13:31:25 main::cmn_display_footer: SUPPRESS_HEADER_FOOTER=Y
20170516 13:31:25 : final exit code=1



What do we need to do to make sure that two servers can reach each other. I can ping between the two servers and have access to net work shared between the two.

Thanks

hamid ansari Answered

Official comment

Avatar

This is typically part of the Communication setup and testing  - see reference to online document : https://dbvisit.atlassian.net/wiki/display/DS8QSG/Dbvisit+Standby+Networking+-+Dbvnet#DbvisitStandbyNetworking-Dbvnet-7.TroubleshootingDbvnet


1. Ensure the hostnames of the two Windows servers and their IP addresses are present in the hosts file on both servers - c:\Windows\System32\Drivers\etc\hosts.


2. You may have to adjust the "metric" for the specific network interface to make sure ipv4 gets higher priority.

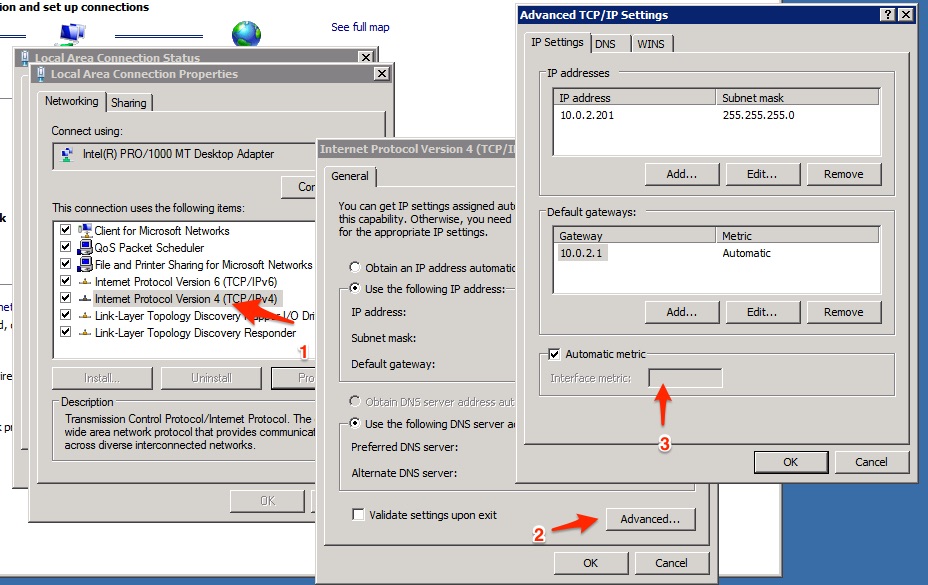

Example see attached - 3 steps to get to the metric.

Adjust the automatic setting to something like 20, then retry - restart of dbvnet will be required
You can do this on your test system standby server first - the metric change might require a windows restart to take affect.


See attached screen print

3. Once you have carried out the steps run the netstat command on both primary and standby servers.

C:\Users\Administrator> netstat -ano|findstr 7890

With expected output as :

TCP    0.0.0.0:7890           0.0.0.0:0              LISTENING       2396
TCP    172.16.1.92:7890       172.16.1.91:61319      ESTABLISHED     2396

Check the status of the ports on Primary Server
================================================
C:\Program Files\Dbvisit\Standby>netstat -ano|findstr 7890
C:\Program Files\Dbvisit\Standby>netstat -ano|findstr 7891

Check the status of the ports on Standby Server
================================================
C:\Program Files\Dbvisit\Standby>netstat -ano|findstr 7890
C:\Program Files\Dbvisit\Standby>netstat -ano|findstr 7891

4. Finally run the System Readiness test  :

C:\Program Files\Dbvisit\Standby>dbvctl.exe -f system_readiness

Charmaigne Bezuidenhout
